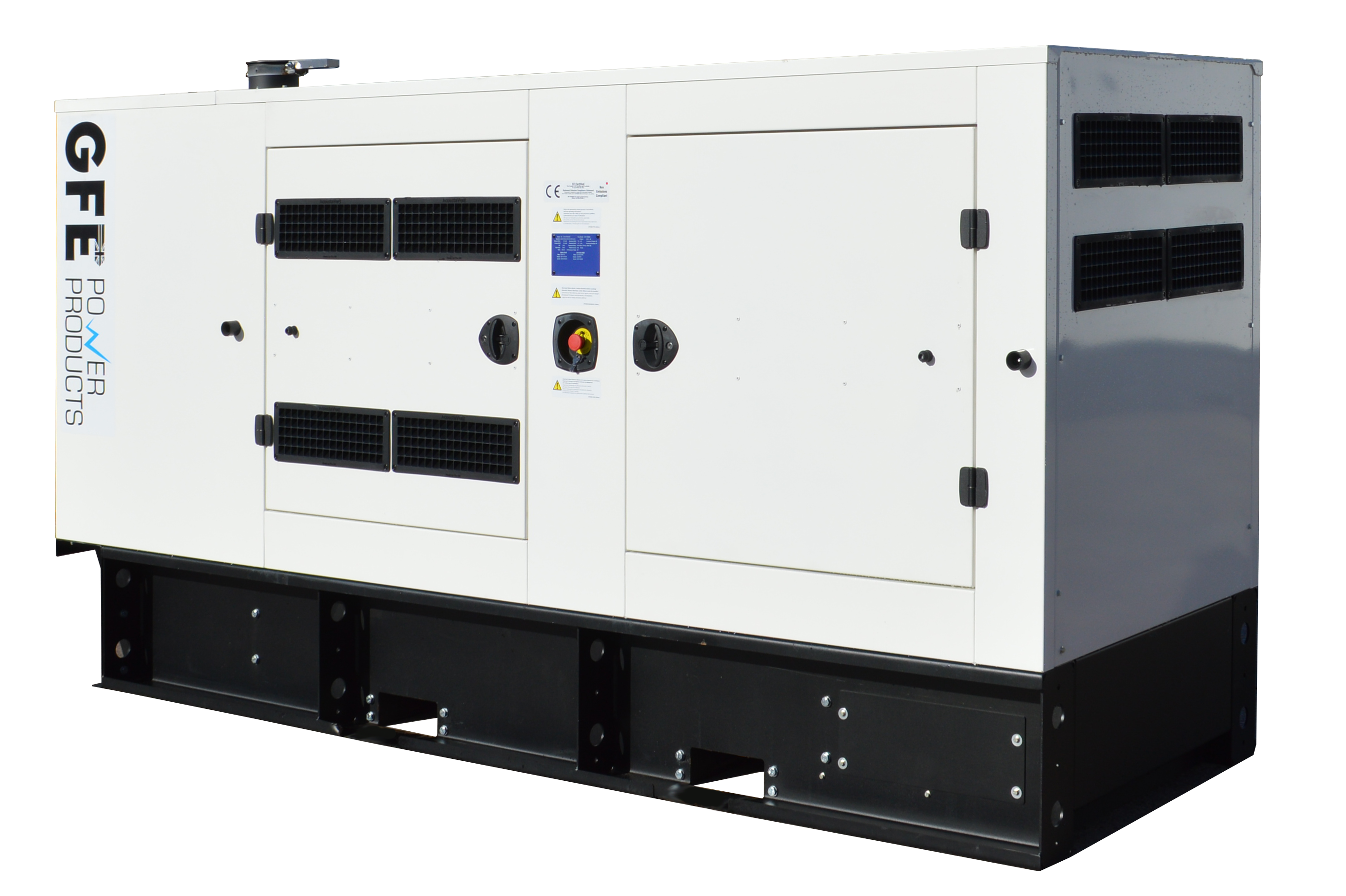

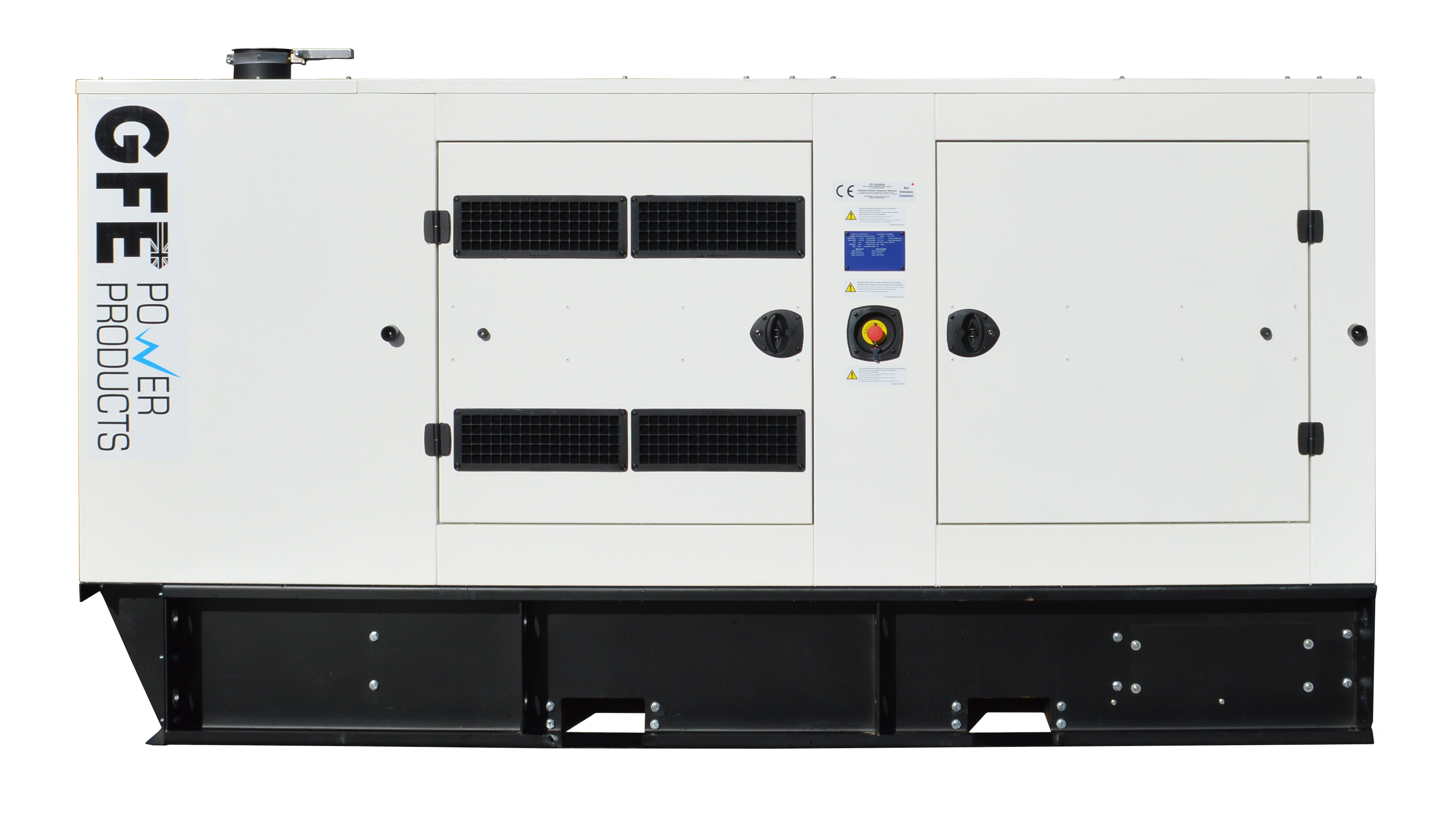

Baudouin 132kVA Diesel Generator - GFE145BSC

Our most cost effective GFE Powered diesel range perfect for standby application or export customers. Baudouin Diesel Engines are fitted with well-known alternator brands and Deepsea control panels are fitted as standard. This range is ideal when price is a key factor without compromising on quality. Our breadth of stock means that whether your focus is on economy, emissions and/or speed of delivery we have the right power solution for you.

Model reference	GFE145BSC (Canopied)
Engine	Baudouin 6M11G2D0/S
Alternator	Stamford
Control panel	Deepsea DSE7320
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	105	131.8
Standby Power (ERP)	115.5	145.1

Voltage	400/230V
Rated current
Fuel consumption	@100% load L/h 30.2

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(W x L x H) mm	kg	Litres
Canopied	1164 x 3208 x 1898	2274	480
Open	1164 x 3208 x 1898	1357	310

Datasheets

GFE145BLC	Engine	Alternator
