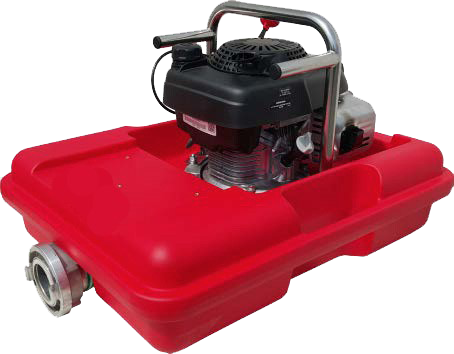

GFE 1200 Fire Pump

$0

Engine

GCV 190/GSV 190

Briggs & Stratton Series 850

Type

4-stroke

4-stroke

Piston Displacement

187ccm

190ccm

Authorised Output

6.5 HP

5.5 HP

Fuel Tank

0.91 ℓ

1.1 ℓ

Fuel Consumption

1.3 ℓ at 3,000rpm

1.4 ℓ at 3,000rpm

Starting System

Pull rope

Pull rope

Valve Mechanism

OHC

OHV







Pump





Type

Single suction, centrifugal

Single suction, centrifugal

Outlet

B75

B75

Performance

1200 ℓ/min

1200 ℓ/min

Delivery height

17m

17m

Grains

Max 15mm

Max 15mm

Dimensions and weight

Dimensions
(l x w x h)

800 x 580 x 460mm

800 x 580 x 460mm

Weight

27kg

26kg

Float

Impact resistance polyethylene



Optional

External fuel tank (3,7ℓ), bronze impeller, special bottom strainer

External fuel tank (3,7ℓ), bronze impeller, special bottom strainer

Operation Time
with external fuel tank

3 hours 30 minutes

3 hours 30 minutes
