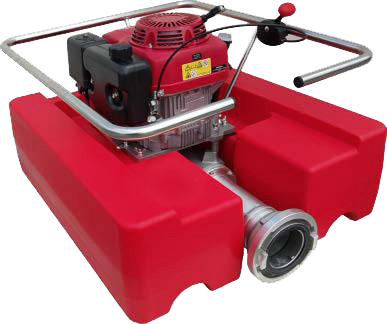

GFE 2400 Fire Pump
$0
Engine |
GCV 190/GSV 190 |
|
|
Type |
4-stroke |
|
|
Piston Displacement |
389ccm |
|
|
Authorised Output |
13 HP |
|
|
Fuel Tank |
2.1 ℓ |
|
|
Fuel Consumption |
2.5 ℓ at 3,000rpm |
|
|
Starting System |
Pull rope |
|
|
Valve Mechanism |
OHV |
|
|
|
|
|
Pump |
|
|
|
Type |
Single suction, centrifugal |
|
|
Outlet |
A110 |
|
|
Performance |
2400 ℓ/min |
|
|
Delivery height |
22m |
|
|
Grains |
Max 15mm |
|
Dimensions and weight |
|
|
|
Dimensions |
885 x 750 x 525mm |
|
|
Weight |
56kg |
|
|
Float |
Impact resistance polyethylene |
|
|
Optional |
External fuel tank (8 ℓ), bronze impeller, special bottom strainer |
|
|
Operation Time |
2 hours 50 minutes |
|
