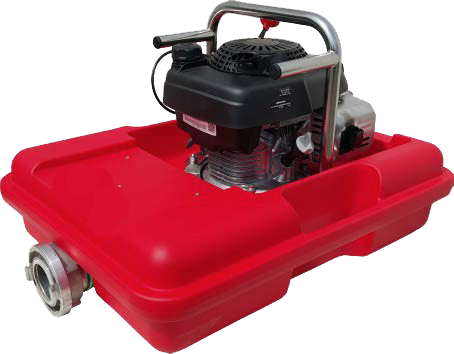

GFE Hydra Fire Pump
Engine |
GCV 190/GSV 190 |
Briggs & Stratton Series 850 |
Type |
4-stroke |
4-stroke |
Piston Displacement |
187ccm |
190ccm |
Authorised Output |
6.5 HP |
6 HP |
Fuel Tank |
0.91 ℓ |
1,1 ℓ |
Fuel Consumption |
1.3 ℓ at 3,000rpm |
1.4 ℓ at 3,000rpm |
Starting System |
Pull rope |
Pull rope |
Valve Mechanism |
OHC |
OHV |
|
|
|
Pump |
|
|
Type |
Single suction, centrifugal |
Single suction, centrifugal |
Outlet |
B75 |
B75 |
Performance |
1100 ℓ/min |
1100 ℓ/min |
Delivery height |
30m |
30m |
Grains |
Max 15mm |
Max 15mm |
Dimensions and weight |
||
Dimensions |
800 x 580 x 460mm |
800 x 580 x 460mm |
Weight |
26kg |
25kg |
Float |
Impact resistance polyethylene |
|
Optional |
External fuel tank (3,7ℓ), bronze impeller, special bottom strainer |
External fuel tank (3,7ℓ), bronze impeller, special bottom strainer |
Operation Time |
3 hours 30 minutes |
3 hours 30 minutes |
