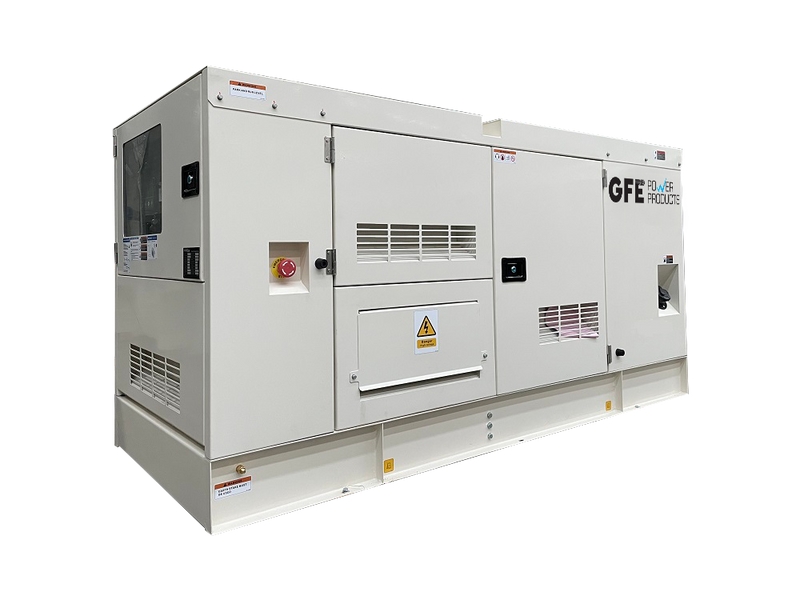

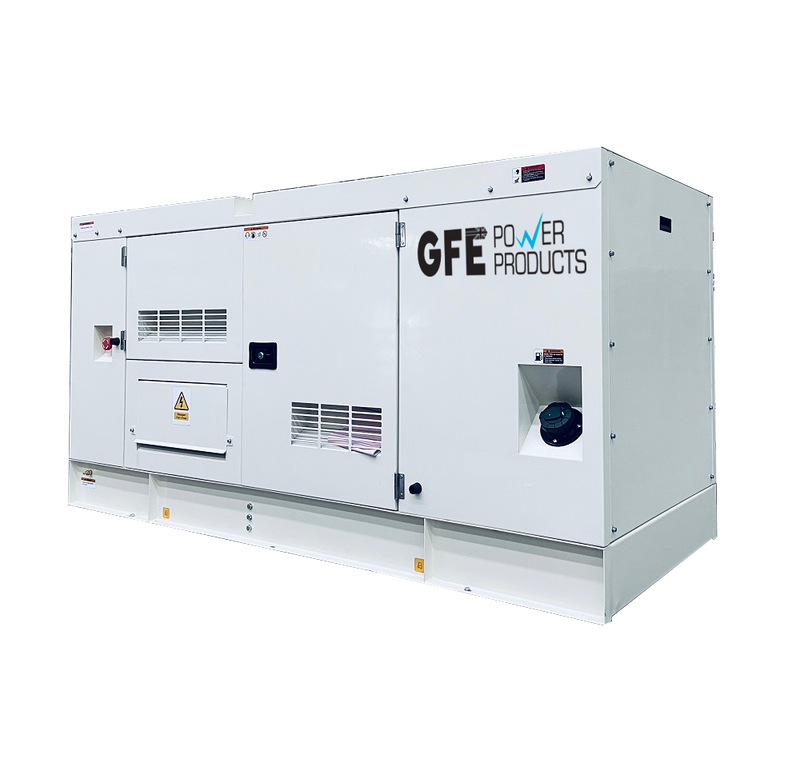

GFE Powered GFE110VGC Diesel Generator
£0
ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET
| Model reference | GFE110VGC (Canopied) |
| Engine | GFE110PL |
| Alternator | GFEPLC3 |
| Control panel | GFE920 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 80 | 100 |
|
Standby Power (ERP) |
88 | 110 |
|
Voltage |
380/220V |
| Rated current | 167 Amps |
| Fuel consumption | @100% load L/h 25 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank |
| (W x L x H) mm | kg | Litres | |
| Canopied | 1150 x 2700 x 1850 | 1972 |
150 |
| Open | 1150 x 2700 x 1850 | 1572 |
150 |
Datasheet
| GFE110VGC | |
 |
