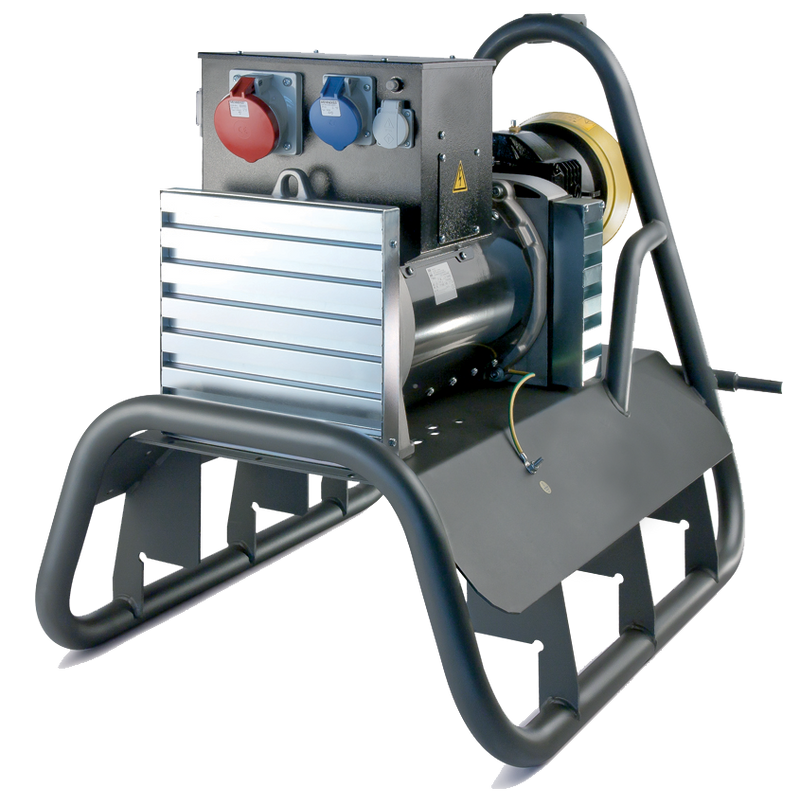

GFEPPB 4-30
$0
Brushless/AVR:
| 3ph 400V/50Hz p.f.0,8 | 1ph 230V/50Hz p.f.1 |
| 30kVA | Max 12kVA |
| 4 poles - 1500 RPM |
| η 4/4 p.f.0.8 | Gearbox rapp.ratio | Driving power | Recommended tractor power |
| % | KW | HP* | |
| 87.6 | 1:3.5 | 29 | 92 |
| PTO speed rated | PTO shaft dimensioning | Mass | |
| RPM** | Nm*** | kW*** | KG |
| 430 | 956 | 54 | 228 |
* Approximate recommended tractor power (multiply by 0,736 to obtain kW)
** PTO RPM necessary to obtain 50Hz
*** Torque and power values (@ 540 rpm) necessary for the correct operation of PTO shaft
