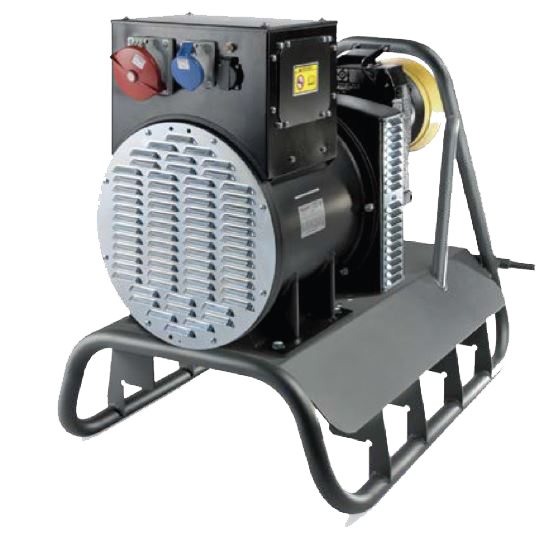

GFEPPB 4-65

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

Brushless/AVR:

 3ph 400V/50Hz p.f.0,8  1ph 230V/50Hz p.f.1
65kVA Max 26kVA
4 poles - 1500 RPM
 η 4/4 p.f.0.8 Gearbox rapp.ratio Driving power Recommended tractor power
% KW HP*
90.7
1:3.8 59.6 202
PTO speed rated PTO shaft dimensioning Mass
RPM** Nm*** kW*** KG
400 2134 120 335



* Approximate recommended tractor power (multiply by 0,736 to obtain kW)

** PTO RPM necessary to obtain 50Hz

*** Torque and power values (@ 540 rpm) necessary for the correct operation of PTO shaft
