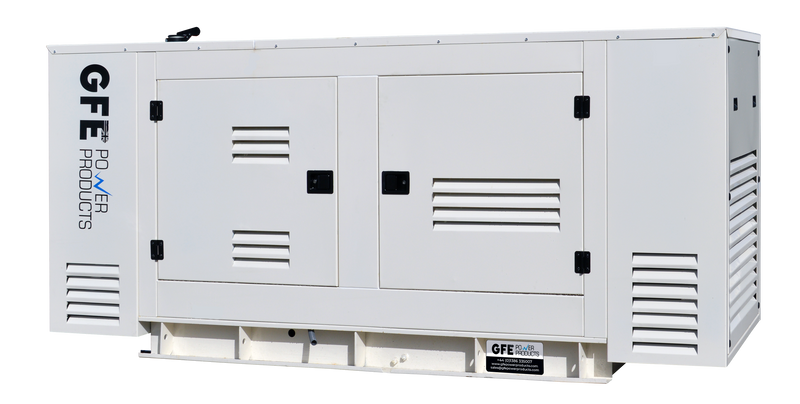

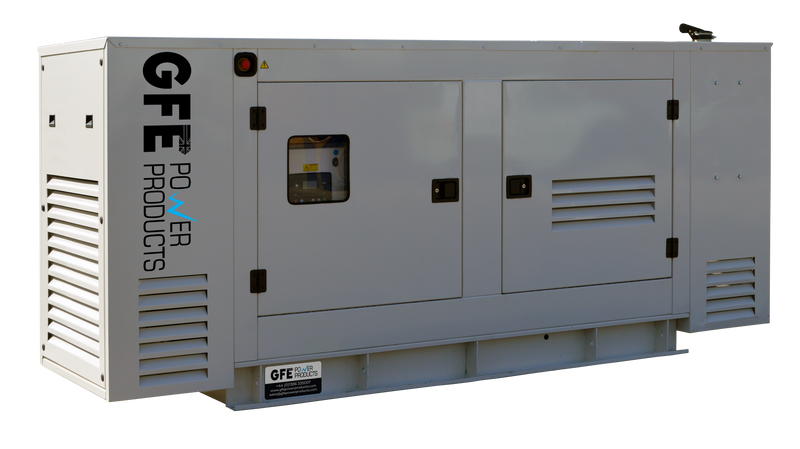

Our GFE200 PLC features a high quality Perkins engine, with a Leroy Somer alternator and DeepSea control panel. The Perkins engines are engineered to deliver a steady and reliable power output, regardless of varying load conditions. This stability in performance ensures a consistent power supply, which is particularly crucial in applications where fluctuations in power can lead to operational disruptions or equipment damage.
| Model reference |
GFE200PLC (Canopied) / GFE200PLO (Open) |
| Engine |
Perkins 1106A-70TAG3 |
| Alternator |
Leroy Somer TAL-044L |
| Control panel |
Deepsea DSE6110 |
| Frequency |
50Hz |
| Engine speed |
1500rpm |
| Phase / Poles |
3-Phase / 4-Pole |
Ratings
|
kWe |
kVA |
| Prime Power (PRP) |
144 |
180 |
Standby Power (ERP)
|
160 |
200 |
Voltage
|
400V |
| Rated current |
259 Amps |
| Fuel consumption |
@100% load L/h 41.4 |
Overall dimensions
| Frame type |
Dimensions |
Weight |
Base tank
@100% load |
|
(L x W x H) mm |
kg |
Litres |
| Canopied |
3600 x 1120 x 1580 |
2153
|
215
|
| Open |
2500 x 800 x 1550 |
1473
|
270
|
Datasheets
| GFE200PLC |
Engine |
Alternator |
|
 |
|
|
|
