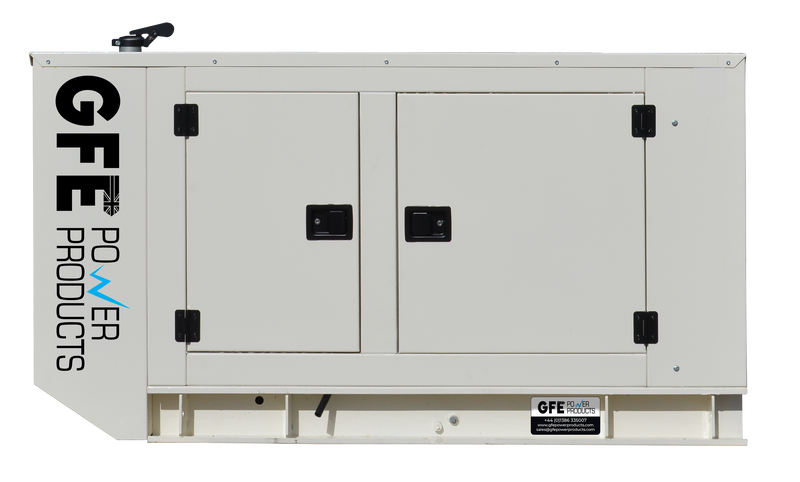

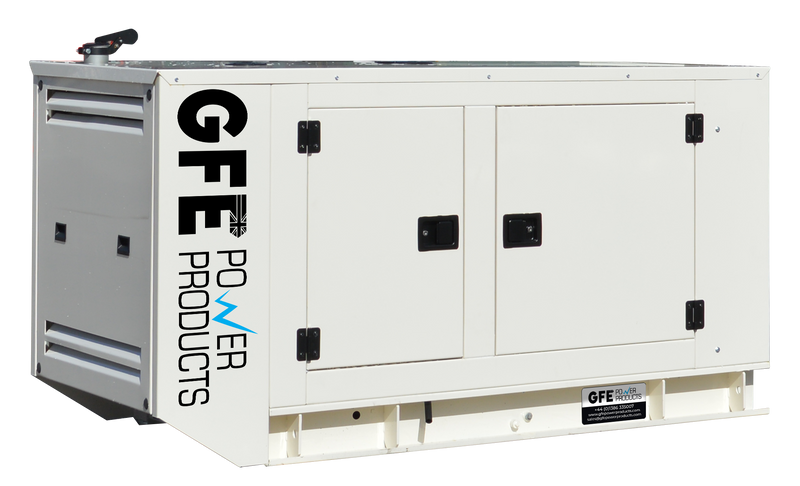

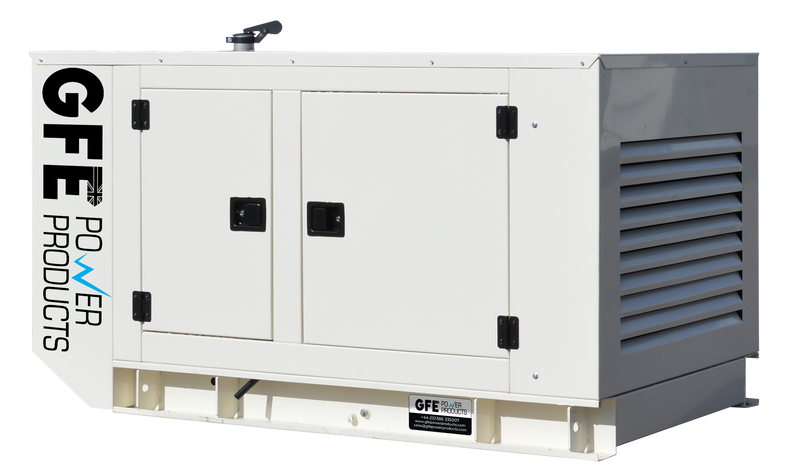

Perkins 60kVA Diesel Generator - GFE66PLC
$0
Our compact GFE Perkins Powered diesel range offers exceptional performance. The GFE66PLC diesel generator is equipped with globally acclaimed Leroy Somer alternators and Deepsea control panels as standard features, this range is particularly well-suited for situations where space on your site is limited, or if you're aiming to reduce logistics expenses. Producing 60kVA prime power, 66kVA standby power, the GFE66 PLC is perfect for a number of different power generation applications.
Our extensive inventory ensures that regardless of whether you prioritize cost-efficiency, environmental considerations, or speedy delivery, we have the perfect power solution to match your needs.
| Model reference | GFE66PLC (Canopied) / GFE66PLO (Open) |
| Engine | Perkins 1103A-33TG2 |
| Alternator | Leroy Somer TAL-04-2H |
| Control panel | Deepsea DSE6110 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 48 | 60 |
|
Standby Power (ERP) |
52.8 | 66 |
|
Voltage |
400V |
| Rated current | 87 Amps |
| Fuel consumption | @100% load L/h 13.9 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |
| Canopied | 2220 x 1130 x 1210 | 1370 | 80 |
| Open | 1700 x 720 x 1340 |
960 | 85 |
Datasheets
| GFE66PLC | Engine | Alternator | |
 |
|
|
