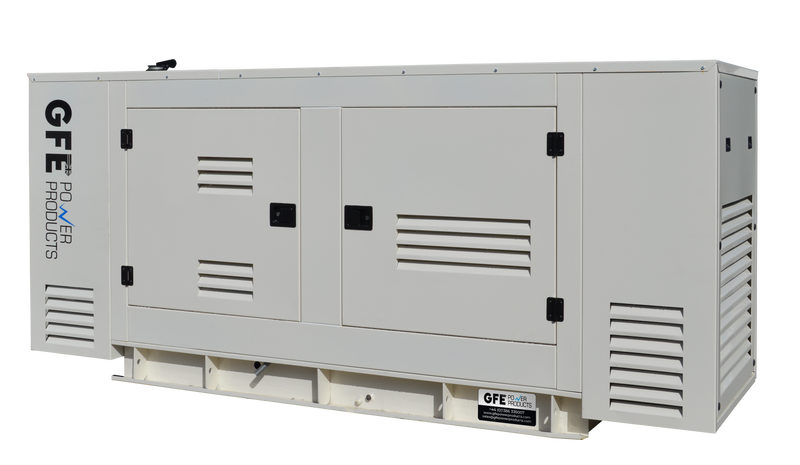

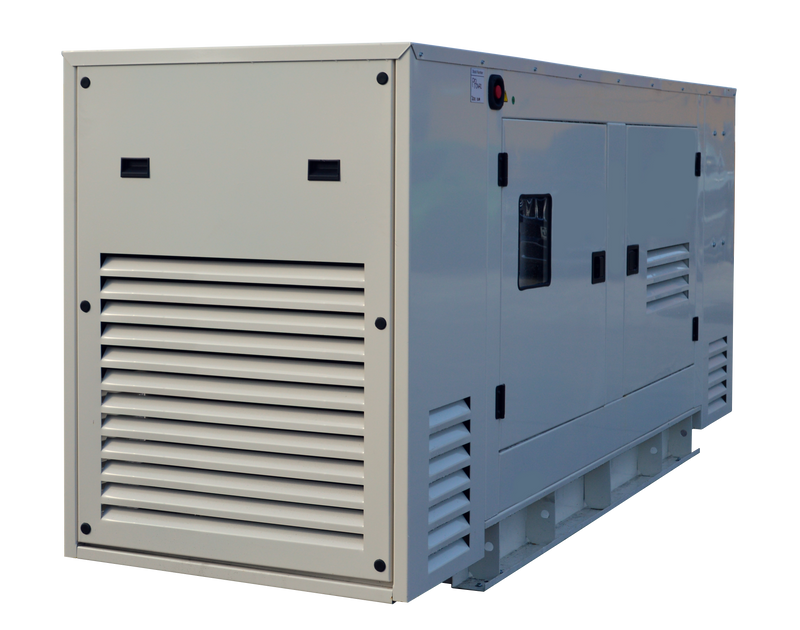

GFE495PLC Perkins Diesel Generator - 450kVA

Name: GFE495PLC Perkins Diesel Generator - 450kVA
Brand: GFE Perkins Powered
Availability: InStock

Housing:

Open Canopied

Tank:

8 hour bunded tank 24 hour bunded tank

Variant

As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. With Perkins engines, Leroy Somers alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial. This 450kVA generator is ready to support your business.

Model reference	GFE495PLC (Canopied) / GFE495PLO (Open)
Engine	Perkins 2506C-E15TAG1
Alternator	Leroy Somer TAL-047-B
Control panel	Deepsea DSE4520
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	360	450
Standby Power (ERP)	396	495

Voltage	400V
Rated current	650 Amps
Fuel consumption	@100% load L/h 99

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	4600 x 1422 x 2530	5000	970
Open	3850 x 1150 x 2130	3650	1000

Datasheets

GFE495PLC	Engine	Alternator
