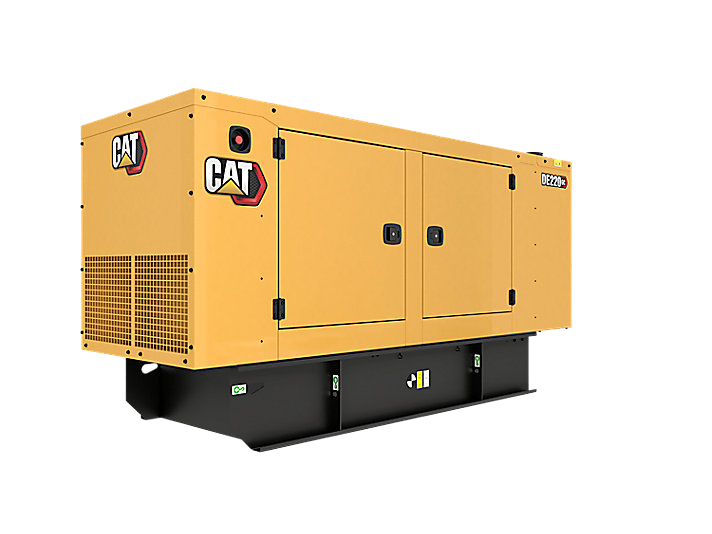

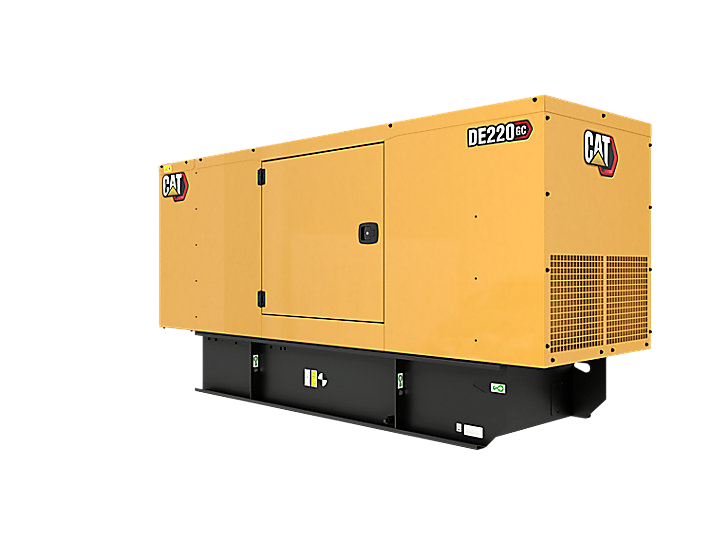

Cat® 217.8kVA Diesel Generator - DE220GC

Producing reliable power of 217 kVA at 50 Hz, the Caterpillar DE220GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.

Model reference DE220GC
Engine Cat® C7.1 Inline 4-stroke Diesel
Frequency 50Hz


Ratings

Standby (50Hz)
Genset power rating 217.8 kVA
Genset power rating with fan @ 0.8 power factor 174.2 kW

Voltage
400V
Rated current 313.9 Amps



Overall dimensions

Frame type Dimensions Weight

(L x W x H) mm kg
Canopied 3325 x 1134 x 1666 1933


Datasheets

 DE220GC Sound Attenuated Enclosures



The Caterpillar DE220GC diesel generator set is designed to provide reliable power of 217 kVA at a frequency of 50 Hz. It is specifically engineered to meet the transient response requirements outlined in ISO 8528-5, which is an international standard that specifies the performance criteria for generating sets used in various applications.



Transient response refers to the diesel generator's ability to quickly and effectively respond to sudden changes in load demand. This could include situations such as starting up heavy electrical equipment or dealing with fluctuating loads. ISO 8528-5 sets guidelines for the acceptable performance parameters during these transient conditions, ensuring that the CAT generator is capable of maintaining stable power output and avoiding any detrimental effects on connected equipment.



By complying with ISO 8528-5 requirements, the CAT DE220GC diesel generator demonstrates its ability to provide reliable and stable power even when faced with sudden load variations or disturbances. This makes the diesel generator suitable for a wide range of applications, including industrial, commercial, and critical power systems where consistent and uninterrupted power supply is essential.
