GFE Cummins-Powered 100kVA Diesel Generator - GFE110CSC

Call Now

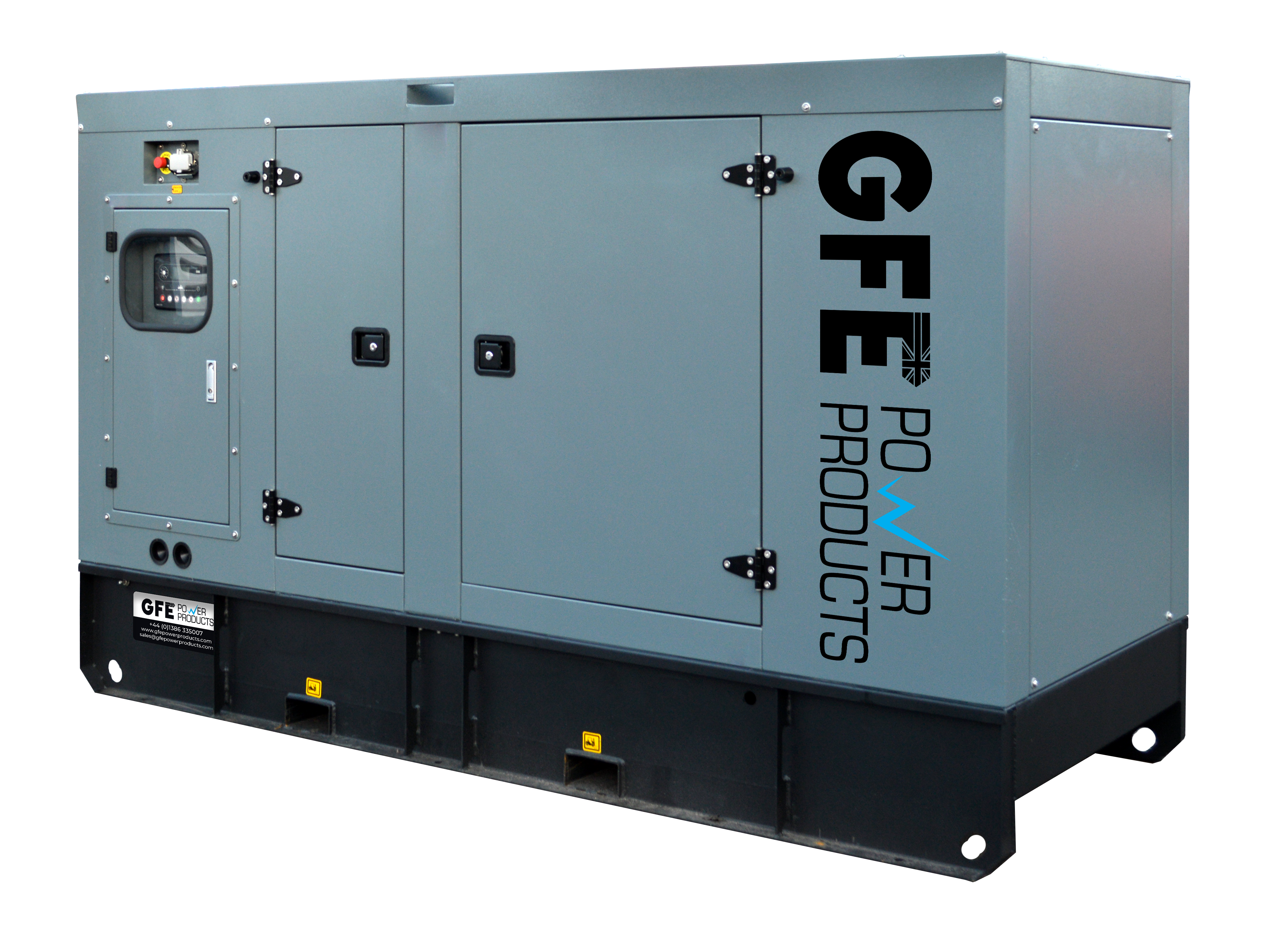

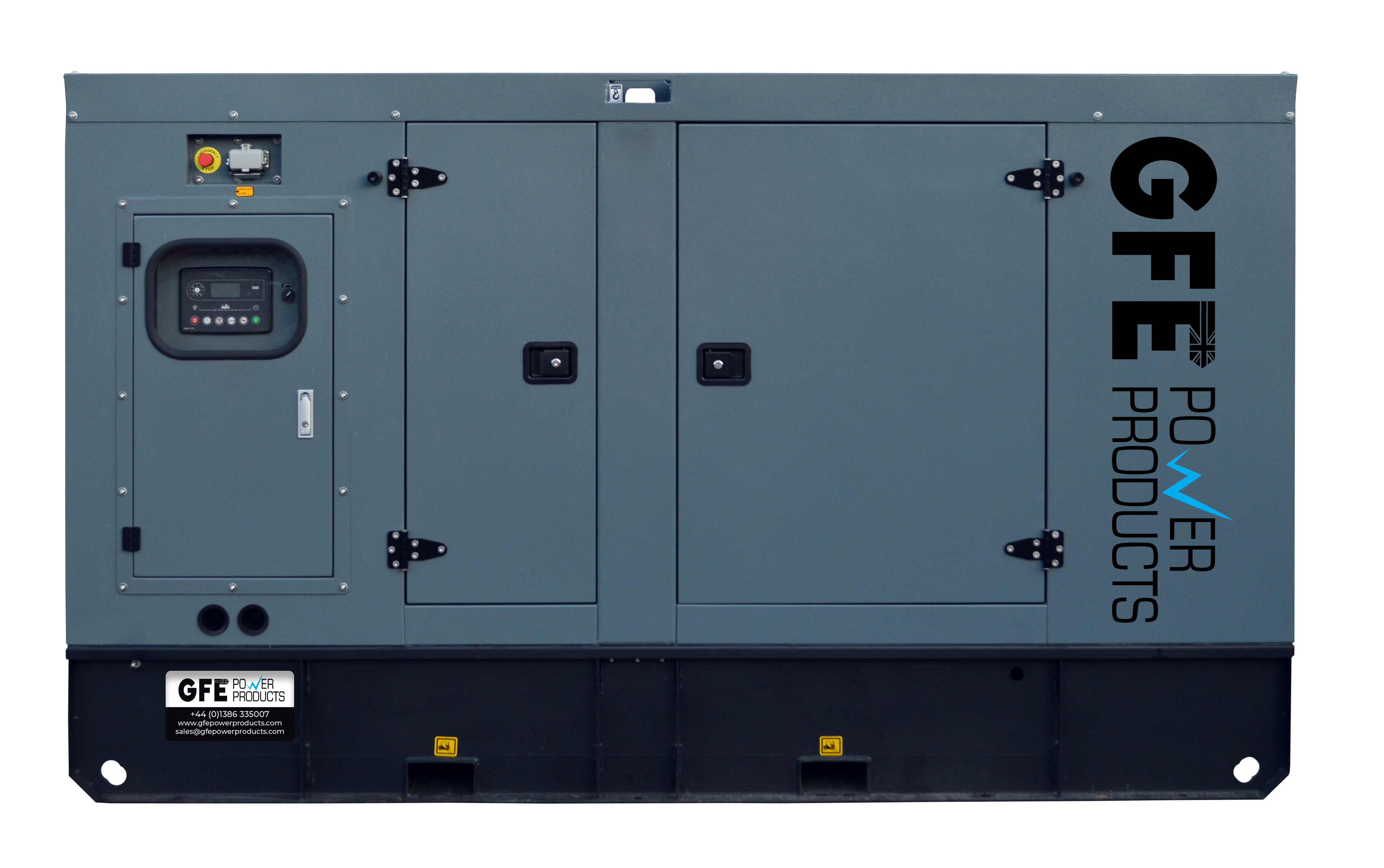

The GFE110CSC is a reliable and efficient diesel generator powered by the Cummins 6BT5.9-G1 engine, delivering 110kVA standby power and 100kVA prime power. Designed for dependable performance across commercial, industrial, and standby applications, it is paired with a Stamford alternator to ensure stable and consistent power output. The generator is equipped with a Deepsea DSE6120 control panel, allowing operators to easily monitor performance, load levels, and system status. Operating at 1500rpm and 50Hz, it provides 400V three-phase power with a rated current of 144 amps and fuel consumption of 21.7 L/h at full load. The robust canopied enclosure offers protection from the elements and maintains a low operating noise level of 76 dB(A) at 7 metres, making the GFE110CSC a practical and dependable power solution for a wide range of installations.

Model reference	GFE110CSC (Canopied)
Engine	Cummins 6BT5.9-G1
Alternator	Stamford
Control panel	Deepsea DSE6120
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	80	100
Standby Power (ERP)	88	110

Voltage	400V
Rated current	144 Amps
Fuel consumption	@100% load L/h 21.7
Noise Level	76 dB(A) at 7m

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	2800 x 1100 x 1700	1745	200
Open

Datasheets

Generator:	Engine:	Alternator:
100kVA GFE110CSC	Cummins 6BT5.9-G1	Stamford UCI274C

Unsure What Size Generator You Need?

Selecting the correct generator size starts with understanding your power requirements. Our kVA calculator allows you to calculate the kVA needed based on your power requirements, helping you choose a generator that fits your application.

try our kva calculator
