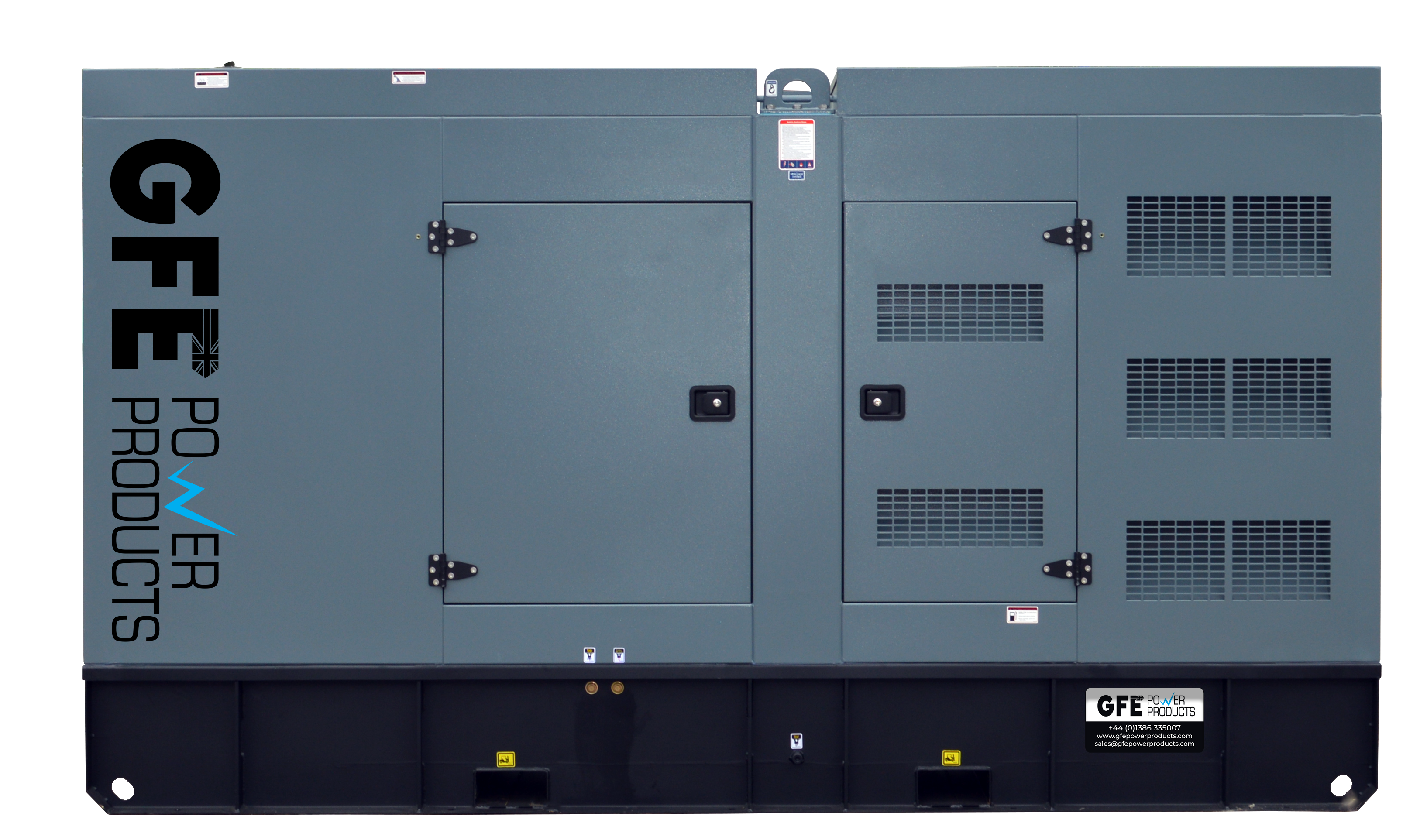

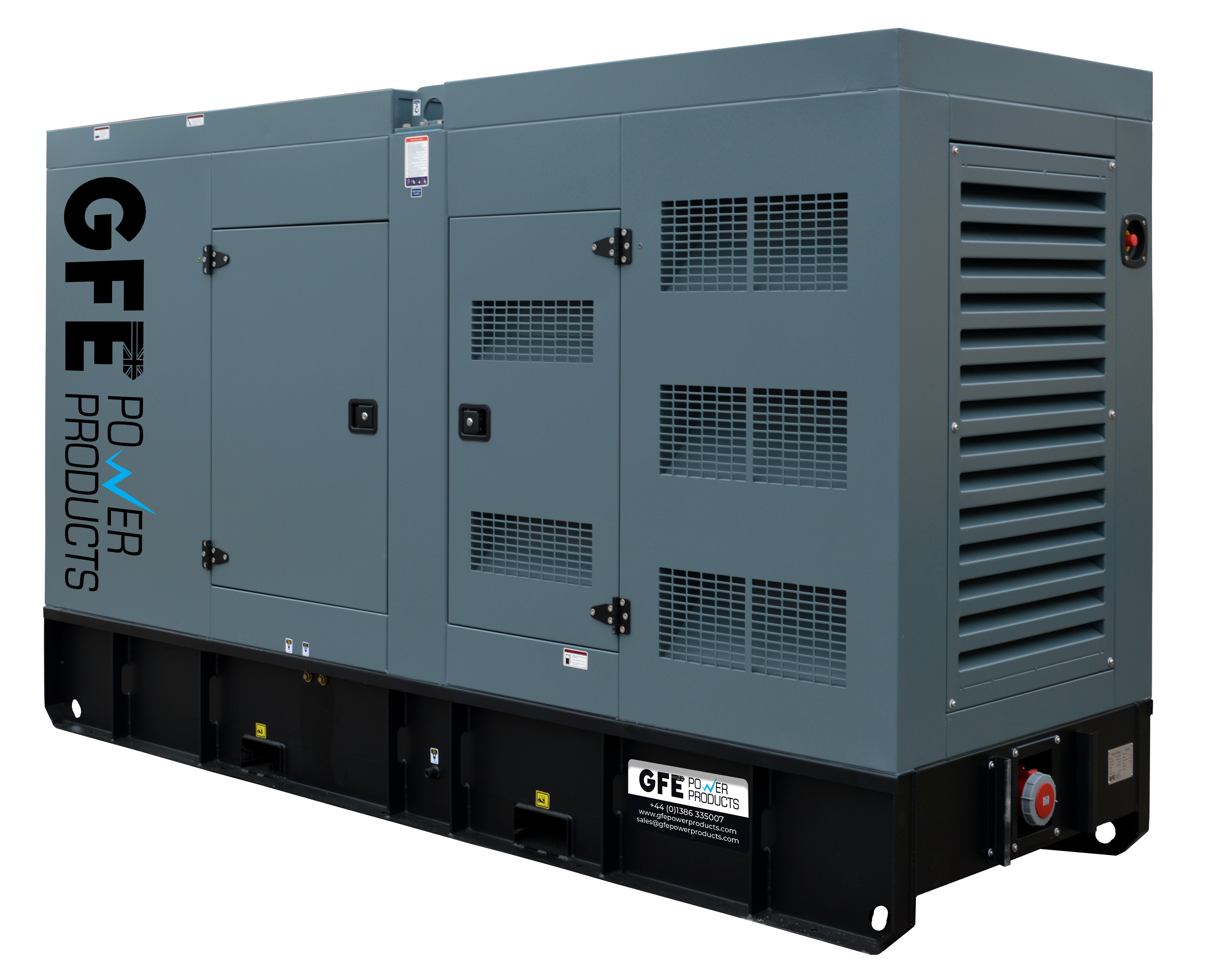

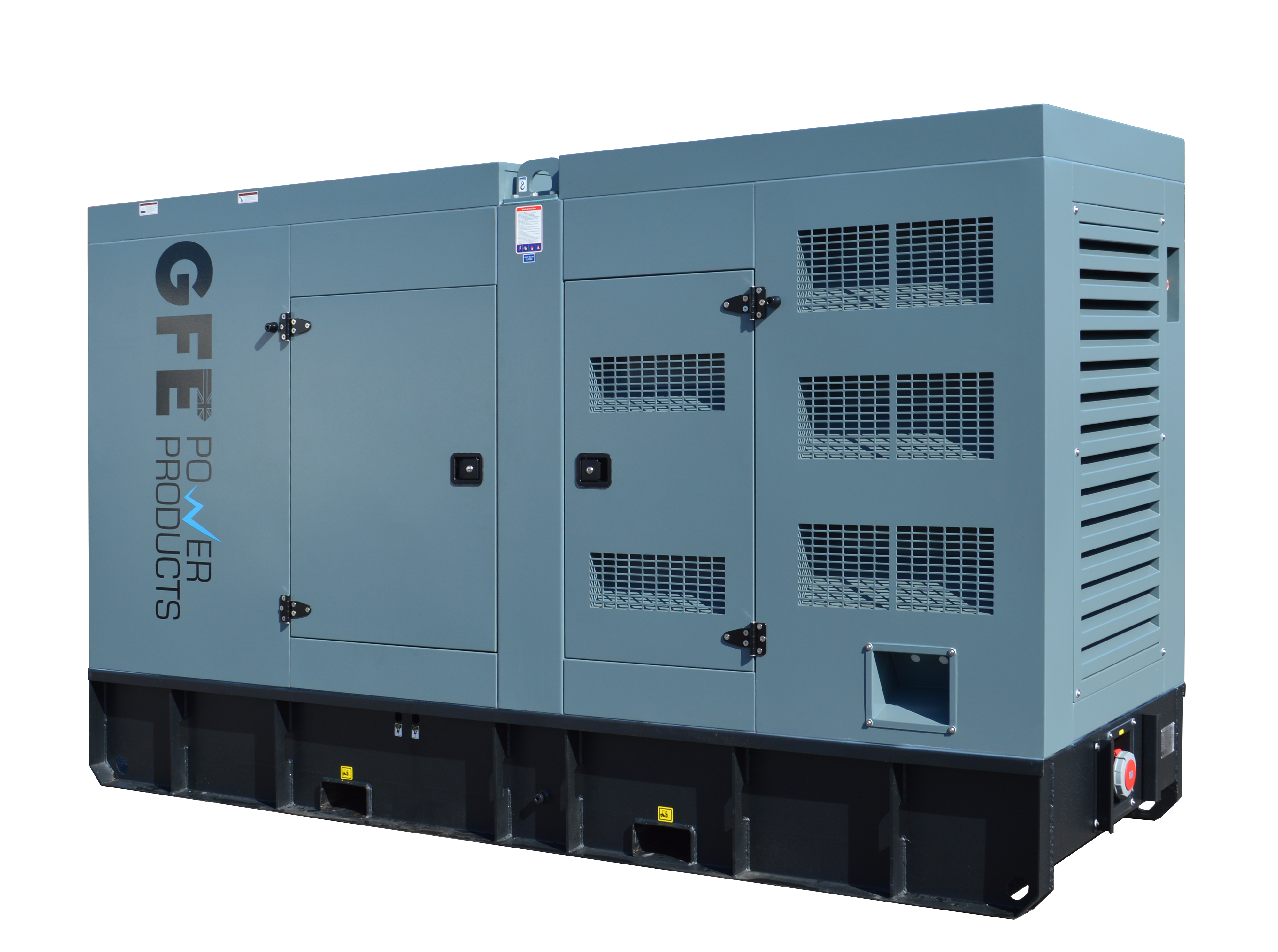

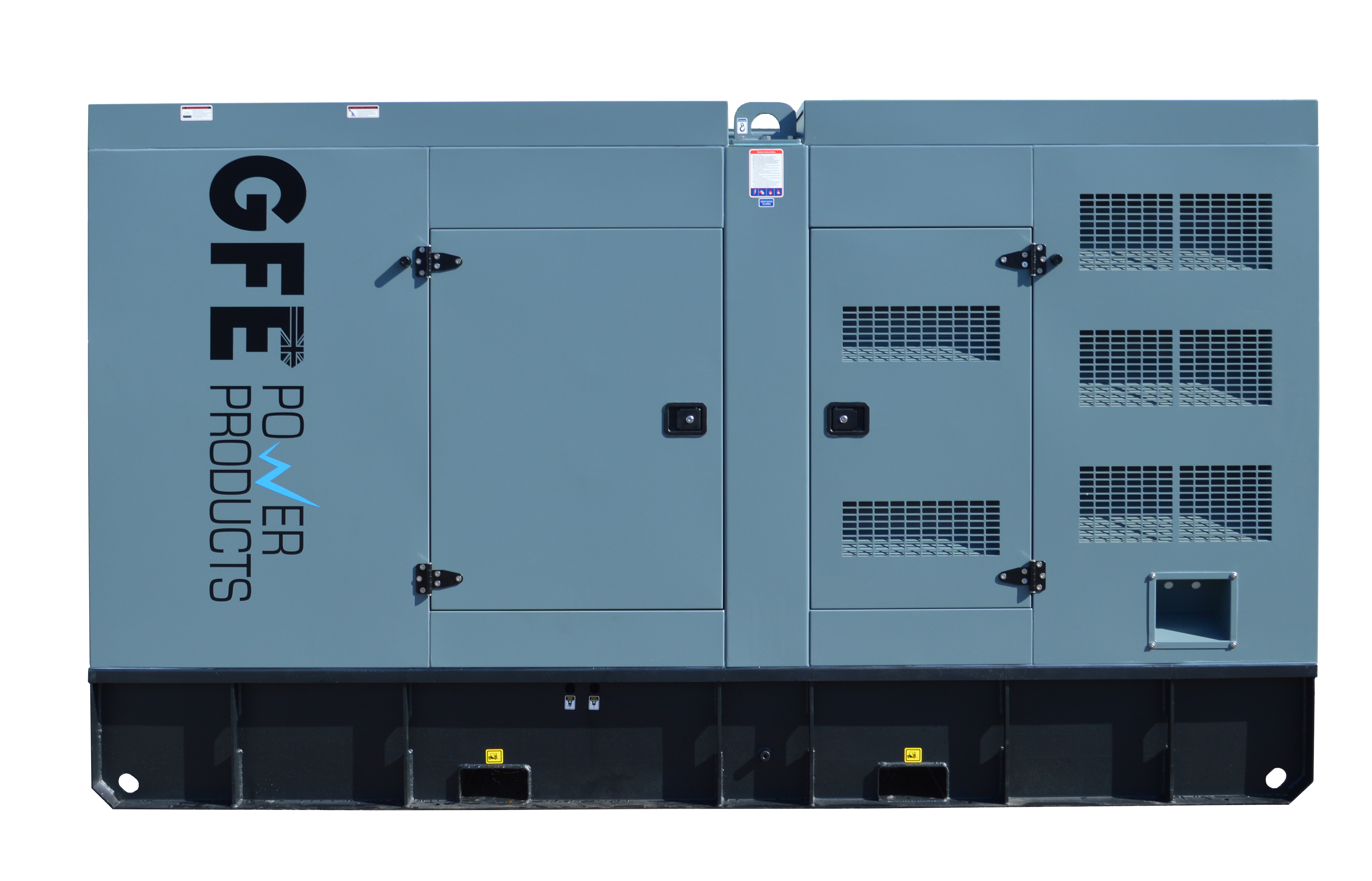

GFE Cummins Powered 200kVA Diesel Generator - GFE220CSC

Call Now

Embrace reliability with GFE Power Products' bespoke Cummins Powered diesel generators, incorporating the renowned Cummins engine and Stamford alternator. Engineered for durability and priced for accessibility, our GFE Cummins Powered generators extend from 20kVA to 650kVA.

Model reference	GFE220CSC (Canopied)
Engine	Cummins 6CTAA8.3-G2
Alternator	Stamford UCI 274H
Control panel	Deepsea DSE6120
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	160	200
Standby Power (ERP)	176	220

Voltage	400V
Rated current	289 Amps
Fuel consumption	@100% load L/h 49
Noise Level	82 dB(A) at 7m

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	3550 x 1165 x 2010	2750	350
Open

Datasheets

Generator:	Engine:	Alternator:
200kVA GFE220CSC	Cummins 6CTAA8.3-G2	Stamford UCI 274H

Unsure What Size Generator You Need?

Selecting the correct generator size starts with understanding your power requirements. Our kVA calculator allows you to calculate the kVA needed based on your power requirements, helping you choose a generator that fits your application.

try our kva calculator
