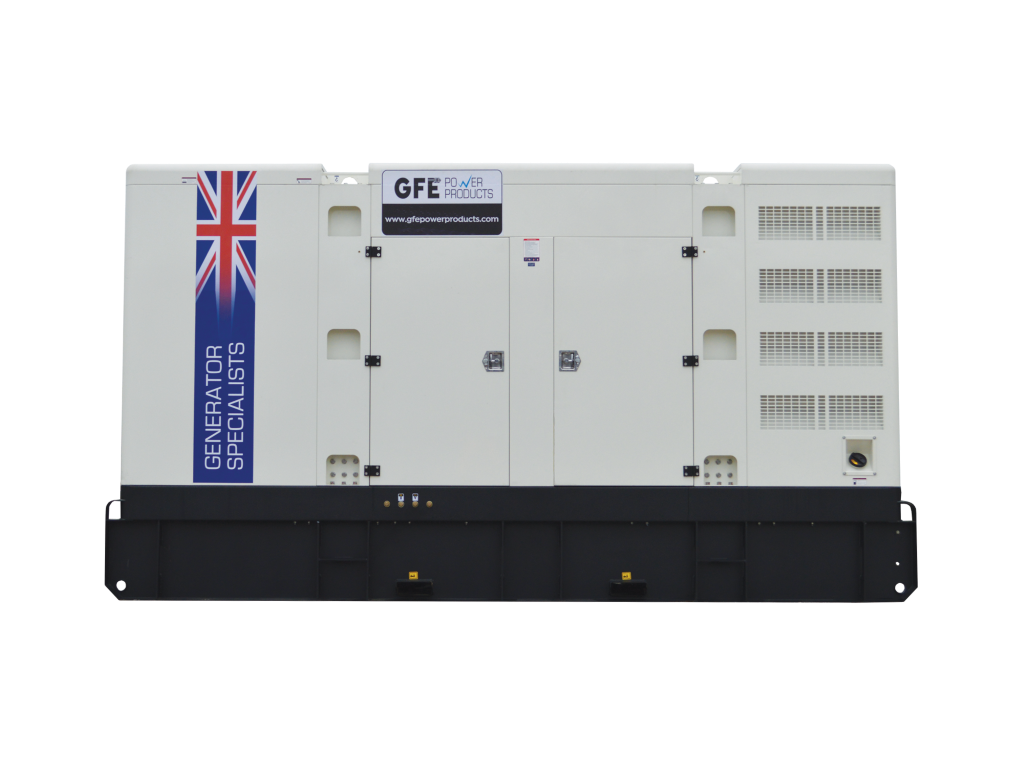

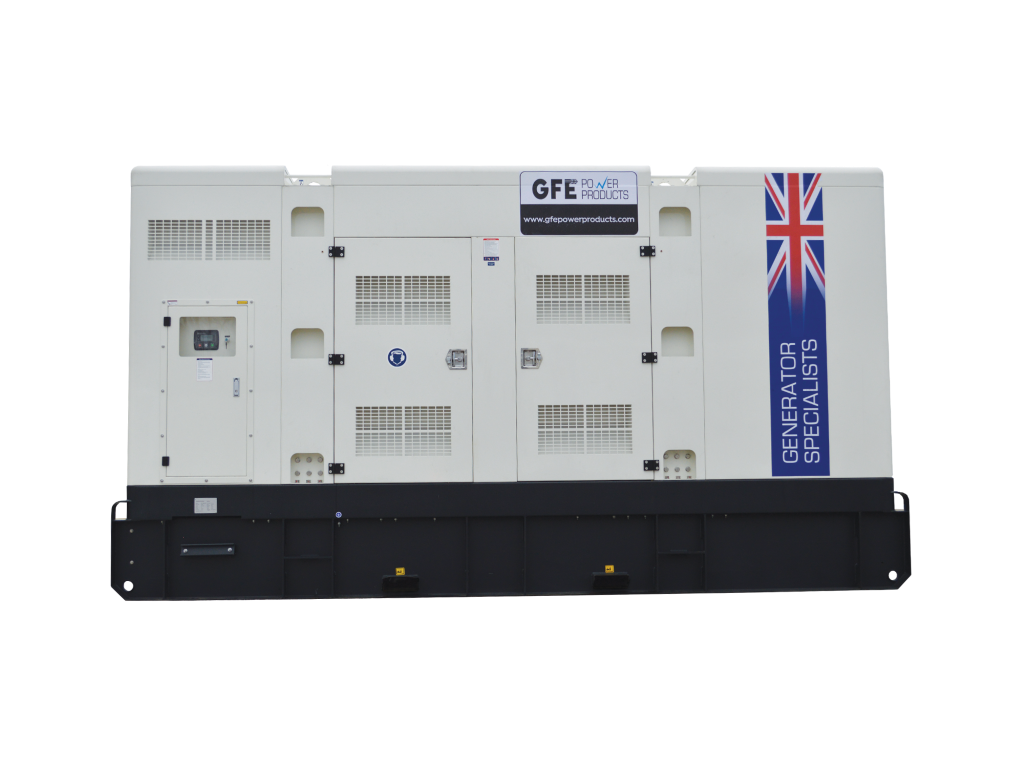

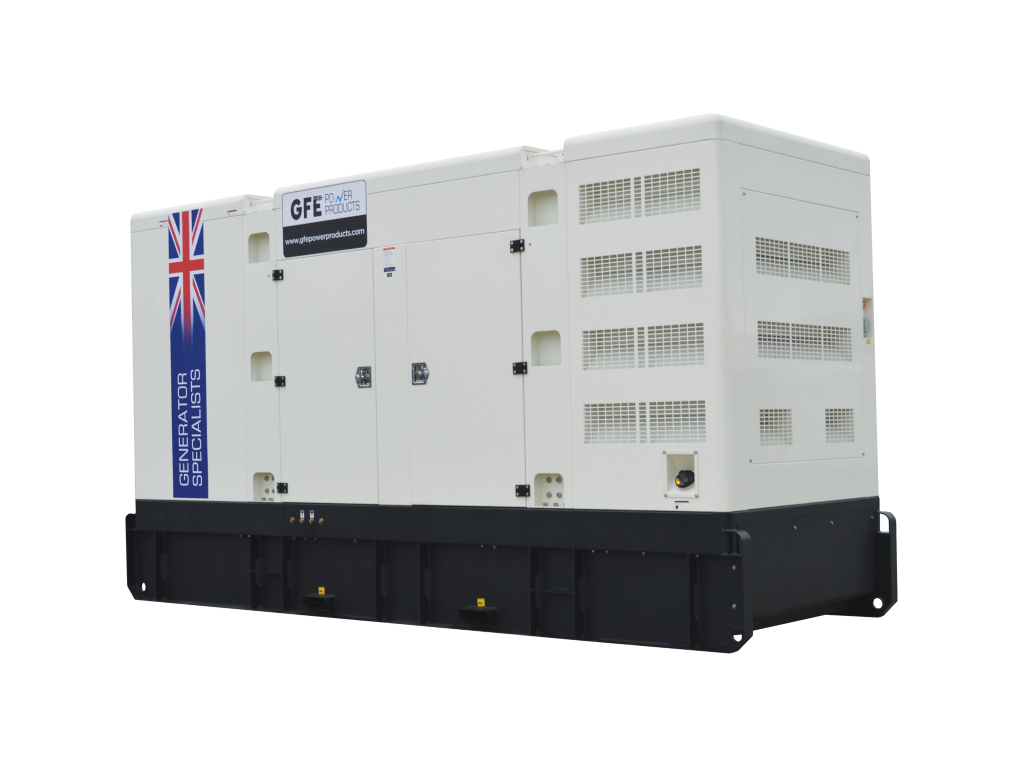

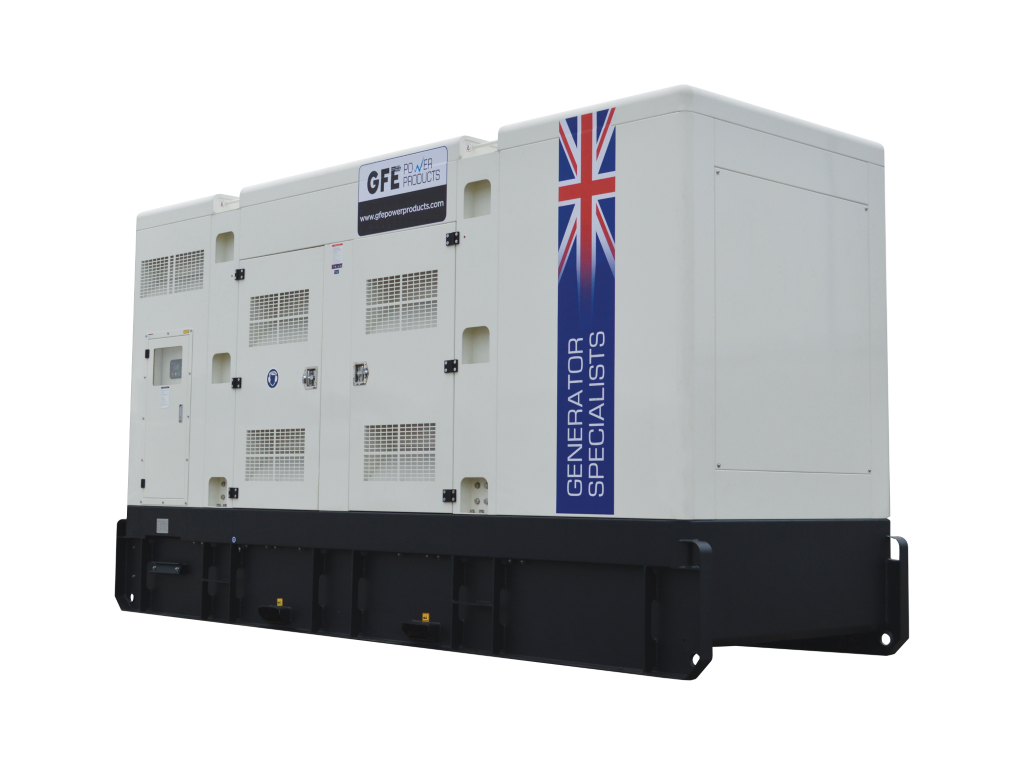

Perkins GFE550PLC 550kVA

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. Built around world class Perkins engines and incorporating Leroy Somers alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial.

Model reference GFE550PLC (Canopied) / GFE550PLO (Open)
Engine Perkins 2506C-E15TAG2
Alternator Leroy Somer TAL-047-C
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 400 500
Standby Power (ERP)
440 550

Voltage
400V
Rated current 722 Amps
Fuel consumption @100% load L/h 106



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 4600 x 1422 x 2530 5000 970
Open 3850 x 1150 x 2130 3750 1000


Datasheets

 GFE550PLC Engine Alternator
Housing:
Tank:
