Kohler SDMO 550kVA Diesel Generator - D550

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference D550
Engine DOOSAN DP158LDF *
Alternator KOHLER KH01982TO4D
Control panel APM403
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 400 500
Standby Power (ERP)
440 550

Voltage
400/230V
Rated current 794 Amps
Fuel consumption @100% load L/h 111



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres

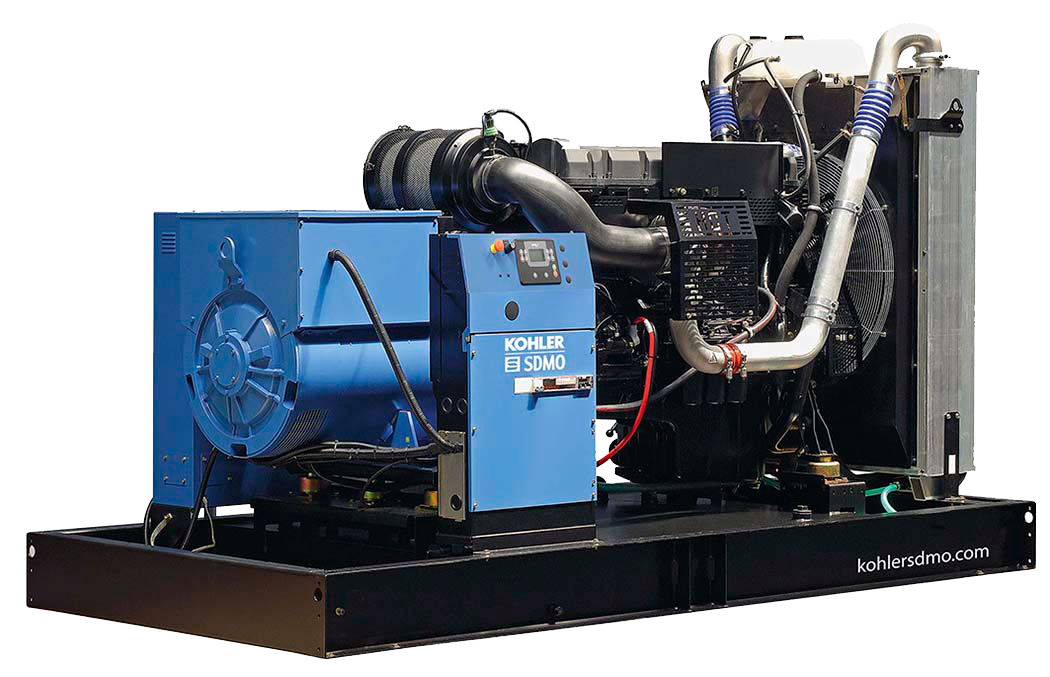

Open 3470 x 1500 x 1852 3173 500

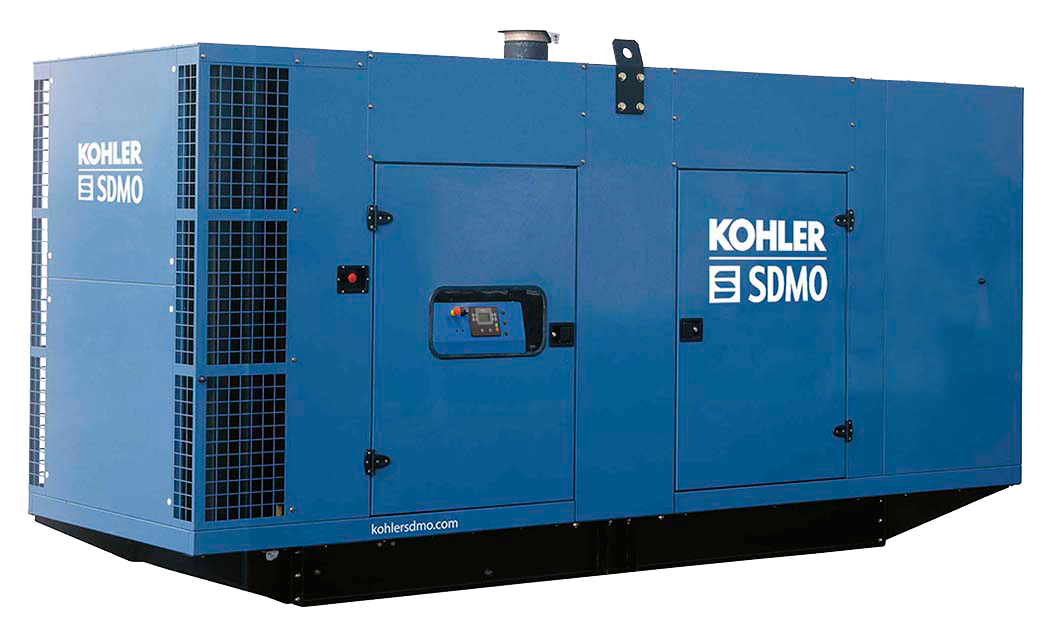

Canopied 5031 x 1560 x 2435 4257 500


Datasheets

D550
