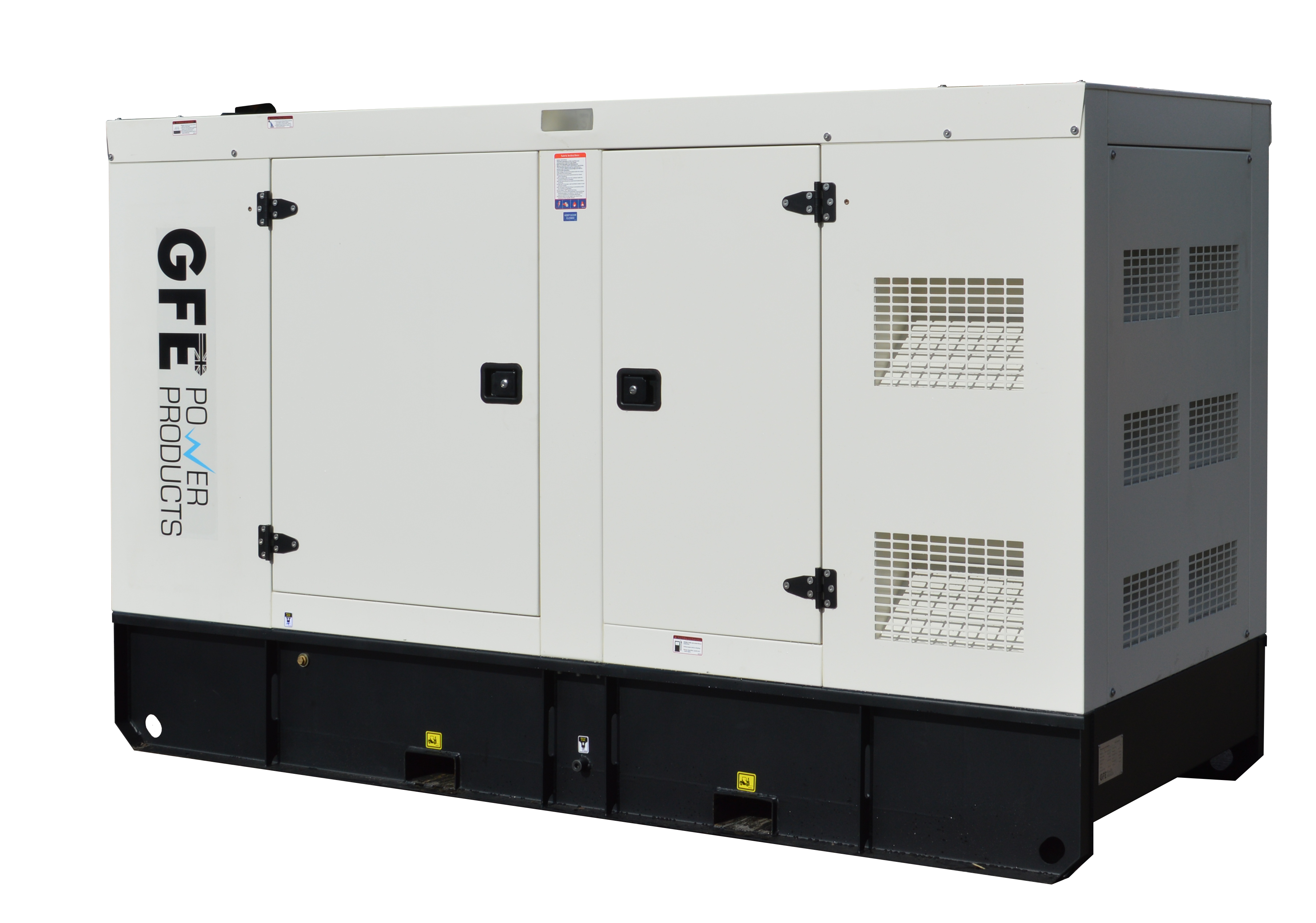

Baudouin 100kVA Diesel Generator - GFE110BSC

Baudouin 100kVA Diesel Generator - GFE110BSC

Call Now kVA Calc

The GFE110BSC delivers 100kVA of three-phase power with unmatched efficiency and reliability. Powered by a trusted Baudouin diesel engine, this generator is engineered for long operational life, even under demanding workloads. Whether required for standby or continuous use, the GFE110BSC offers dependable energy across a range of commercial and industrial environments.

Equipped with a Stamford alternator and Deepsea control panel, it ensures stable output and user-friendly management. With low maintenance requirements and economical fuel consumption, this generator is well-suited to export markets and cost-sensitive operations requiring durable and dependable backup power.

Model reference GFE110BSC (Canopied)
Engine Baudouin 4M10G110/5
Alternator Stamford UCI274C
Control panel Deepsea DSE6120
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 80 100
Standby Power (ERP)
 88 110



Voltage
 400/230V
Rated current 140
Fuel consumption @100% load L/h 21


Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(W x L x H) mm kg Litres
Canopied 2500 x 1115 x 1480
 1480 160





Datasheets

 GFE110BSC Engine Alternator
