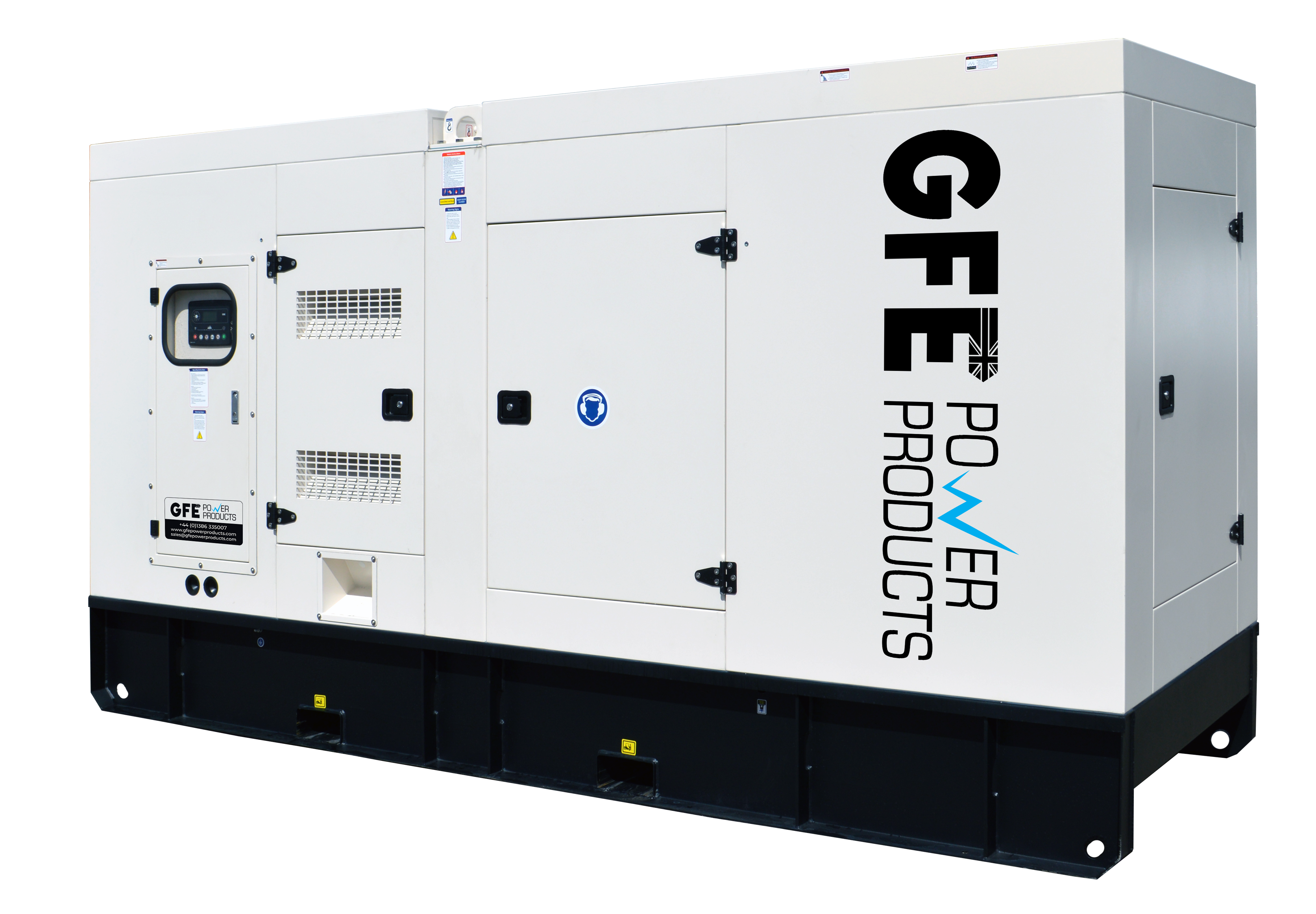

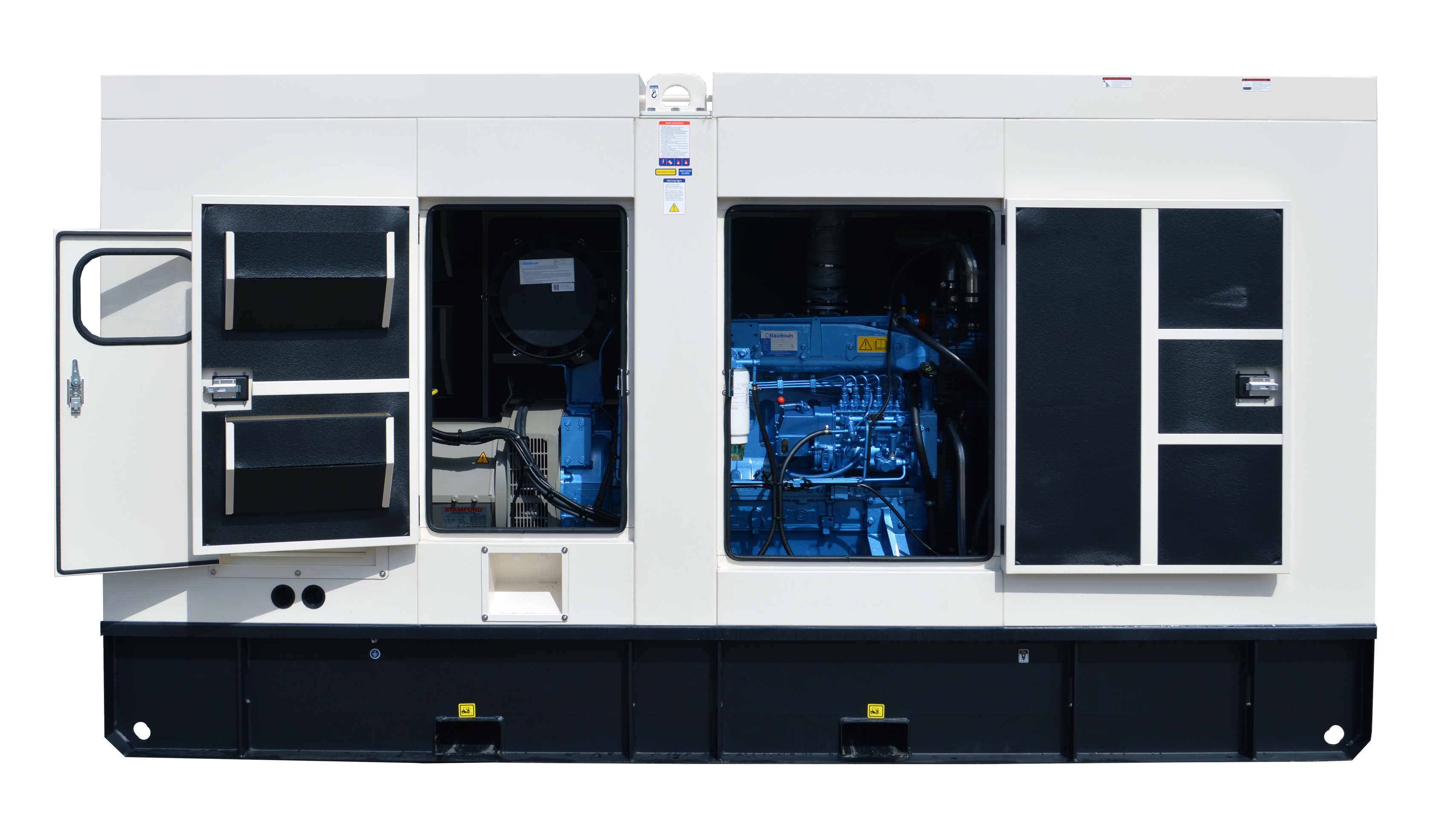

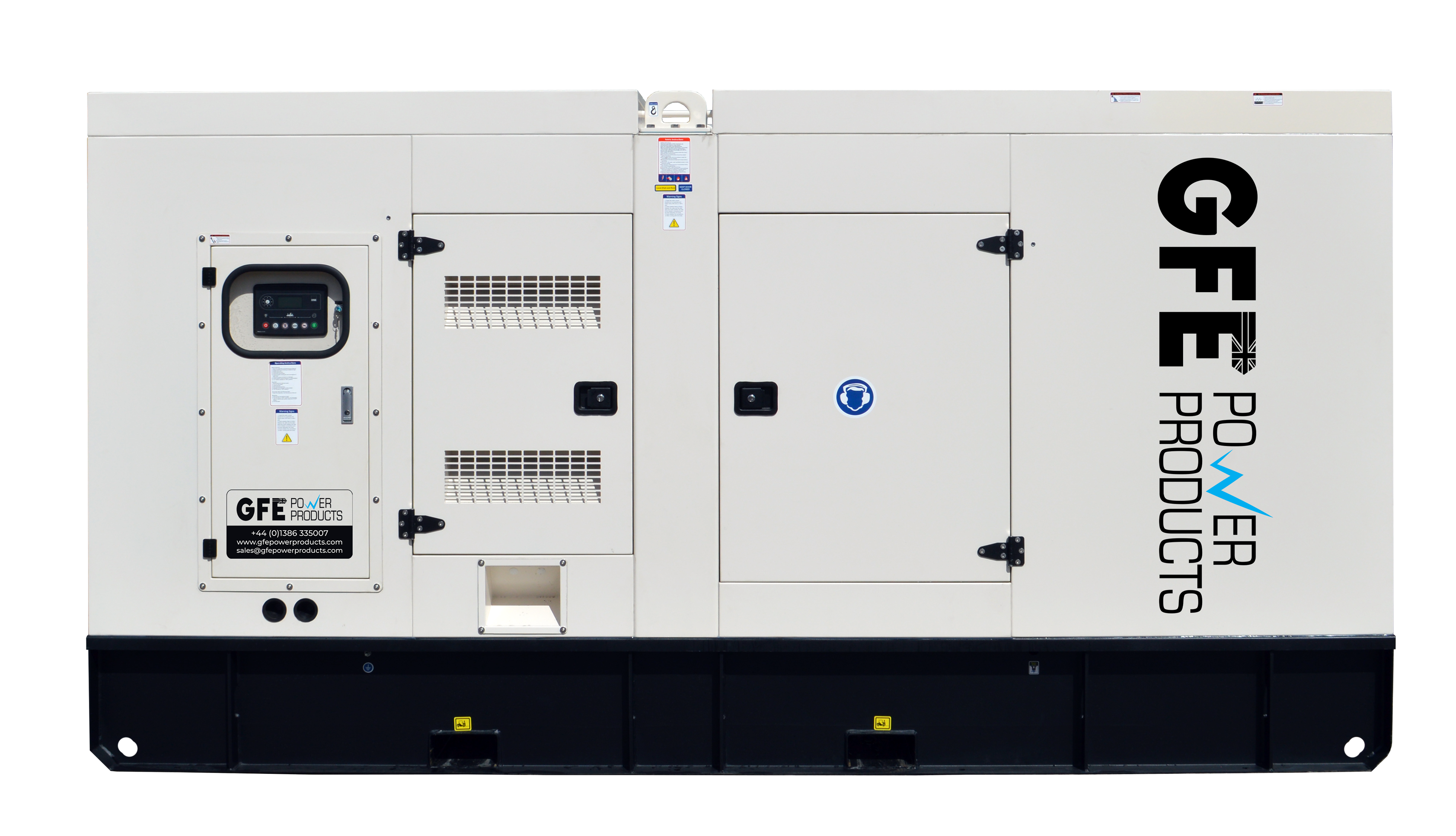

Baudouin 200kVA Diesel Generator - GFE220BSC

Baudouin 200kVA Diesel Generator - GFE220BSC

Call Now kVA Calc

The GFE220BSC Baudouin generator produces 200kVA of three-phase power, making it well-suited for construction sites, industrial applications, or utility backup. Its high-performance Baudouin engine is matched with a Stamford alternator for steady voltage and clean power output.

An integrated Deepsea controller enhances usability and enables real-time monitoring. Its robust construction ensures resilience in challenging environments, while low fuel consumption and extended service intervals deliver ongoing cost efficiency.

Model reference GFE220BSC (Canopied)
Engine Baudouin 6M16G220/5
Alternator Stamford UCI274H
Control panel Deepsea DSE6120
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 160 200
Standby Power (ERP)
 176 220



Voltage
 400/230V
Rated current 289
Fuel consumption @100% load L/h 43


Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(W x L x H) mm kg Litres
Canopied 3800 x 1385 x 2010
 2900 320





Datasheets

 GFE220BSC Engine Alternator
