Baudouin 23kVA Diesel Generator - GFE25BSC

Baudouin 23kVA Diesel Generator - GFE25BSC

Call Now kVA Calc

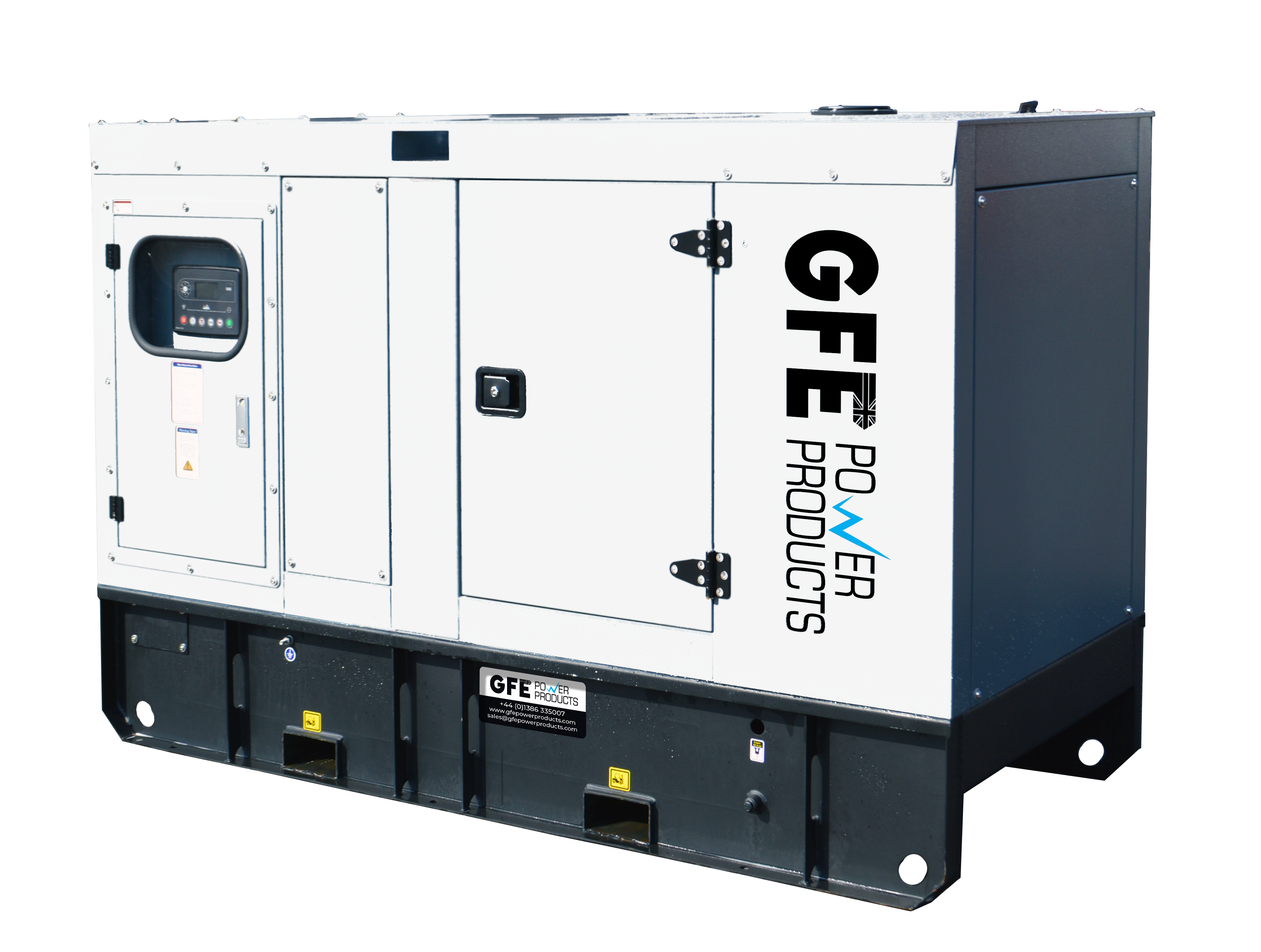

The GFE25BSC is a three-phase 23kVA Baudouin Diesel Generator designed for export markets, construction sites, or light industrial settings. The Baudouin engine guarantees durability, low fuel consumption, and high power density.

Fitted with a Deepsea control module and a high-grade Stamford alternator, this unit is optimised for performance and dependability. Whether it's deployed for prime or standby use, the GFE25BSC delivers consistent output with minimal maintenance. Its compact design and robust features make it a go-to choice for budget-conscious buyers.

Model reference GFE25BSC (Canopied)
Engine Baudouin 4M06G25/5
Alternator Stamford S0L2-M1
Control panel Deepsea DSE6120
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 1-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 18 23
Standby Power (ERP)
 20 25



Voltage
 400/230V
Rated current 34.5
Fuel consumption @100% load L/h 6.1


Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(W x L x H) mm kg Litres
Canopied 1950 x 793 x 1125
 820 40





Datasheets

 GFE25BSC Engine Alternator
