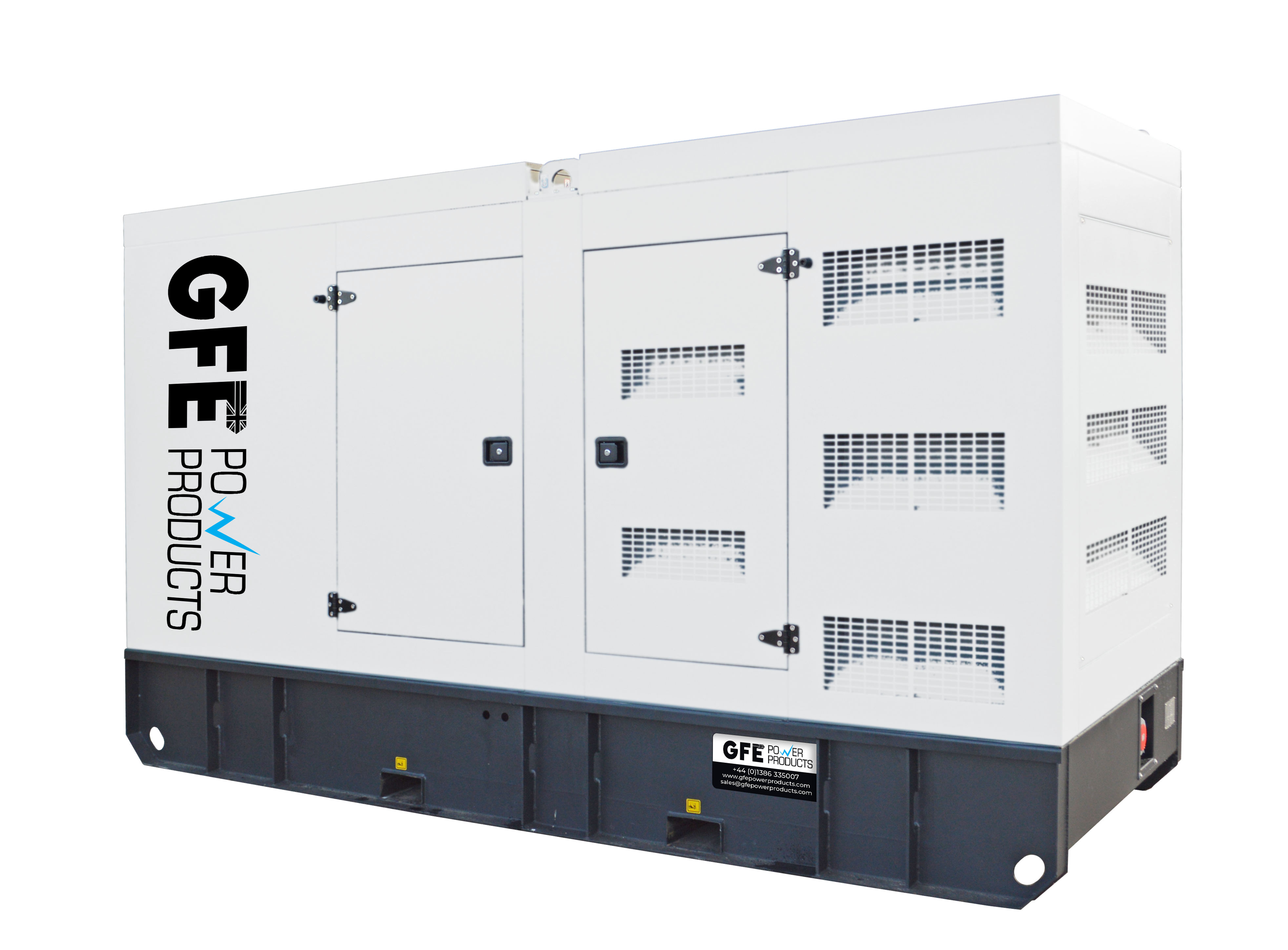

Baudouin 320kVA Diesel Generator - GFE350BSC

Designed for demanding power requirements, the GFE350BSC Baudouin generator offers 320kVA of three-phase output. It combines the endurance of a Baudouin diesel engine with a high-spec Stamford alternator and Deepsea digital control for precision performance.

Whether in standby mode or running continuously, the generator provides efficient, stable, and low-noise power. It's built with a rugged frame and weatherproof housing, making it ideal for on-site use in construction or export to regions requiring dependable mid-to-high power solutions.

Model reference GFE350BSC (Canopied)
Engine Baudouin 6M16G350/5
Alternator Stamford S4L1D-E4
Control panel Deepsea DSE6120
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 256 320
Standby Power (ERP)
280 350



Voltage
400/230V
Rated current 476
Fuel consumption @100% load L/h 70


Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(W x L x H) mm kg Litres
Canopied 3800 x 1385 x 2010
3350 520





Datasheets

 GFE350BSC Engine Alternator
