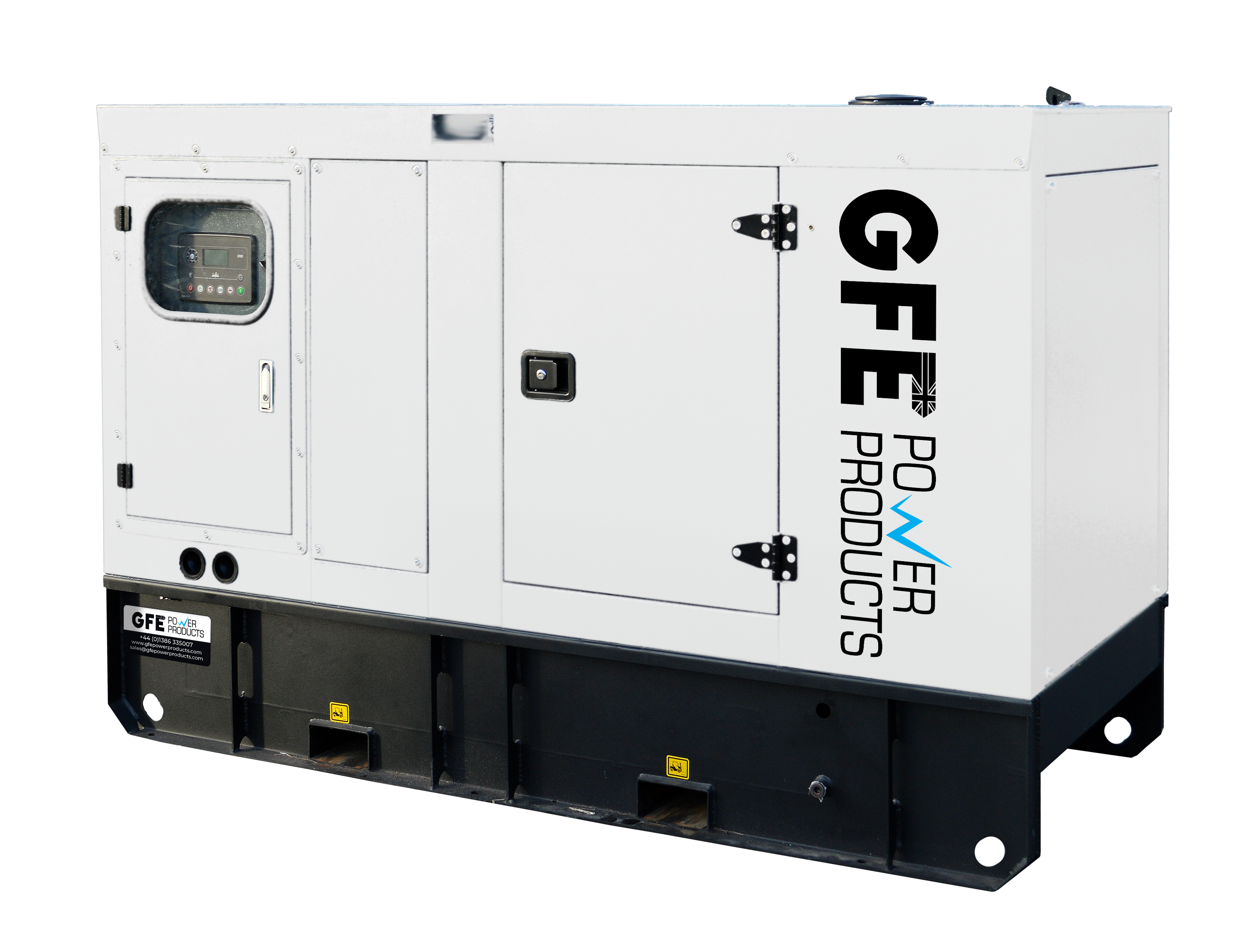

Baudouin 40kVA Diesel Generator - GFE44BSC

Baudouin 40kVA Diesel Generator - GFE44BSC

Call Now kVA Calc

GFE44BSC is a 40kVA three-phase diesel generator built with Baudouin's world-class engineering. It’s suitable for construction sites, manufacturing, and export markets where durable, economical, and high-performance solutions are required.

With a heavy-duty Stamford alternator, user-friendly Deepsea control panel, and exceptional fuel efficiency, this generator stands out as a balanced solution for cost and performance. The compact form factor also ensures flexibility in installation, even in tighter spaces.

Model reference GFE44BSC (Canopied)
Engine Baudouin 4M06G44/5
Alternator Stamford S1L2-K1
Control panel Deepsea DSE6120
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 32 40
Standby Power (ERP)
 35 44



Voltage
 400/230V
Rated current 57
Fuel consumption @100% load L/h 9.5


Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(W x L x H) mm kg Litres
Canopied 2162 x 973 x 1280
 1012 75





Datasheets

 GFE44BSC Engine Alternator
