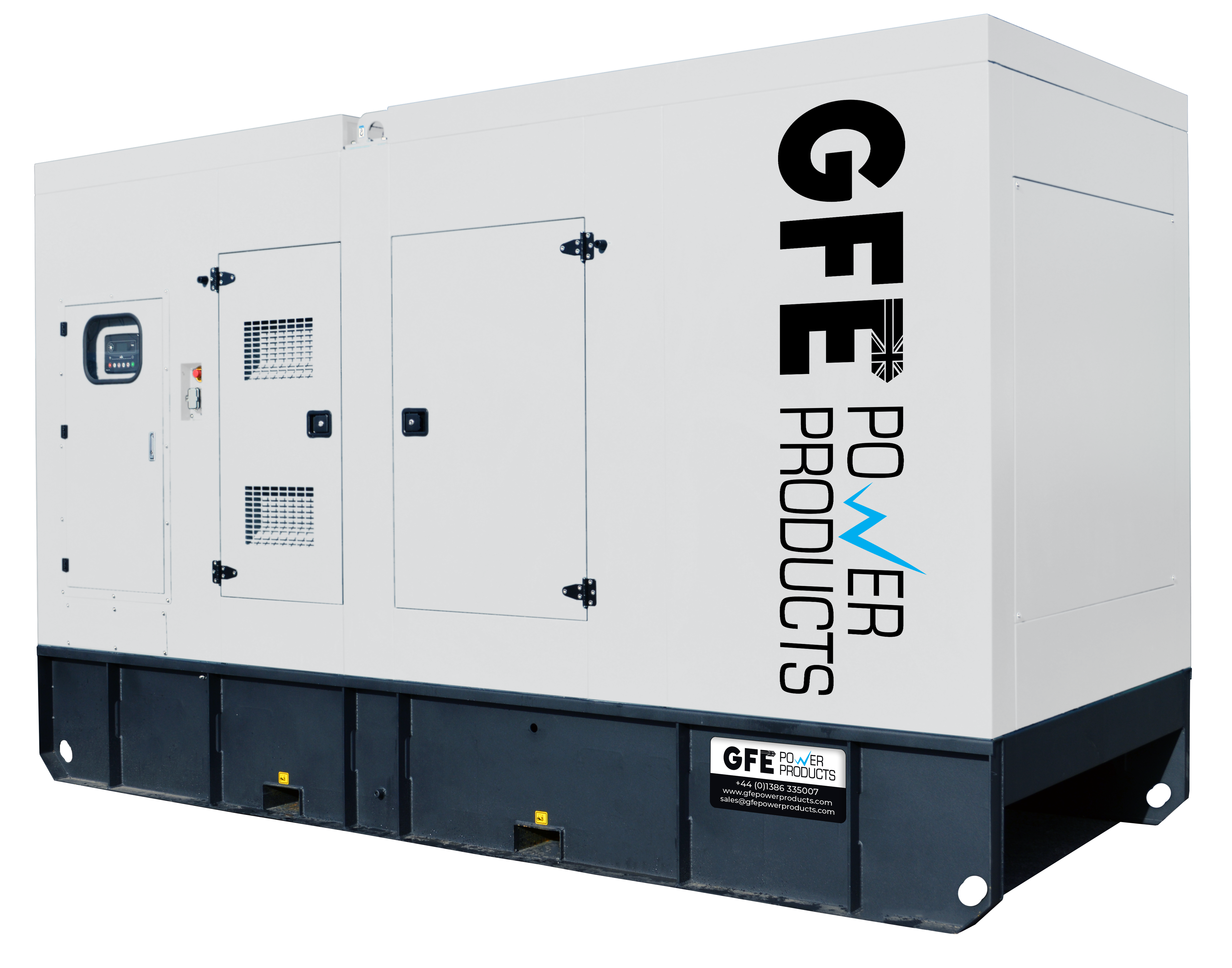

Baudouin 600kVA Diesel Generator - GFE660BSC
When your power needs are critical, the Baudouin 600kVA Diesel Generator - GFE660BSC delivers a seamless, high-performance solution. Equipped with a powerful Baudouin engine, this unit offers robust and efficient power generation for both prime and backup applications.
The GFE660BSC provides superior load handling, ensuring your operations stay up and running even under high demand. Its advanced cooling and ventilation systems keep the generator running efficiently, reducing the risk of overheating and extending its lifespan. Additionally, its compact design and quiet operation make it suitable for a wide range of environments, from construction sites to data centres.
The GFE660BSC is also built to meet environmental standards, with reduced emissions and noise levels, helping businesses achieve a balance between performance and sustainability.
| Model reference | GFE660BSC (Canopied) |
| Engine | Baudouin 6M33G660/5 |
| Alternator | Stamford S5L1D-E4 |
| Control panel | Deepsea DSE6120 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 480 | 600 |
|
Standby Power (ERP) |
528 | 660 |
|
Voltage |
400/230V |
| Rated current | 867 |
| Fuel consumption | @100% load L/h 126.5 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (W x L x H) mm | kg | Litres | |
| Canopied | 4800 x 2022 x 2560 |
7330 | 600 |
Datasheets
| GFE660BSC | Engine | Alternator | |
 |
