Cat® DE33GC 33kVA

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

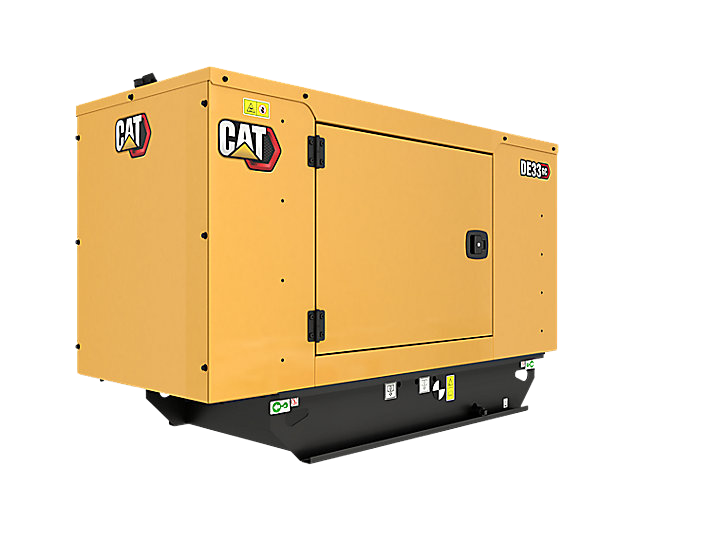

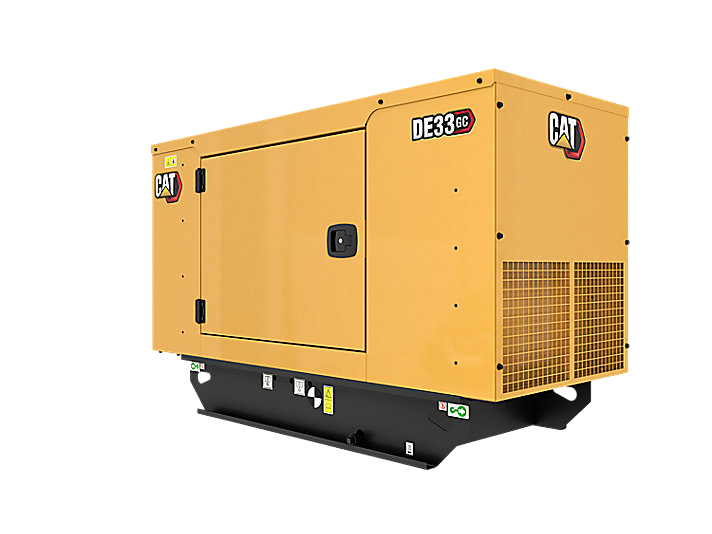

Producing 33 kVA of reliable power at 50 Hz, the DE33GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.

Model reference DE33GC
Engine Cat® C3.3 Inline 4-stroke Diesel
Frequency 50Hz


Ratings

Standby (50Hz)
Genset power rating 33 kVA
Genset power rating with fan @ 0.8 power factor 26.4 kW

Voltage
400V
Rated current 47.6 Amps



Overall dimensions

Frame type Dimensions Weight

(L x W x H) mm kg
Canopied 1945 x 870 x 1238 959


Datasheets

 DE33GC Sound Attenuated Enclosures
