GFE Cummins-Powered 22kVA Diesel Generator - GFE22CSC-1

Call Now

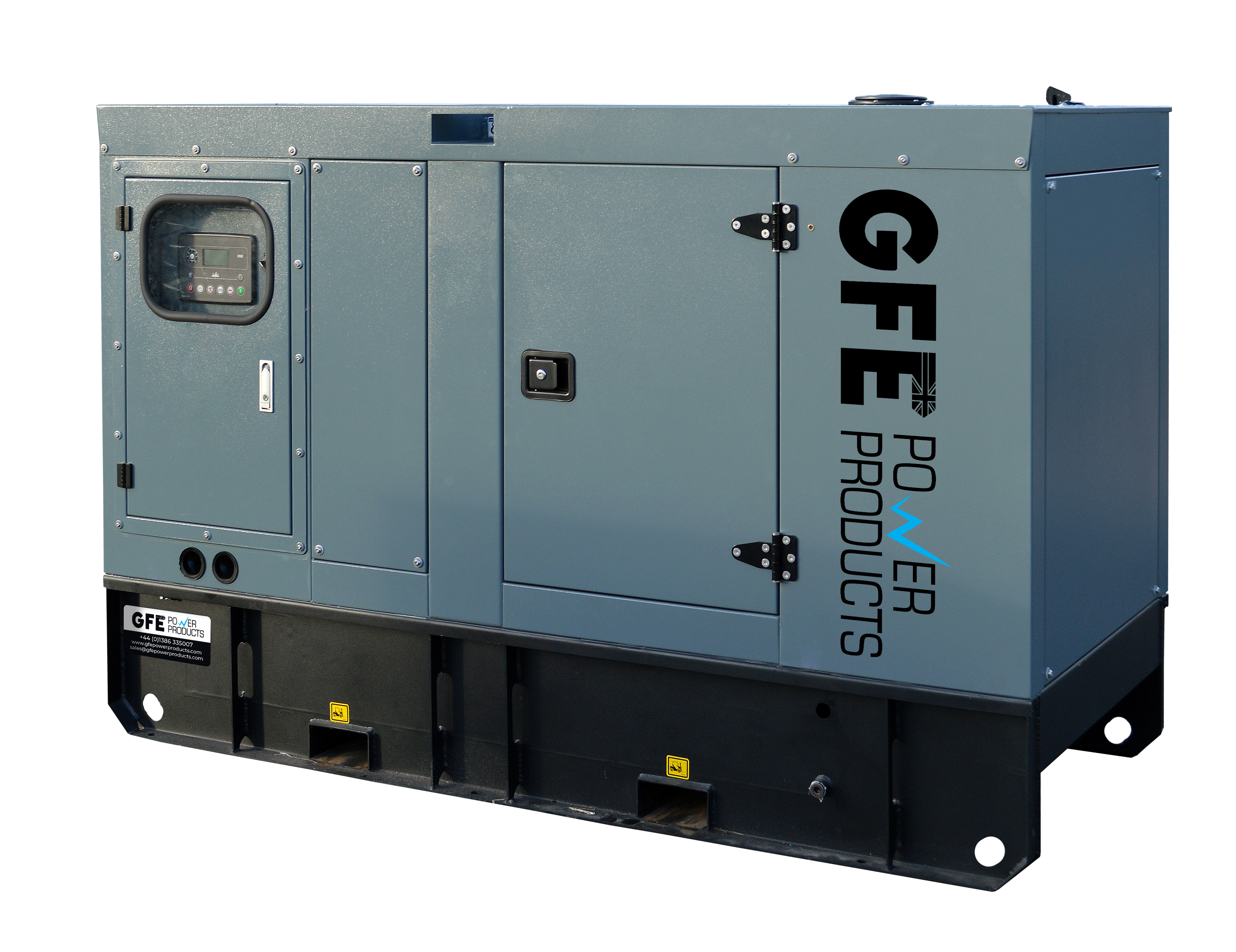

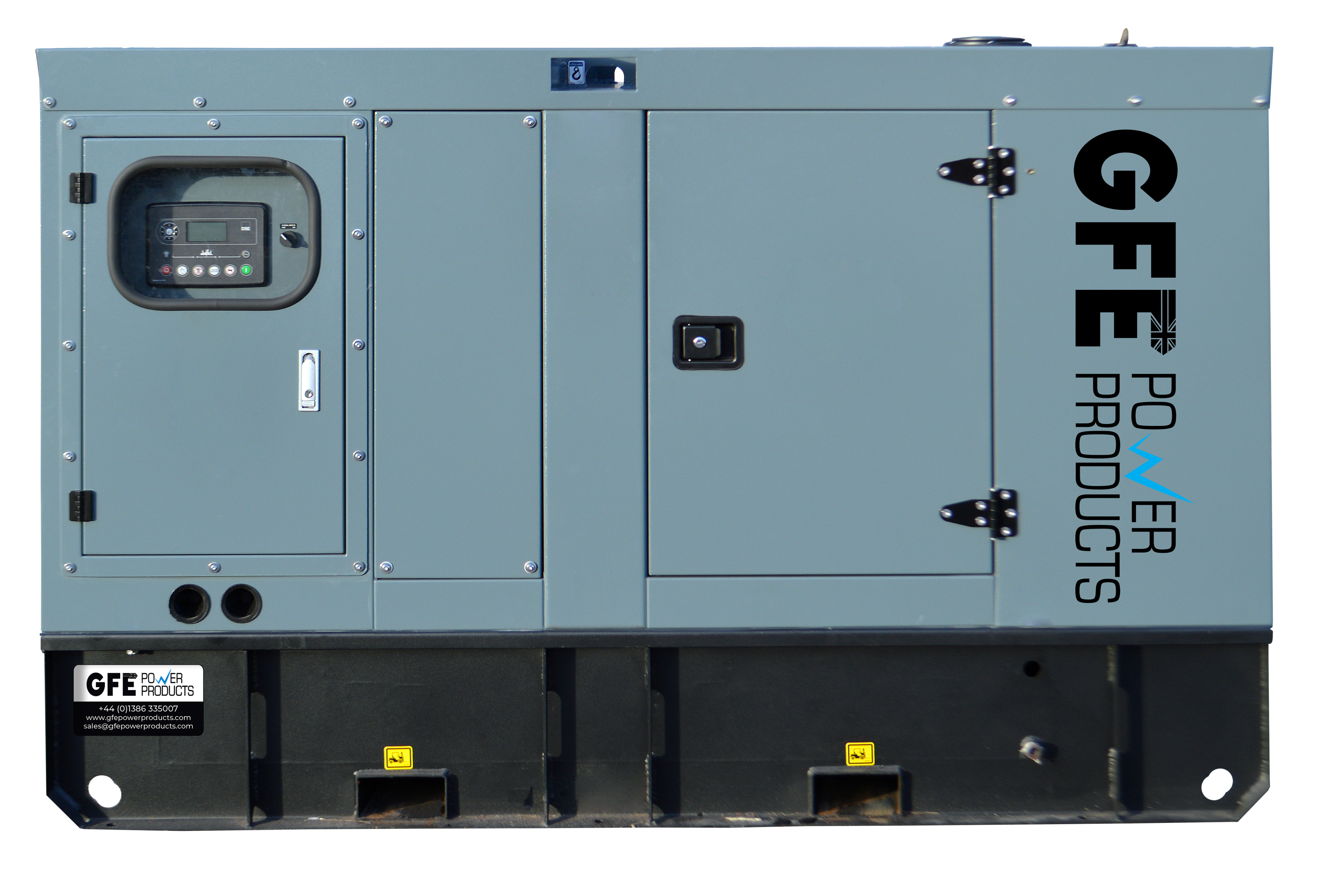

The GFE22CSC-1 is a compact single-phase diesel generator powered by a Cummins 4B3.9-G1 engine, delivering 22kVA standby power and 20kVA prime power. Designed for reliable backup power in residential, commercial, and light industrial applications, it is paired with a Stamford PI144G alternator to ensure stable and efficient power output. The generator is fitted with a Deepsea DSE6120 control panel, allowing straightforward monitoring and control of performance and load conditions. Operating at 1500rpm and 50Hz, it supplies 230V single-phase power with a rated current of 44 amps and fuel consumption of 7.1 L/h at full load. Housed within a compact sound-attenuated canopy, the GFE22CSC-1 maintains a low noise level of 72 dB(A) at 7 metres, making it a practical and dependable standby power solution for installations where single-phase supply is required.

Model reference	GFE22CSC-1 (Canopied)
Engine	Cummins 4B3.9-G1
Alternator	Stamford PI144G
Control panel	Deepsea DSE6120
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	1-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	16	20
Standby Power (ERP)	18	22

Voltage	230V
Rated current	44 Amps
Fuel consumption	@100% load L/h 7.1
Noise Level	72 dB(A) @ 7m

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	2150 x 985 x 1420	1240	100
Open

Datasheets

Generator:	Engine:	Alternator:
20kVA GFE22CSC-1	Cummins 4B3.9-G1	Stamford PI144G

Unsure What Size Generator You Need?

Selecting the correct generator size starts with understanding your power requirements. Our kVA calculator allows you to calculate the kVA needed based on your power requirements, helping you choose a generator that fits your application.

try our kva calculator
