GFE Cummins-Powered 55kVA Diesel Generator - GFE60CSC

Call Now

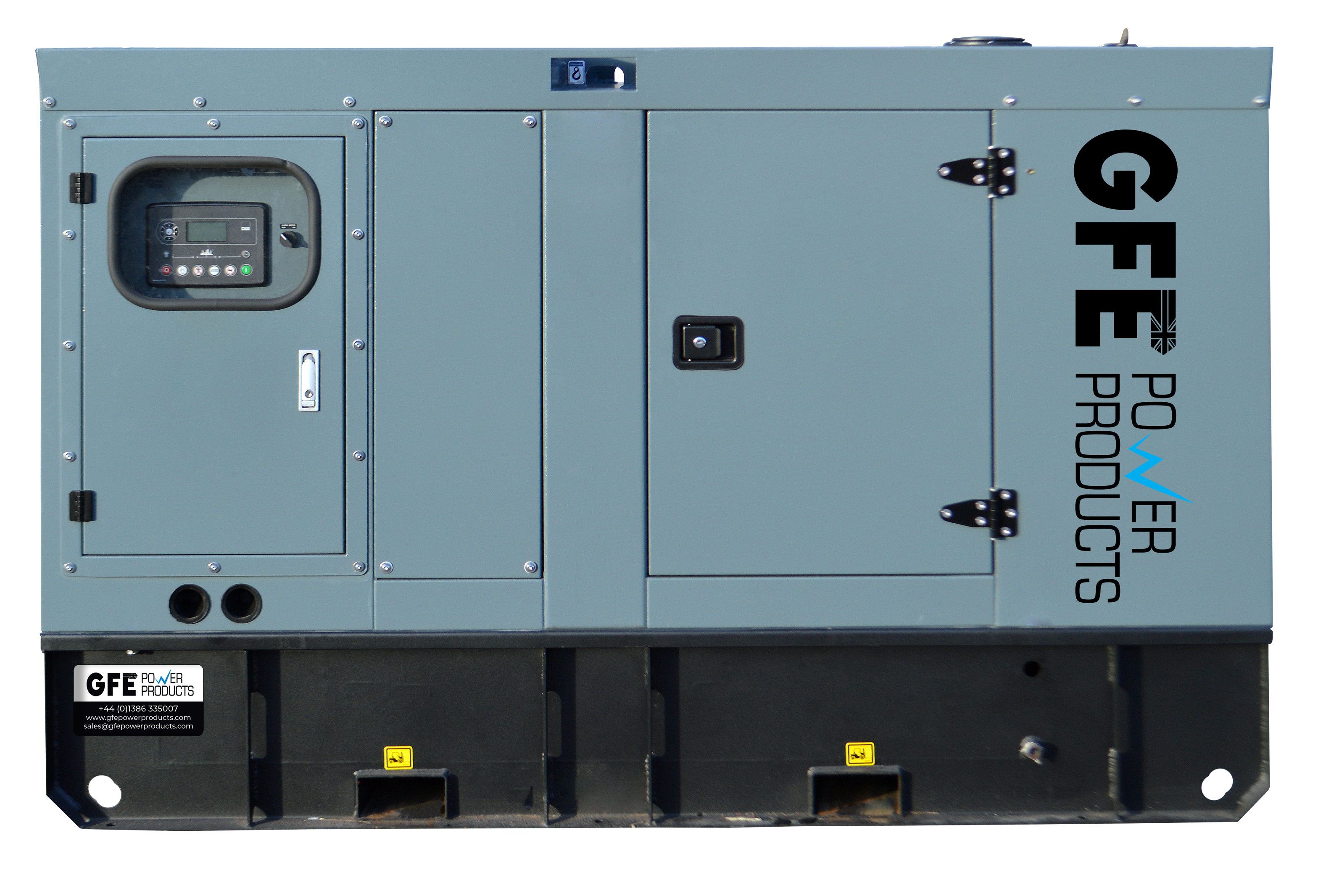

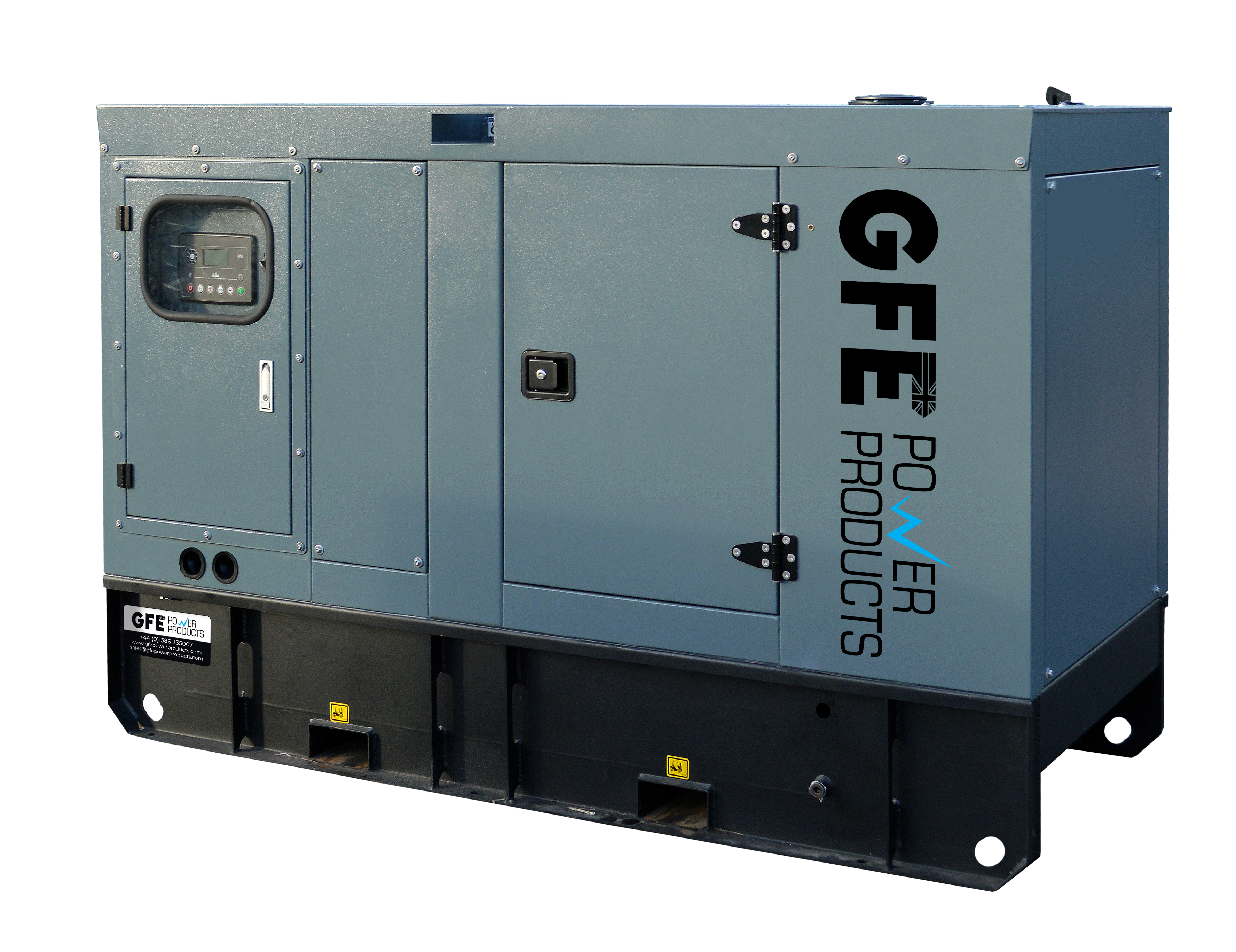

The GFE60CSC is a compact and reliable diesel generator powered by the Cummins 4BTA3.9-G2 engine, delivering 60kVA standby power and 55kVA prime power. Designed for dependable performance in commercial and backup power applications, it is paired with a Stamford S1L2-Y1 alternator to provide stable and efficient power generation. The unit is equipped with a Deepsea DSE6120 control panel for straightforward monitoring of system performance and load conditions. Operating at 1500rpm and 50Hz, it supplies 400V three-phase power with a rated current of 86 amps and fuel consumption of 14 L/h at full load. Housed in a durable canopied enclosure, the GFE60CSC maintains a low operating noise level of 73 dB(A) at 7 metres, making it suitable for a wide range of standby and prime power installations.

Model reference	GFE60CSC (Canopied)
Engine	Cummins 4BTA3.9-G2
Alternator	Stamford S1L2-Y1
Control panel	Deepsea DSE6120
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	44	55
Standby Power (ERP)	48	60

Voltage	400V
Rated current	86 Amps
Fuel consumption	@100% load L/h 14
Noise Level	73 dB(A) at 7m

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	2450 x 1065 x 1485	1400	110
Open

Datasheets

Generator:	Engine:	Alternator:
55kVA GFE60CSC	Cummins 4BTA3.9G2	Stamford S1L2-Y1

Unsure What Size Generator You Need?

Selecting the correct generator size starts with understanding your power requirements. Our kVA calculator allows you to calculate the kVA needed based on your power requirements, helping you choose a generator that fits your application.

try our kva calculator
