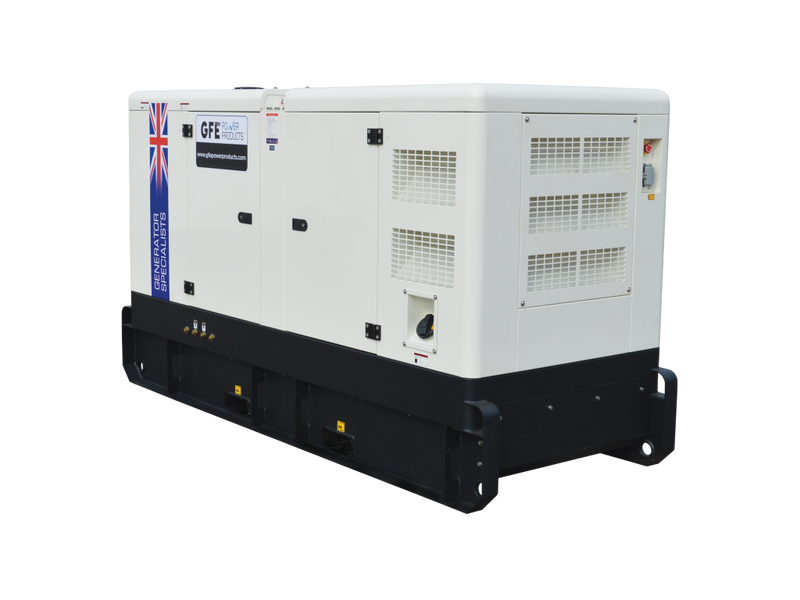

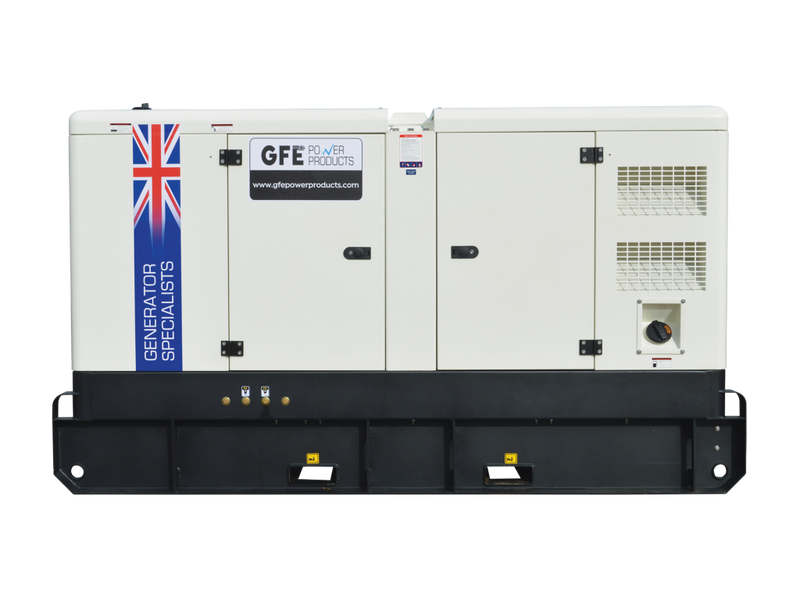

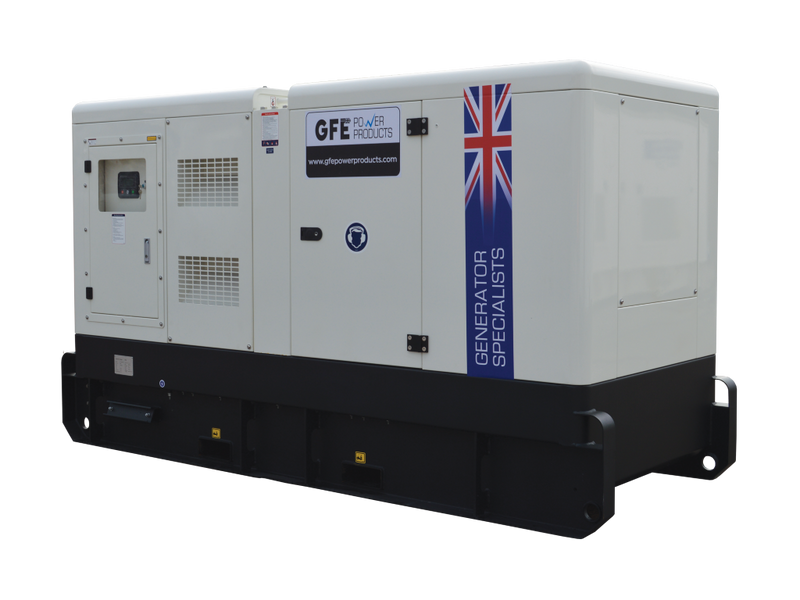

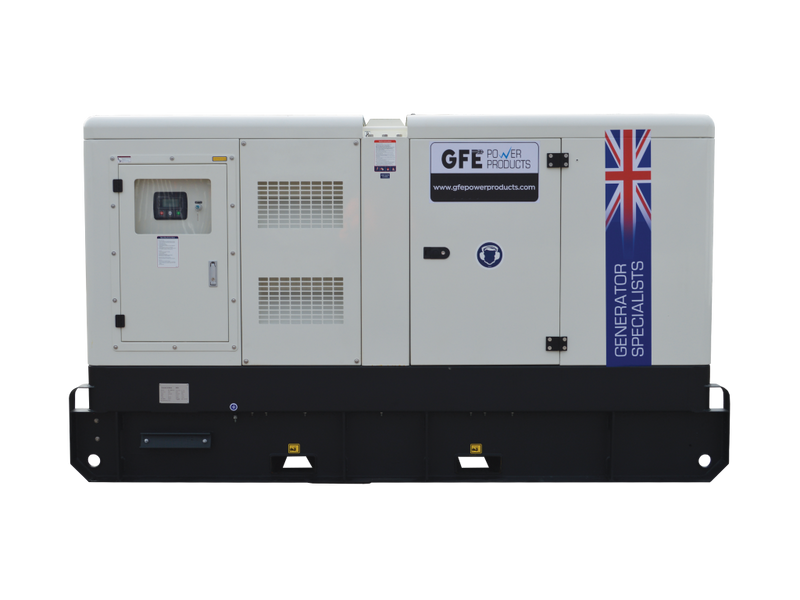

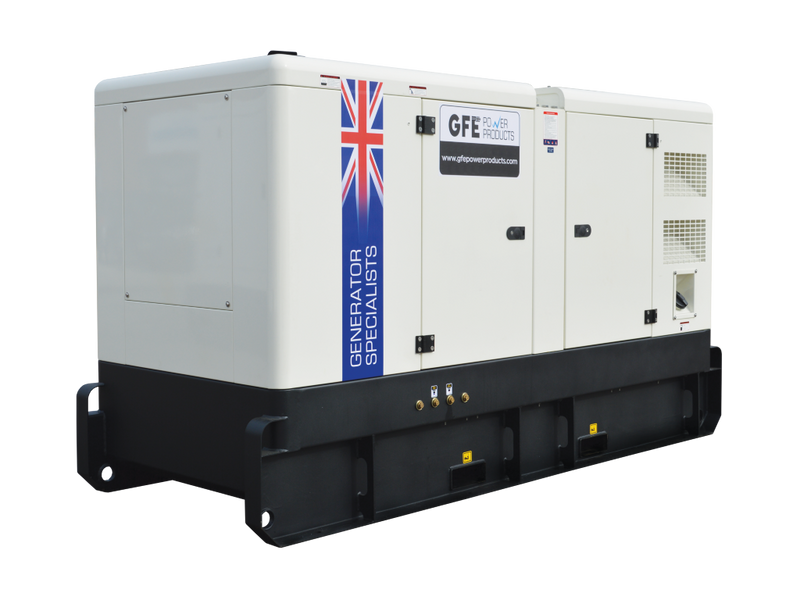

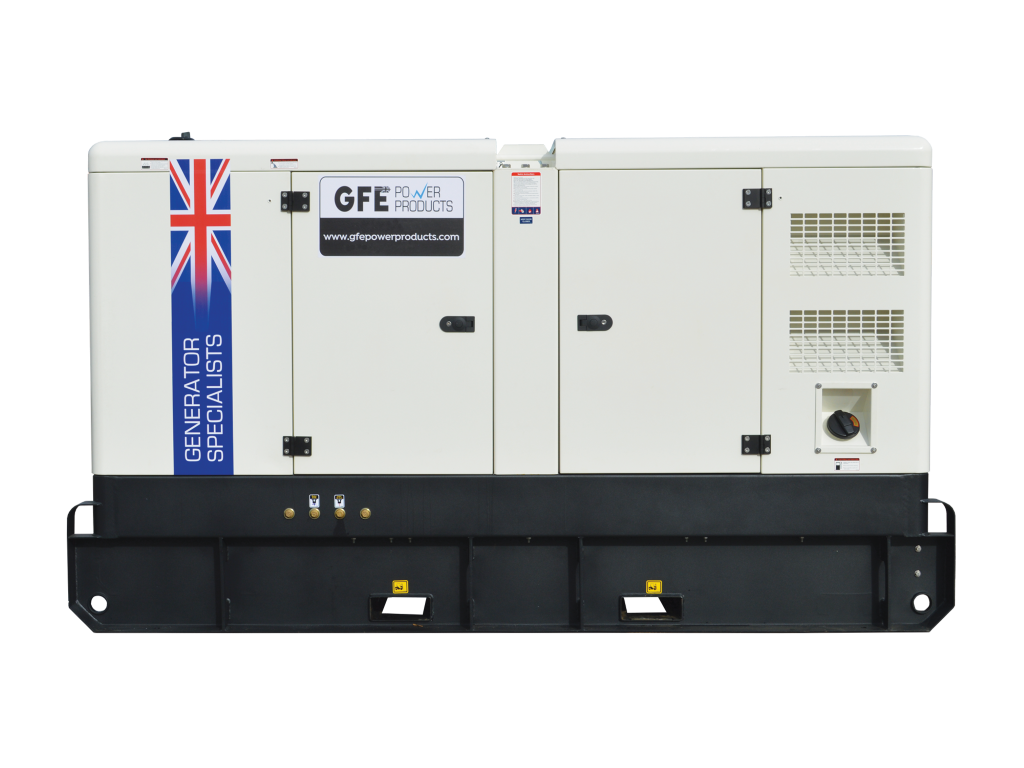

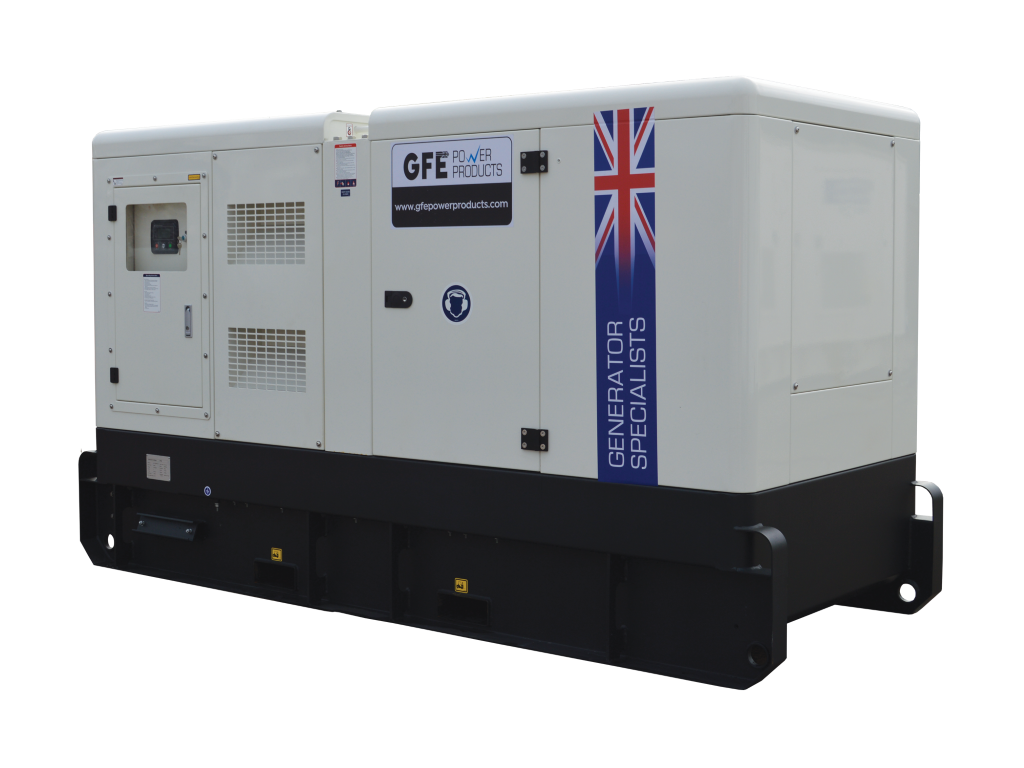

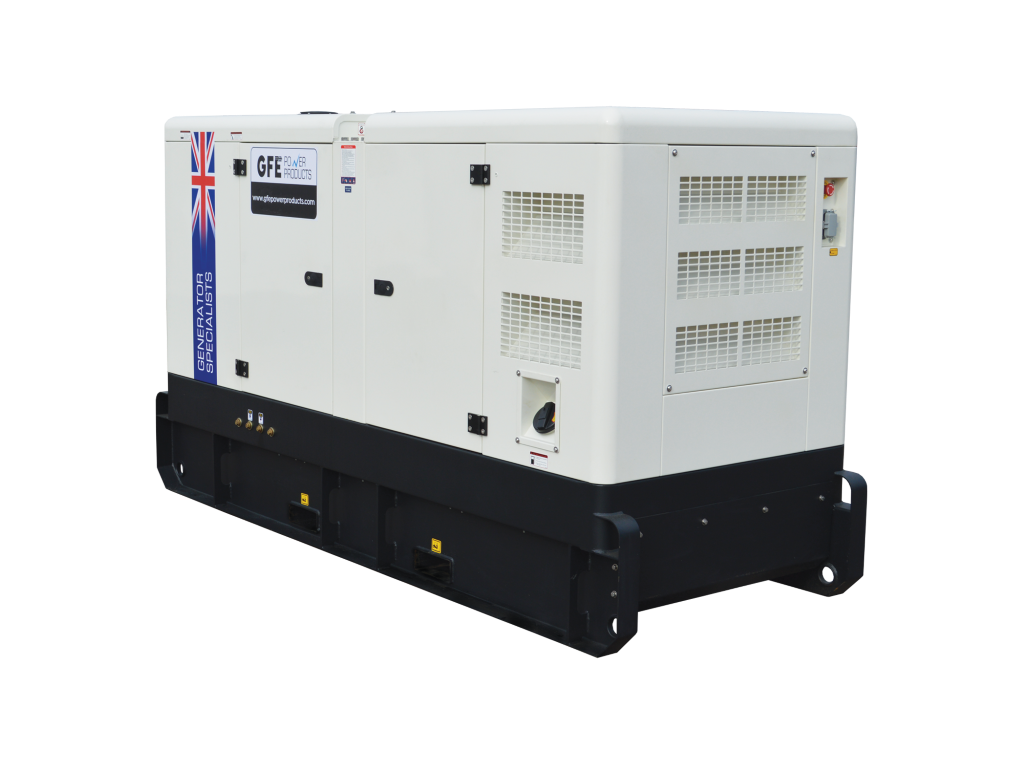

Perkins 110kVA Diesel Generator - GFE110PLC

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

The 89-250 kVA GFE Perkins Powered range is suitable for a variety of industrial applications including agricultural, business, and industrial use. Designed with Leroy Somers TAL range of alternators and Deepsea controllers as standard, this range provides reliable power for businesses and industry 24/7.

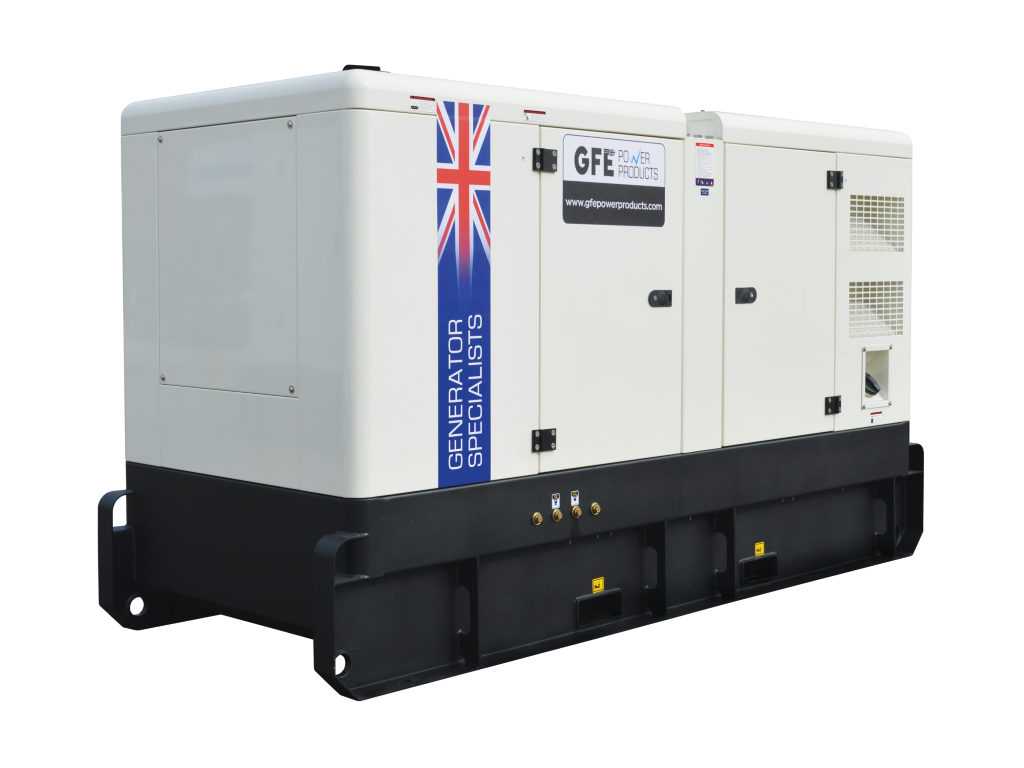

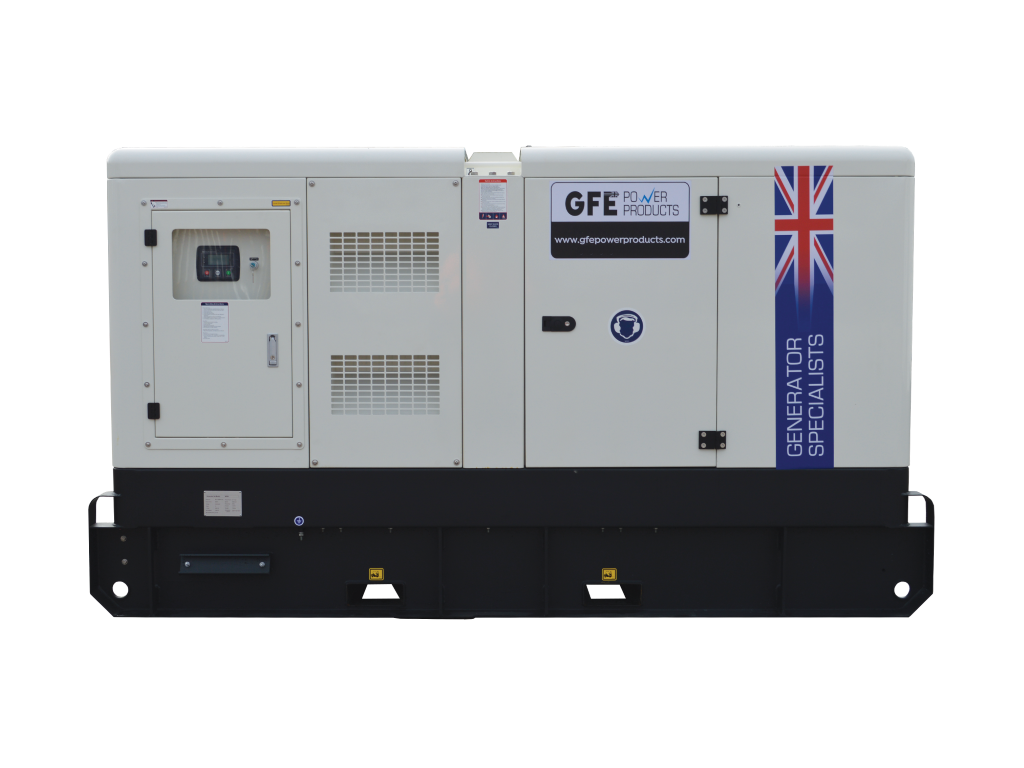

Model reference GFE110PLC (Canopied) / GFE110PLO (Open)
Engine Perkins 1104C-44TAG2
Alternator Leroy Somer TAL-044-D
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 81.4 101.4
Standby Power (ERP)
89.6 111.9

Voltage
400V
Rated current 146 Amps
Fuel consumption @100% load L/h 22.6



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 2800 x 1130 x 1580 1720 280
Open 2375 x 750 x 1500 1250
180
