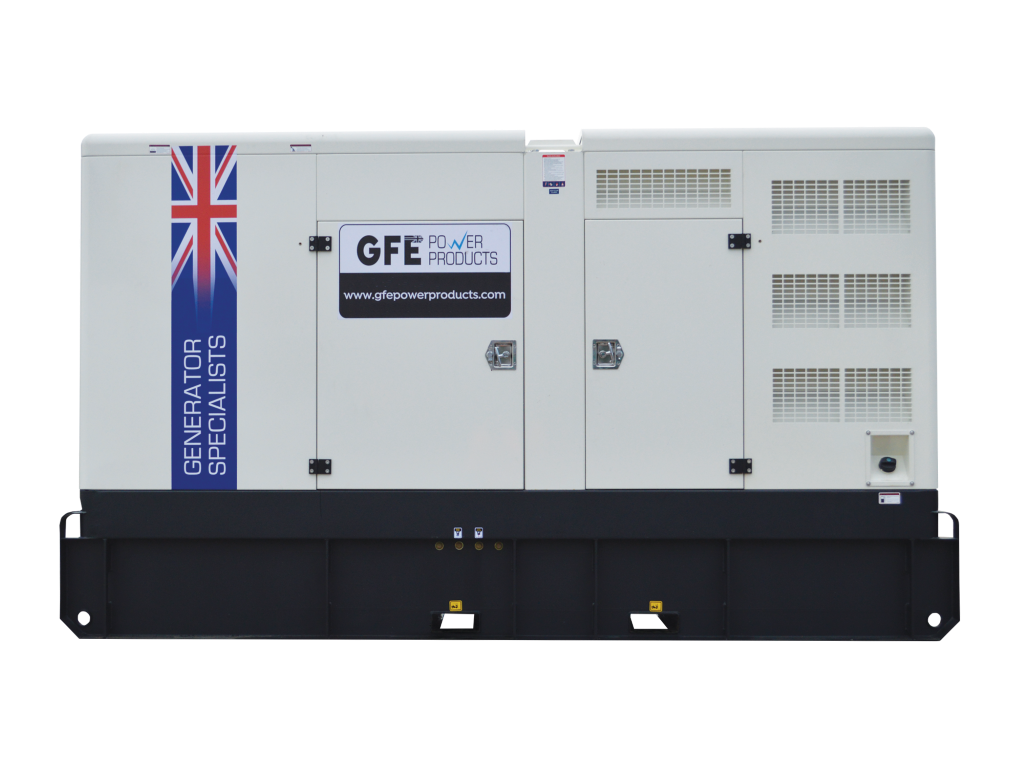

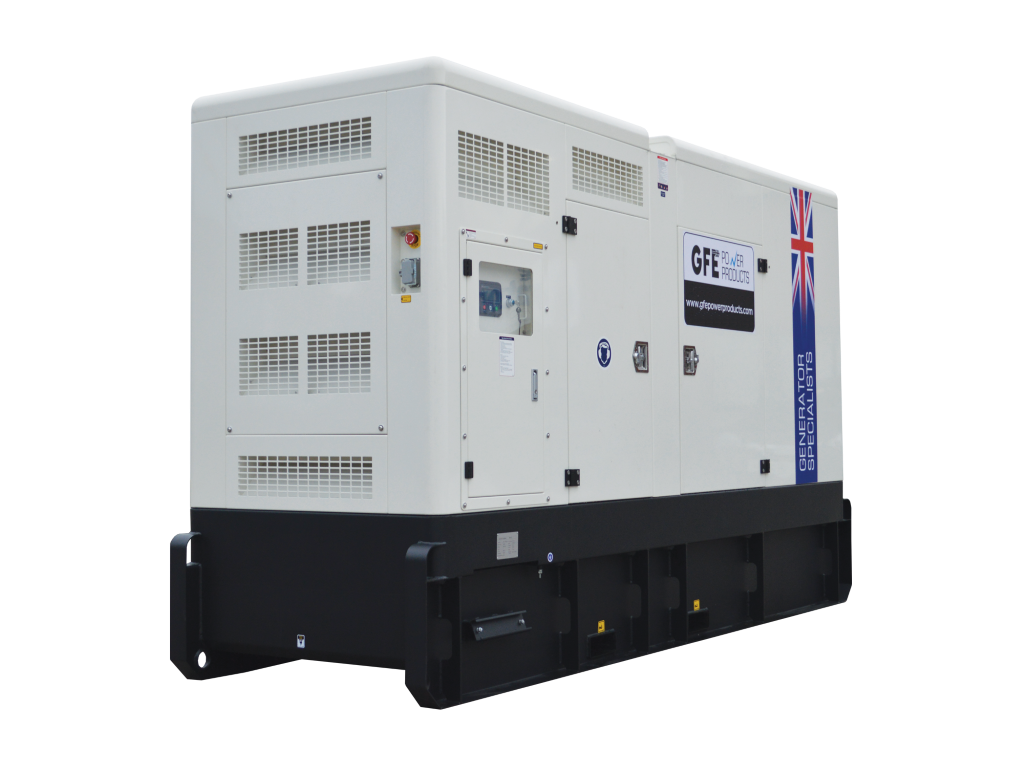

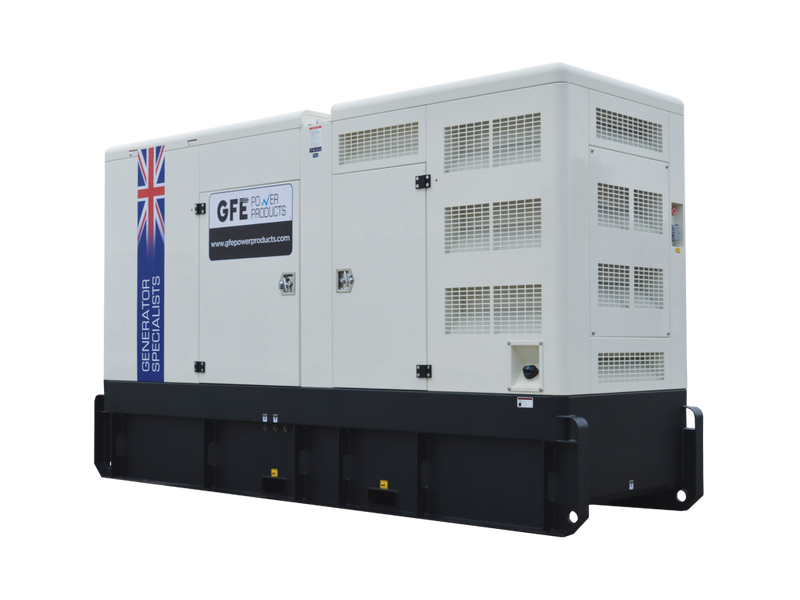

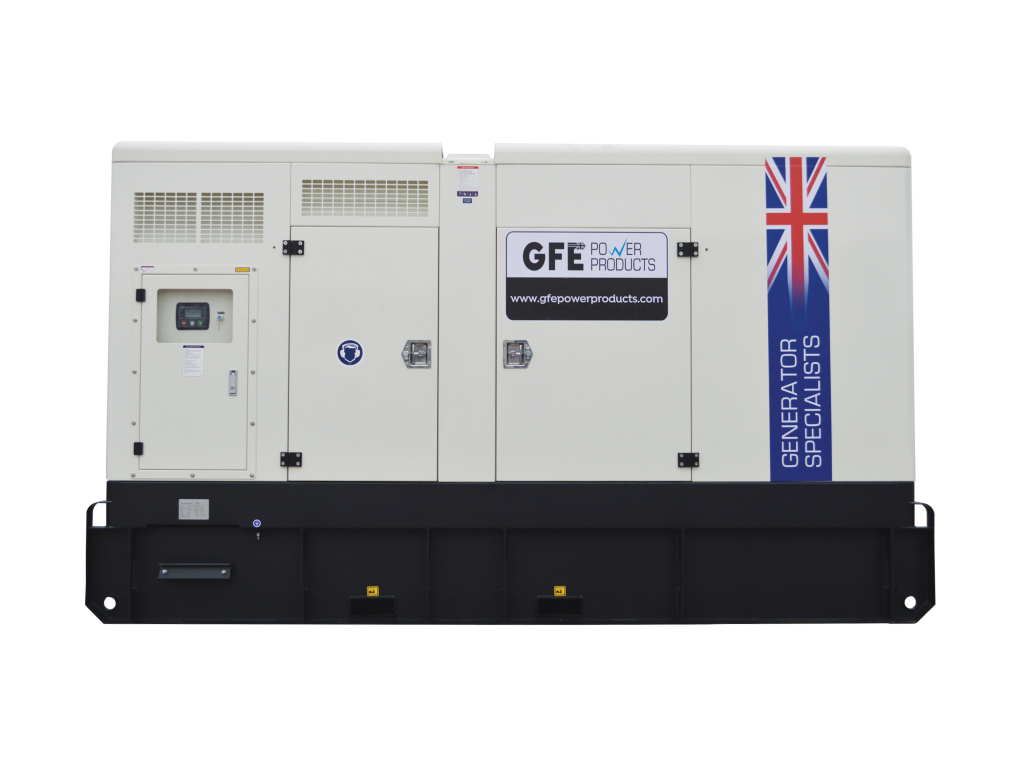

Perkins 165kVA Diesel Generator - GFE165PLC

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

The 89-250 kVA GFE Perkins Powered range is suitable for a variety of industrial applications including agricultural, business, and industrial use. Designed with Leroy Somers TAL range of alternators and Deepsea controllers as standard, this range provides reliable power for businesses and industry 24/7.

Model reference GFE165PLC (Canopied) / GFE165PLO (Open)
Engine Perkins 1106A-70TAG2
Alternator Leroy Somer TAL-A44-J
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 120 150
Standby Power (ERP)
132 165

Voltage
400V
Rated current 217 Amps
Fuel consumption @100% load L/h 33.4



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 3600 x 1130 x 2080 2600 530
Open 2670 x 855 x 1530 1580
250


Datasheets

 GFE165PLC Engine Alternator
Housing:
Tank:
