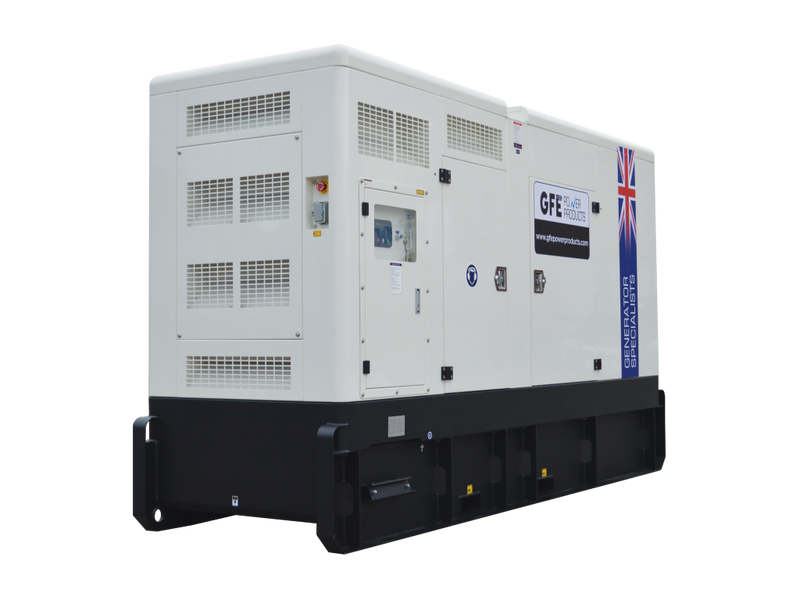

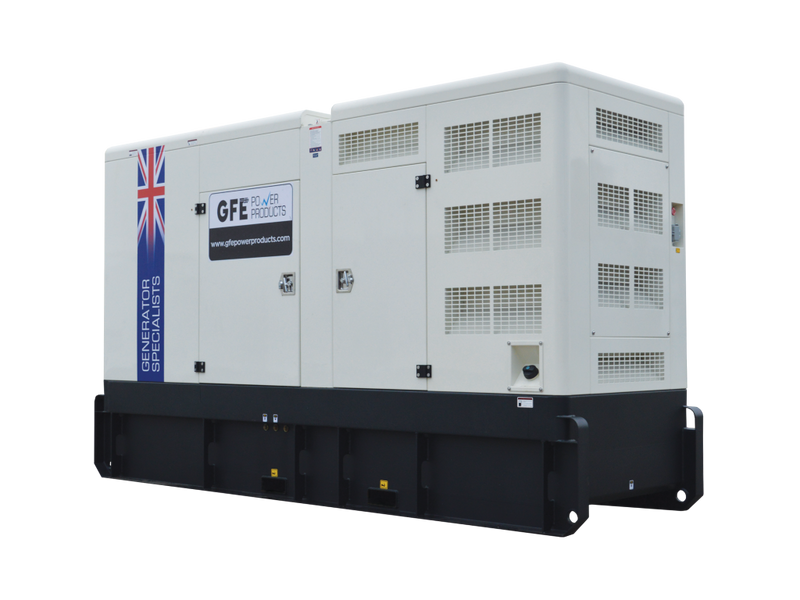

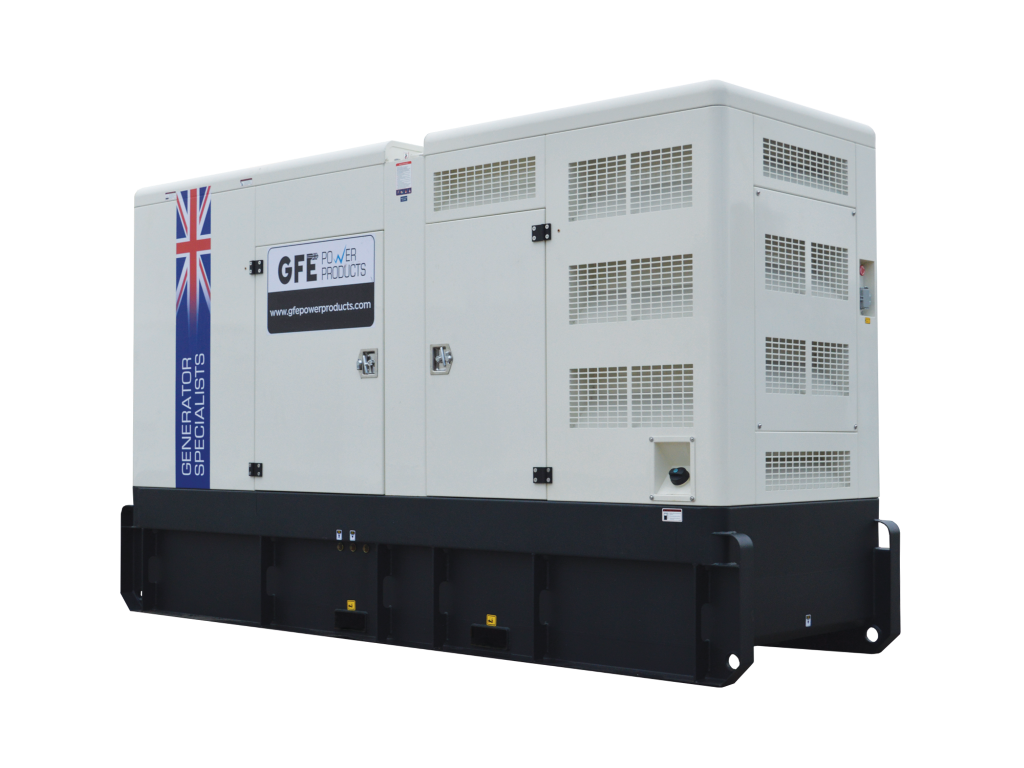

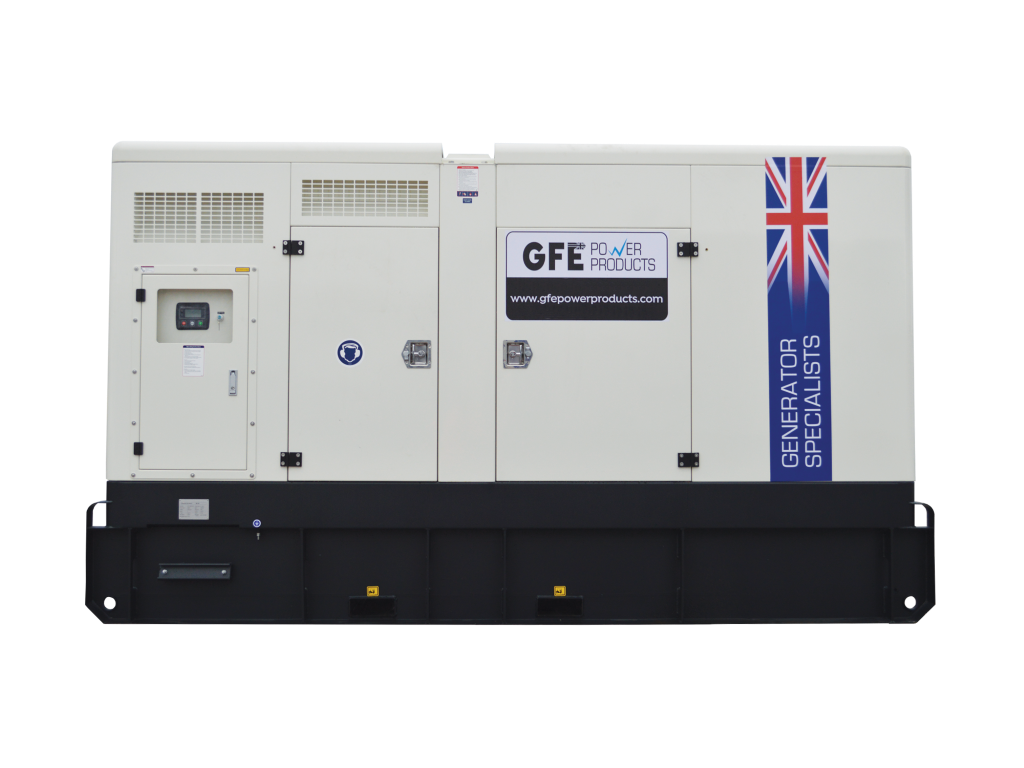

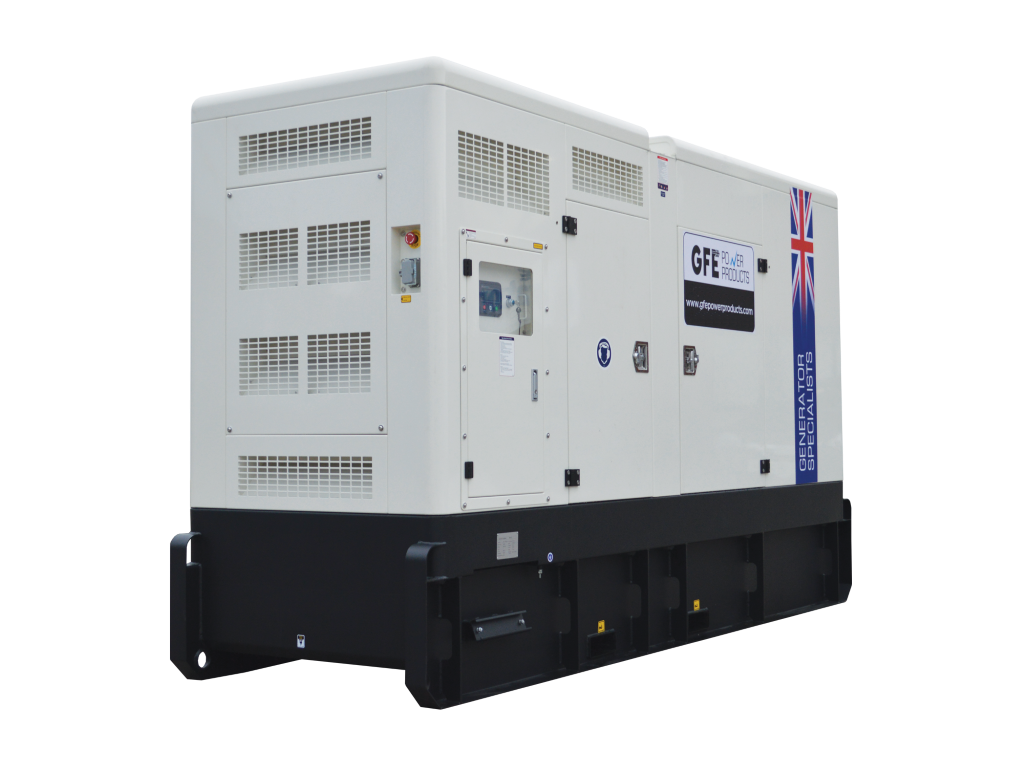

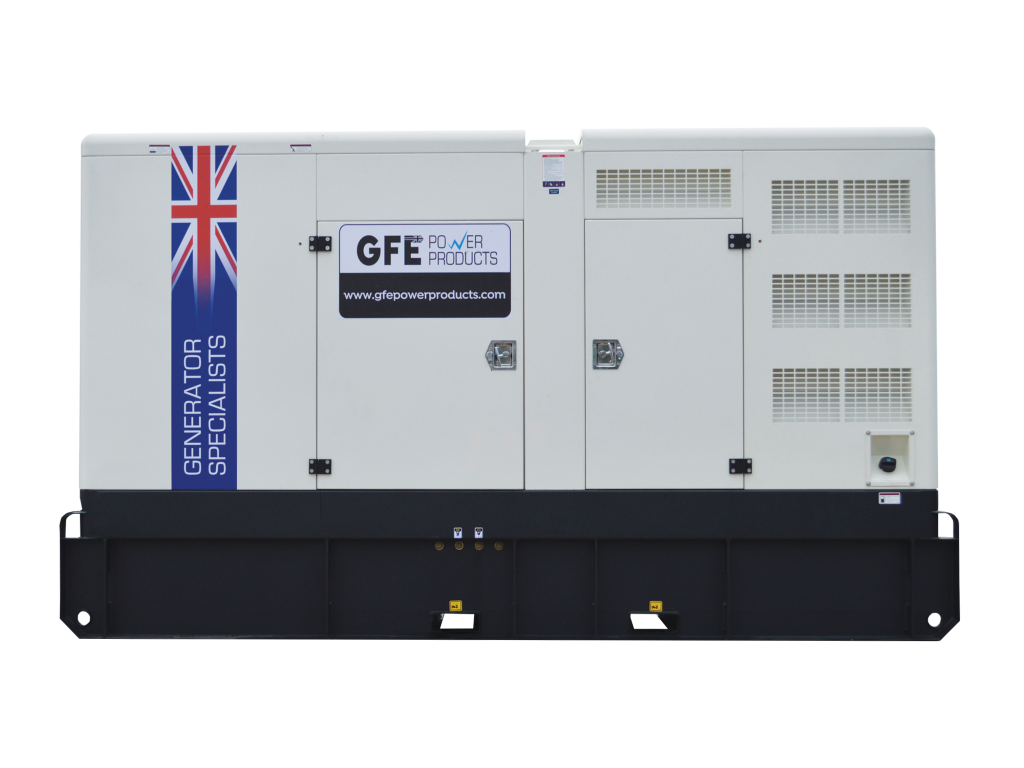

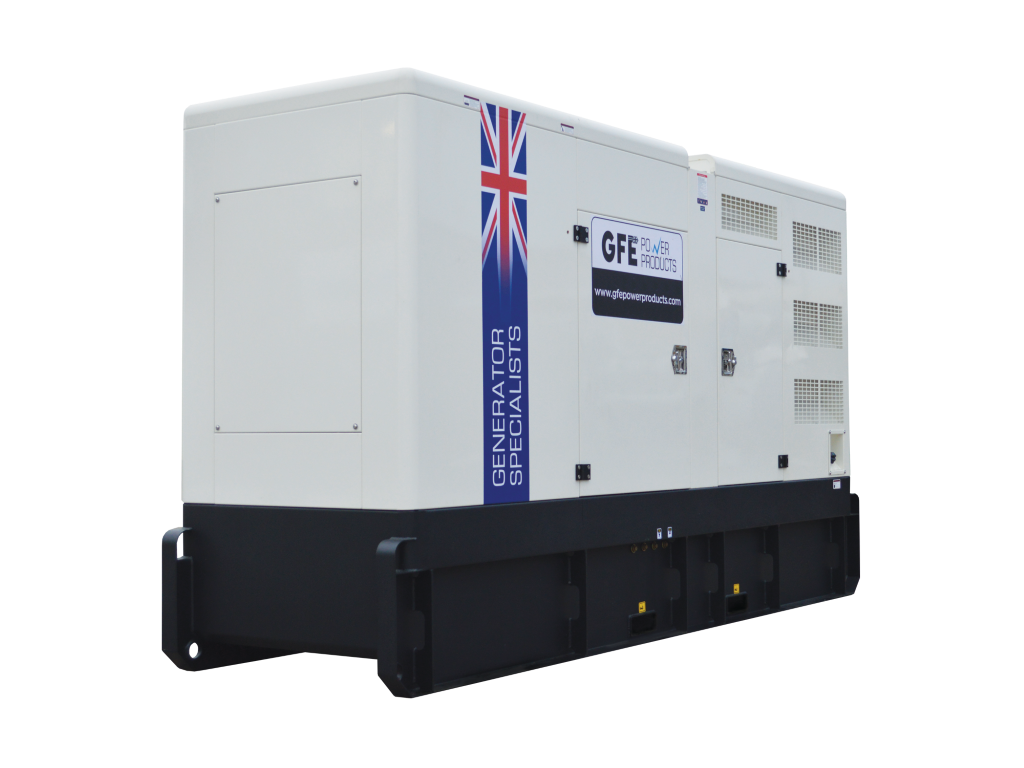

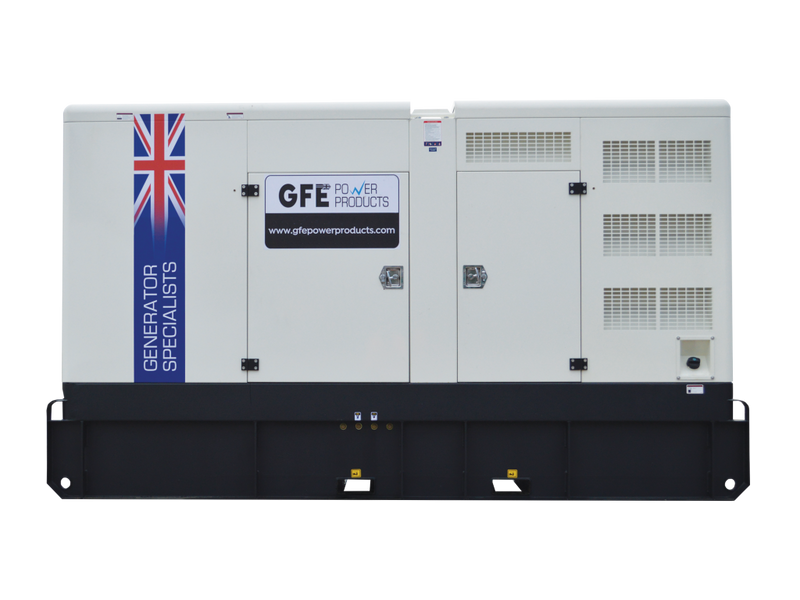

Perkins GFE275PLC 275kVA

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. Built around world class Perkins engines and incorporating Leroy Somers alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial.

Model reference GFE275PLC (Canopied) / GFE275PLO (Open)
Engine Perkins 1206A-E70TTAG3
Alternator Leroy Somer TAL-046-D
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 200 250
Standby Power (ERP)
220 275

Voltage
400V
Rated current 361 Amps
Fuel consumption @100% load L/h 56.9



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 3600 x 1330 x 1970 3450 495
Open 2980 x 1055 x 1730 2370 250


Datasheets

 GFE275PLC Engine Alternator
Housing:
Tank:
