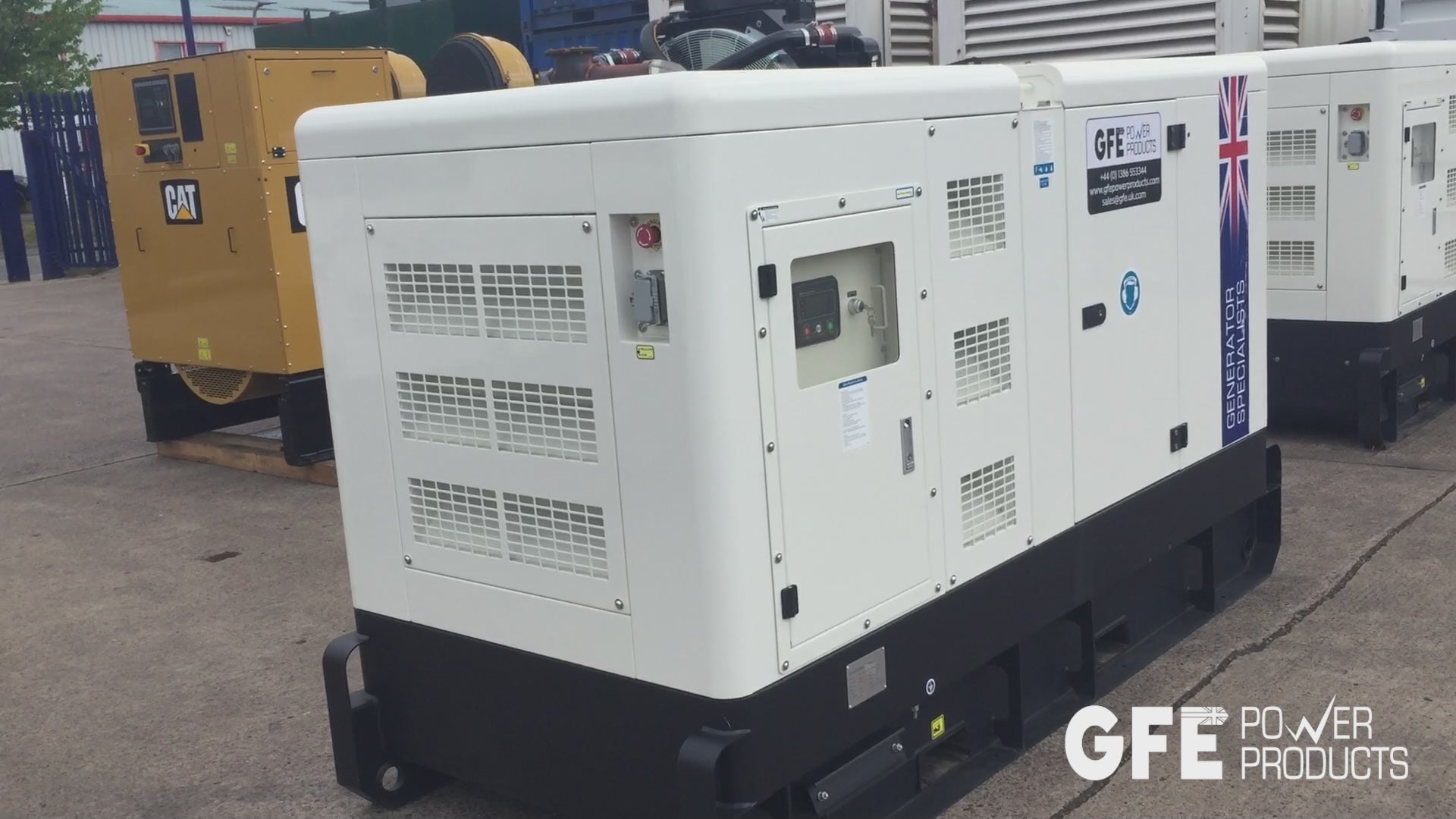

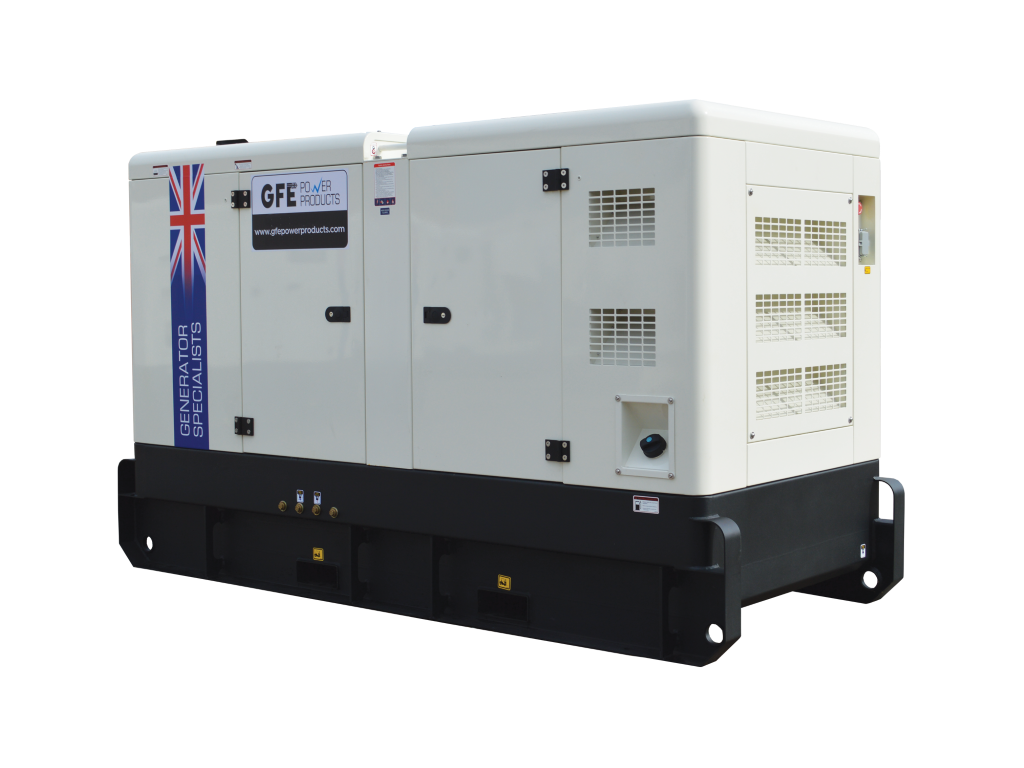

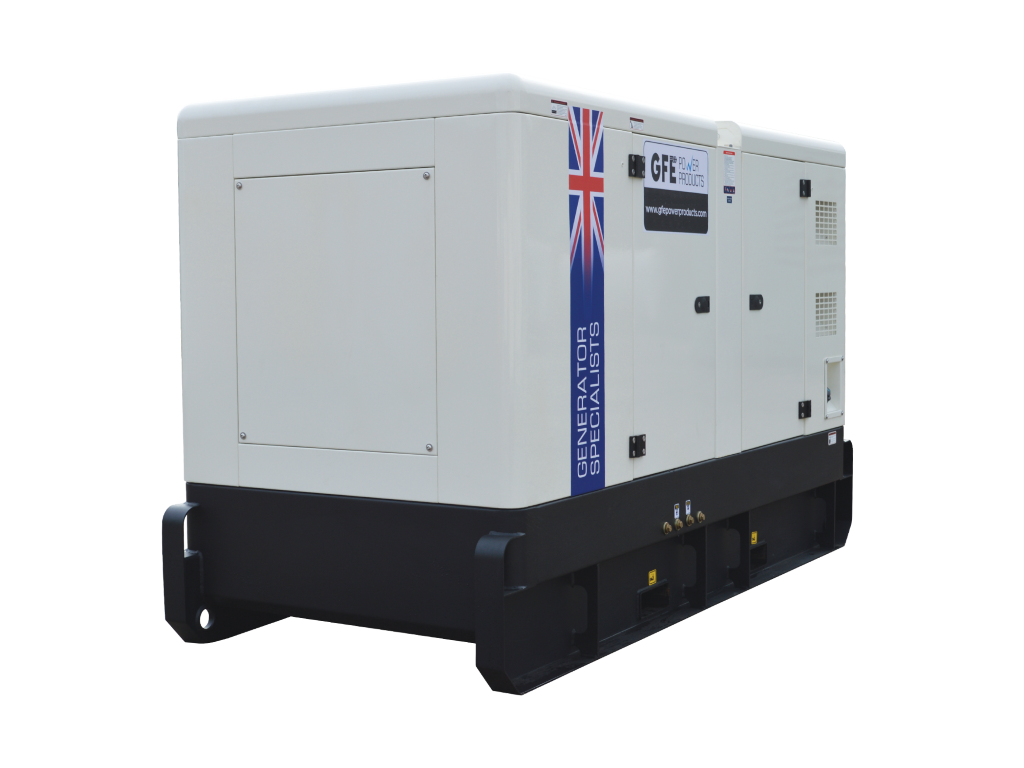

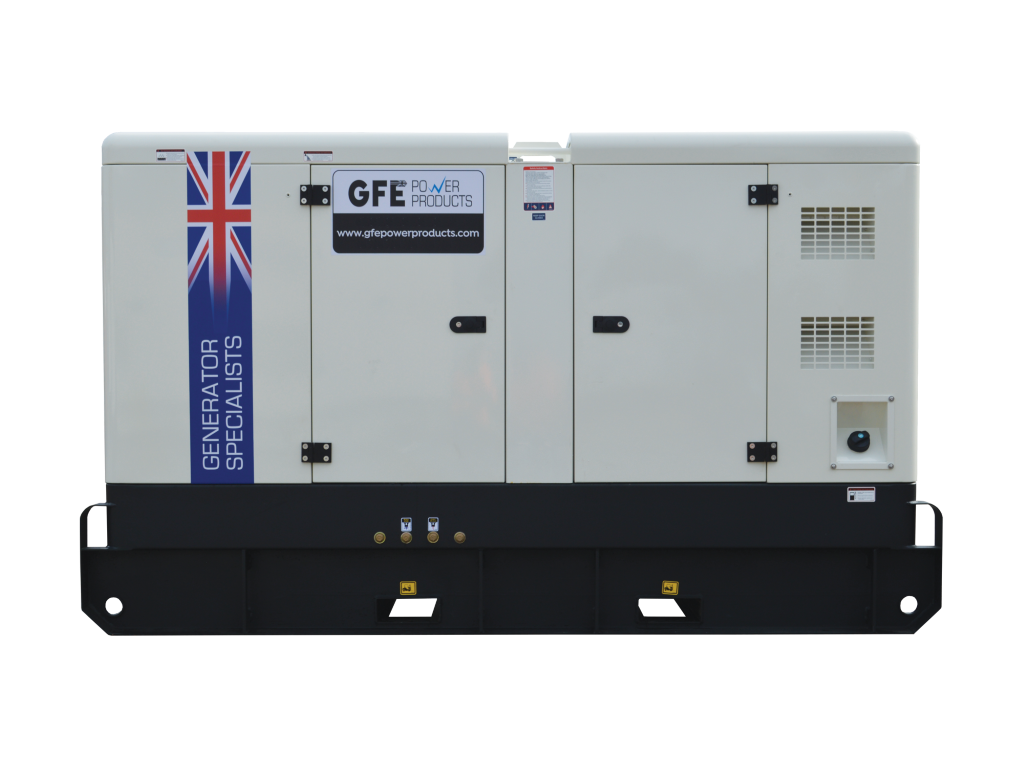

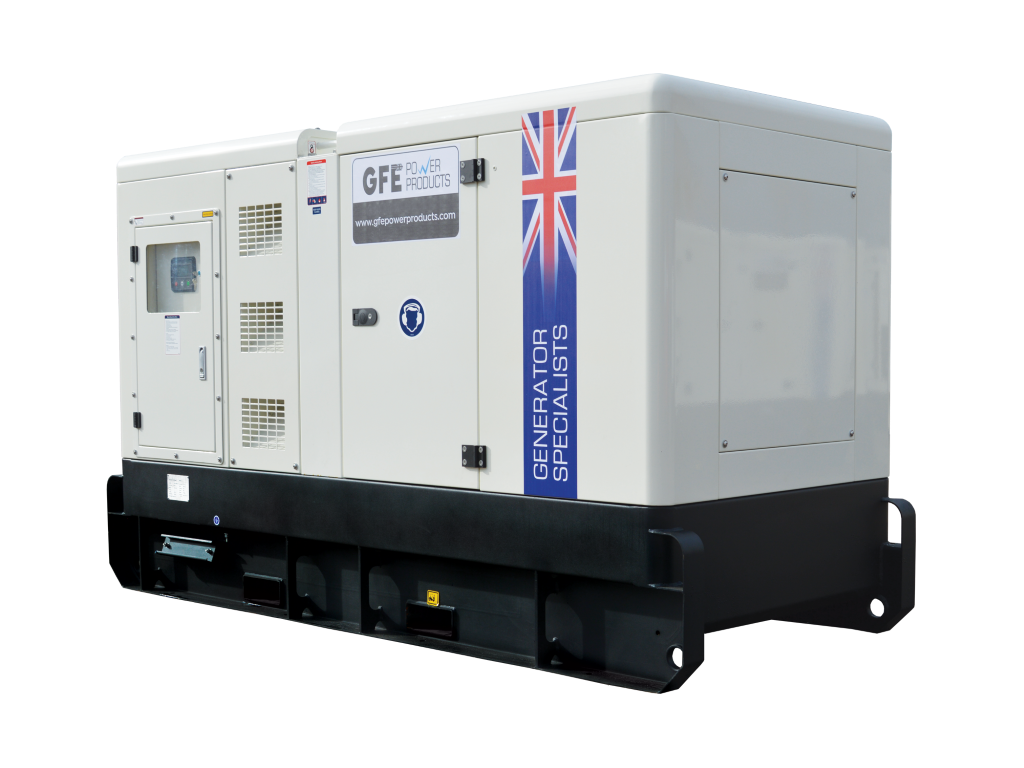

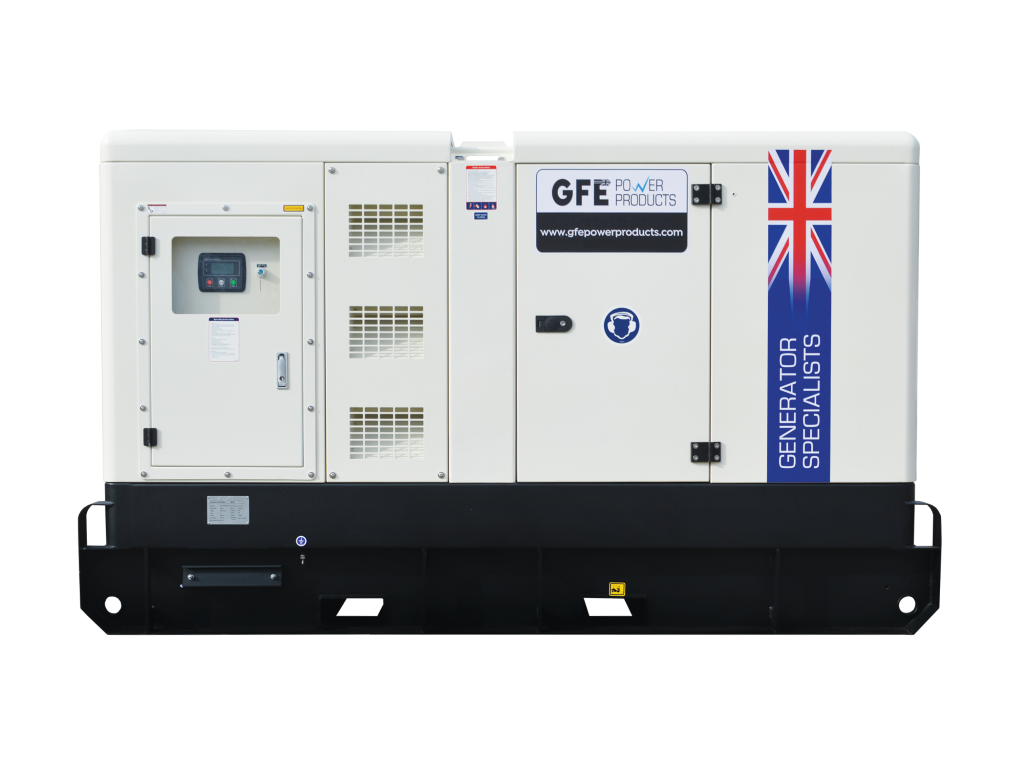

Perkins 45kVA Diesel Generator - GFE50PLC-PRO

Housing:
Tank:

The compact GFE Perkins PRO Powered diesel range offers remarkable performance. Featuring world-famous Leroy Somers alternators and standard Deepsea control panels, this range is perfect for confined spaces or minimising logistics expenses. With a broad selection in stock, we provide the right power solution to meet your needs, be it for economy, emissions, or speed of delivery.

Model reference GFE50PLC-PRO (Canopied) / GFE50PLO-PRO (Open)
Engine Perkins 1103A-33TG1
Alternator Leroy Somer TAL-042-C
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 36 45
Standby Power (ERP)
39.7 49.6


Voltage
400V
Rated current 65 Amps
Fuel consumption @100% load L/h 10.7



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 2600 x 1130 x 1540 1450 190
Open 1960 x 700 x 1350 1140
140


Datasheets

 GFE50PLC Engine Alternator
