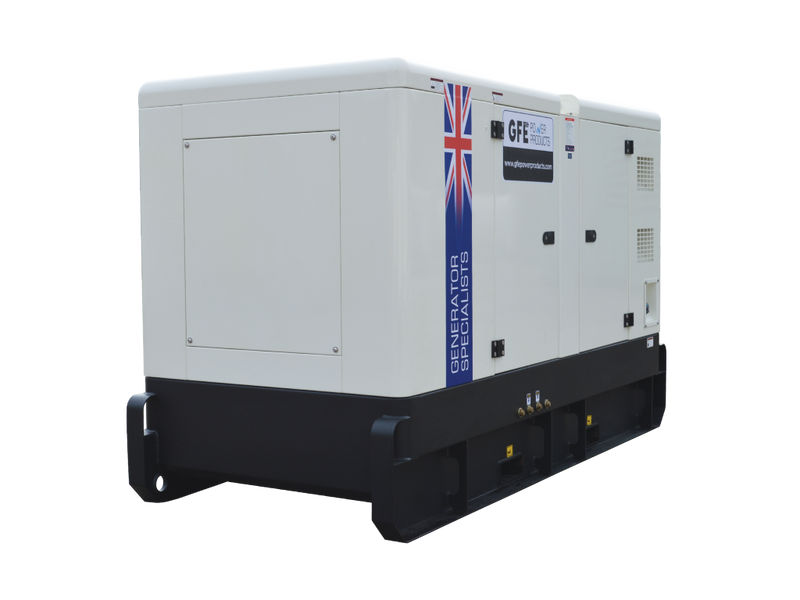

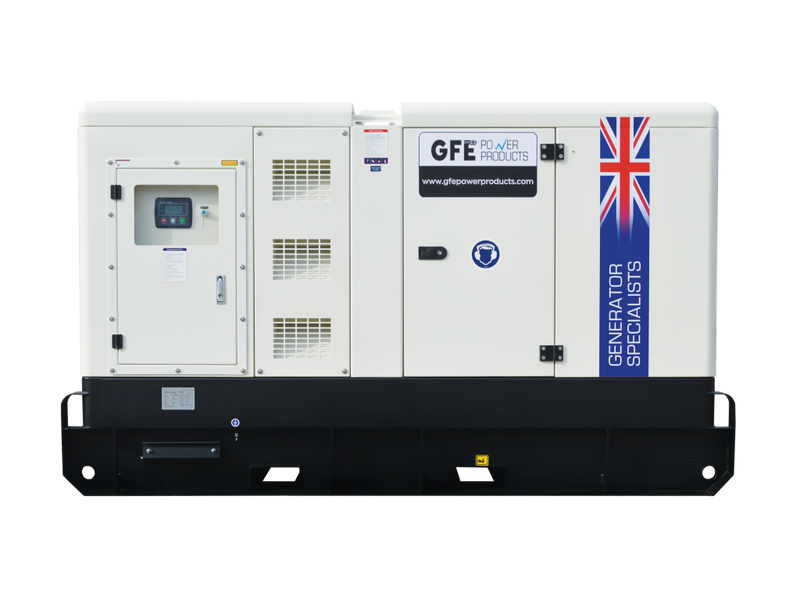

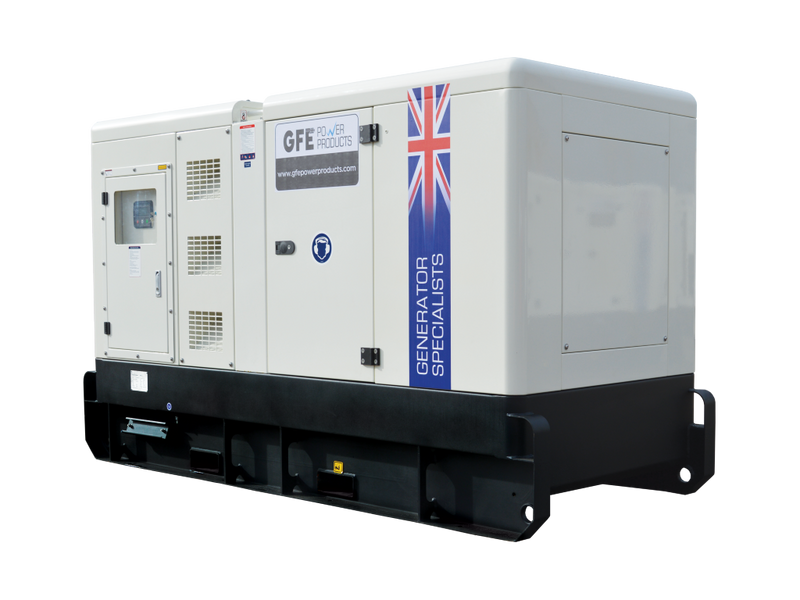

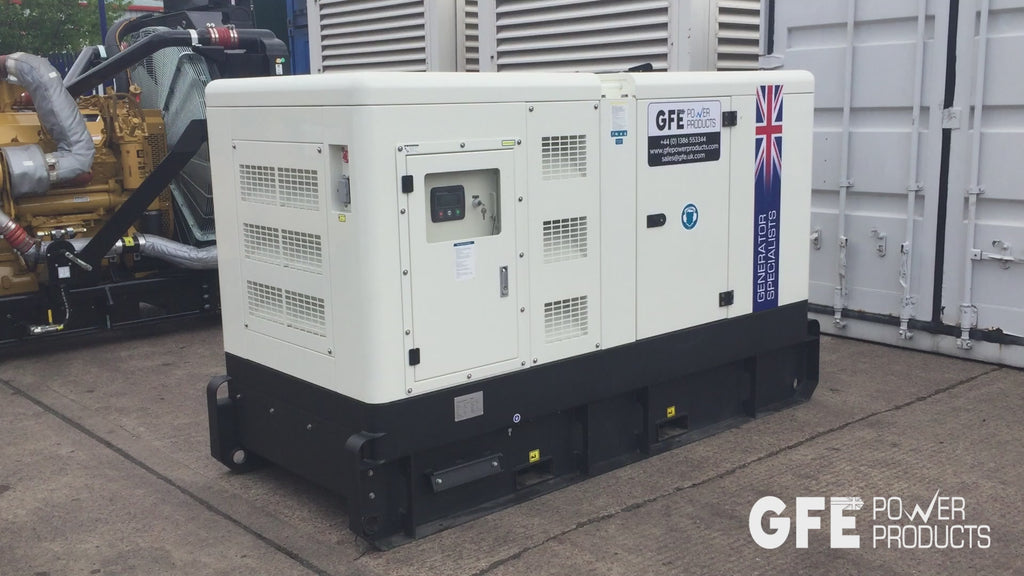

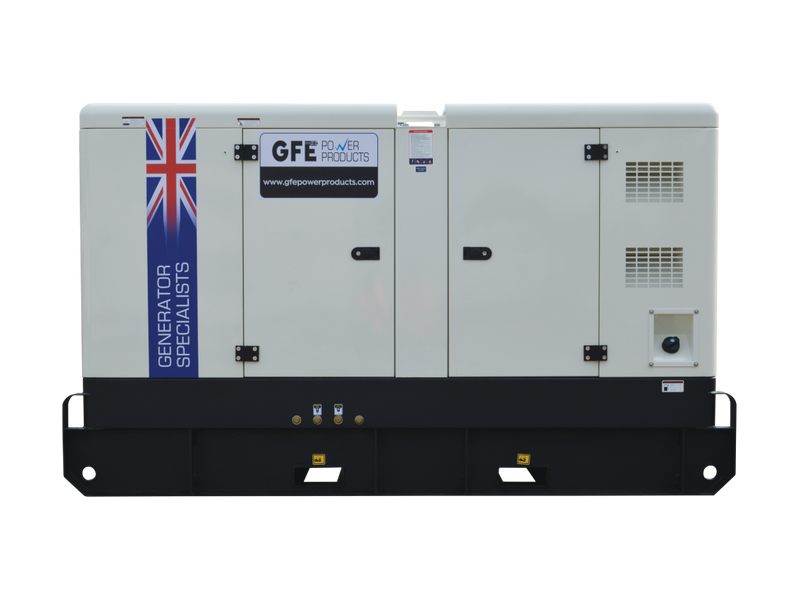

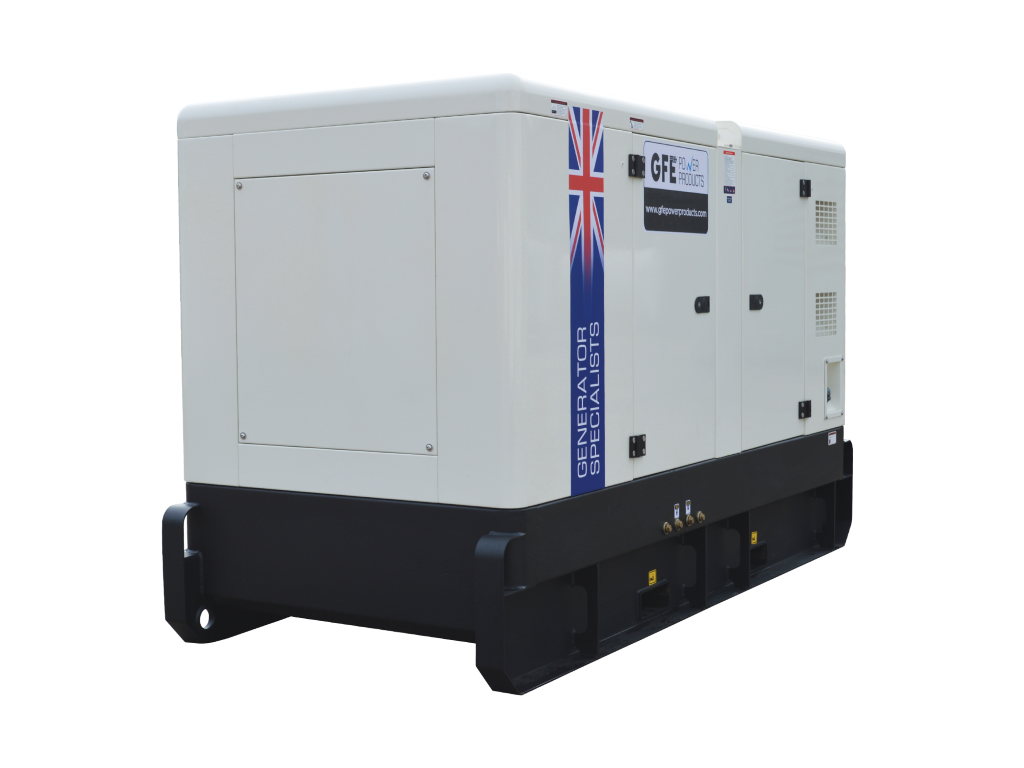

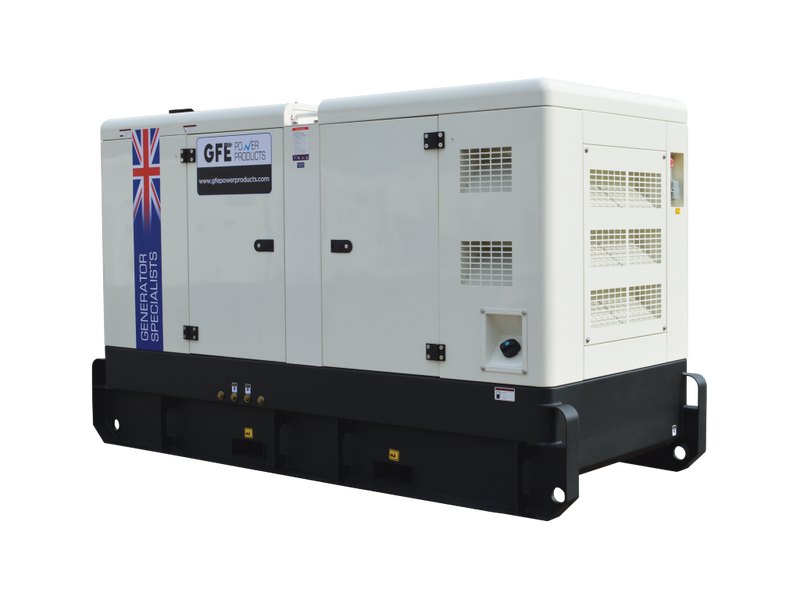

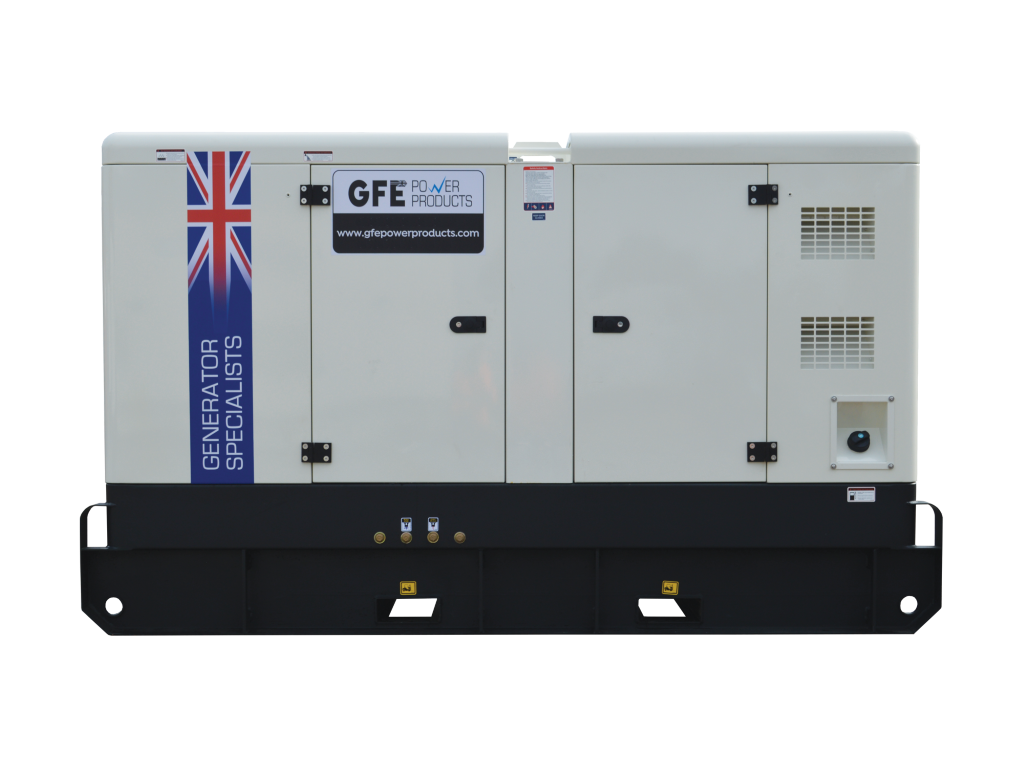

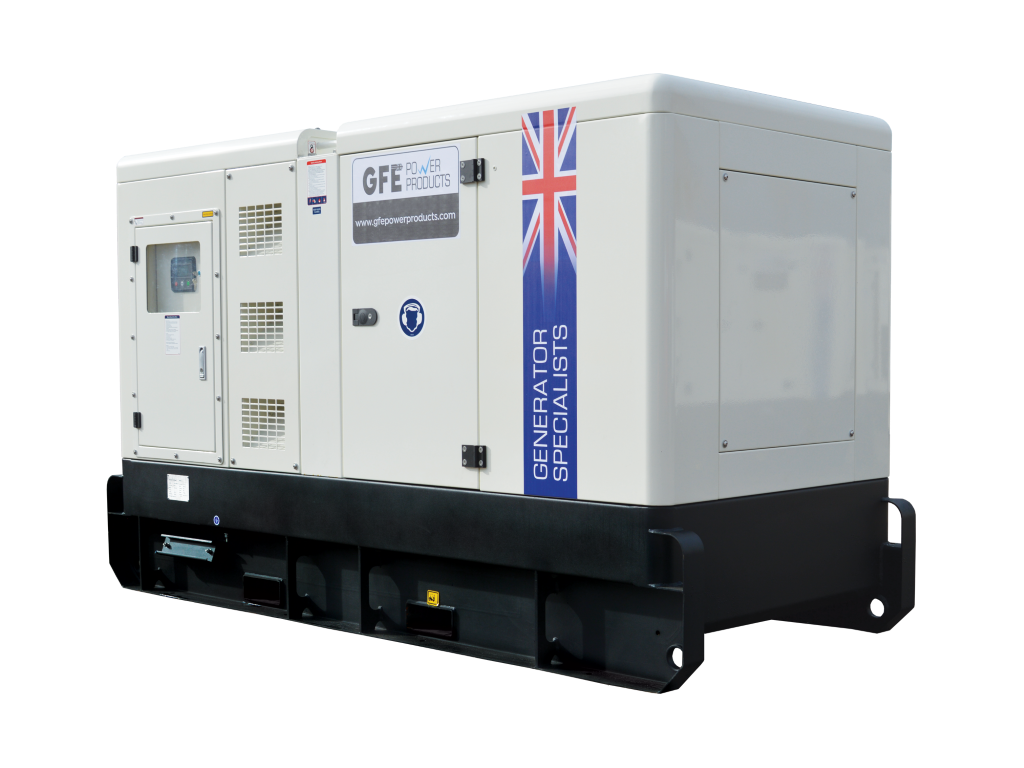

Perkins 66kVA Diesel Generator - GFE66PLC

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

Our most compact GFE Perkins Powered diesel range packs a punch. With world renowned Leroy Somers alternators and Deepsea control panels fitted as standard. This range is ideal for when you have limited space on site, or you are looking towards lower logistics costs. Our breadth of stock means that whether your focus is on economy, emissions and/or speed of delivery we have the right power solution for you.

Model reference GFE66PLC (Canopied) / GFE66PLO (Open)
Engine Perkins 1103A-33TG2
Alternator Leroy Somer TAL-A42-H
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 48 60
Standby Power (ERP)
52.8 66

Voltage
400V
Rated current 87 Amps
Fuel consumption @100% load L/h 13.9



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 2600 x 1130 x 1540 1450 190
Open 2050 x 700 x 1350
1220
155


Datasheets

 GFE66PLC Engine Alternator



Housing:
Tank:
