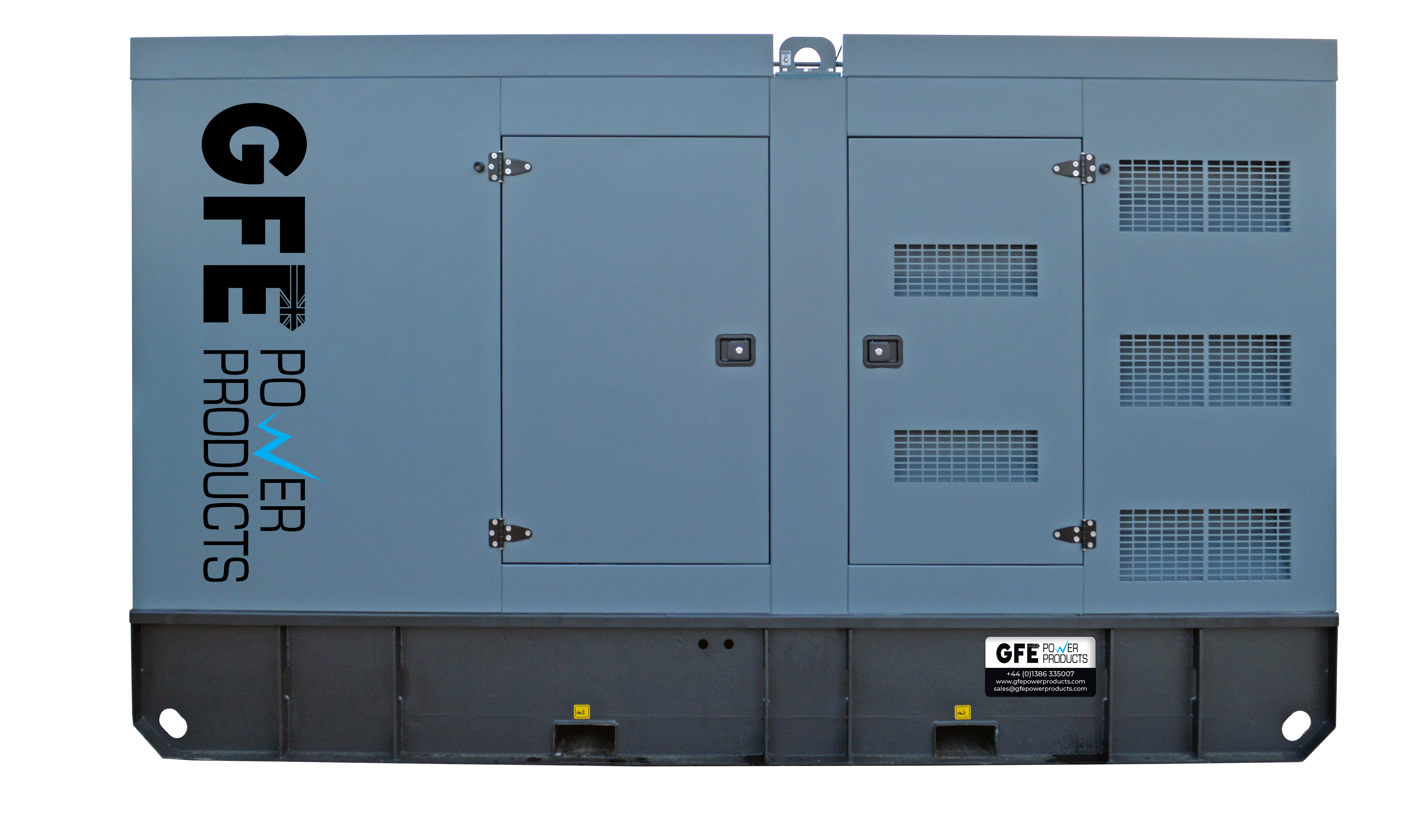

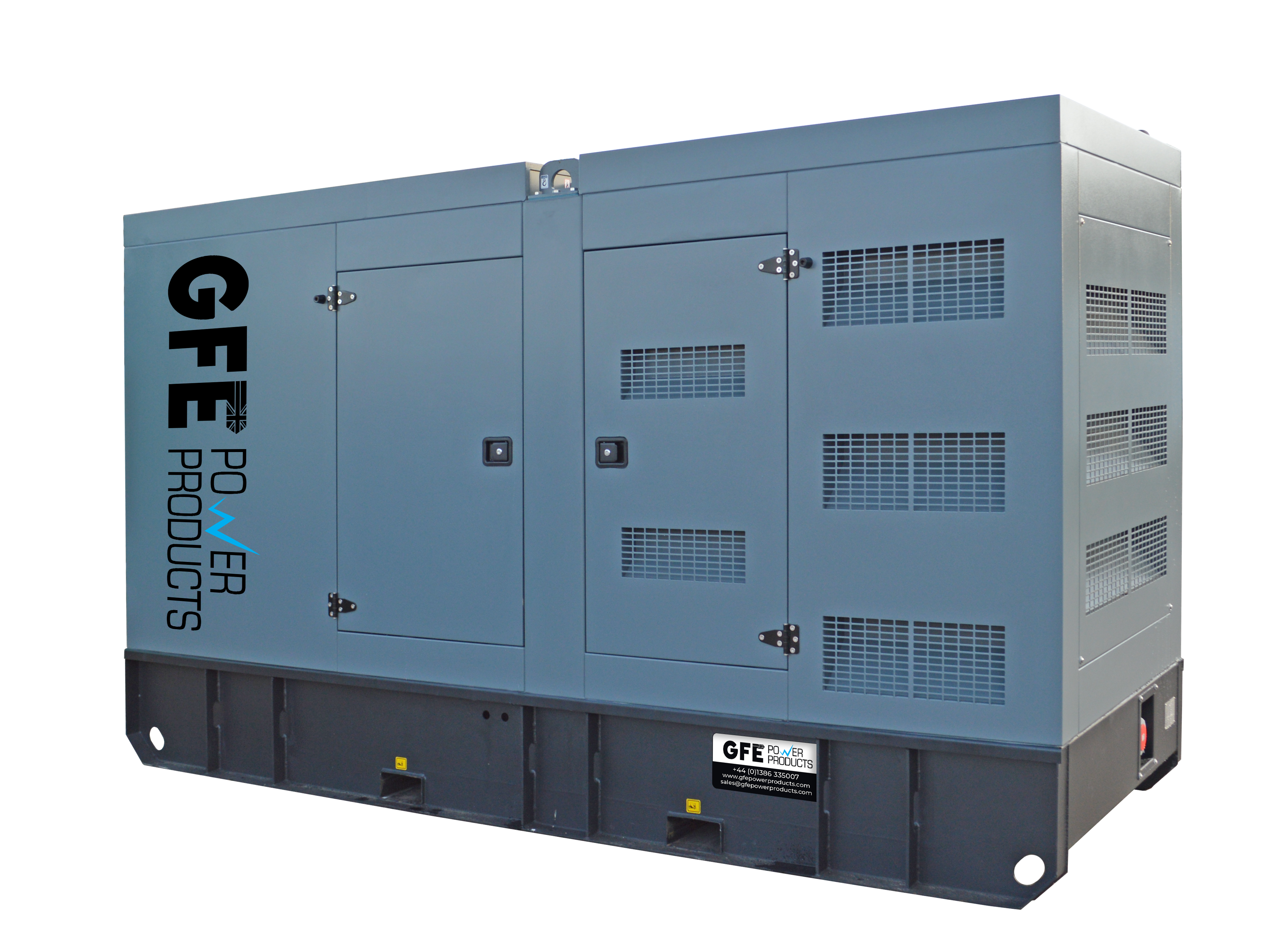

GFE330PSC Perkins Diesel Generator - 300kVA

Call Now

As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. Built around world class Perkins engines and incorporating Stamford alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial.

Model reference	GFE330PSC (Canopied) / GFE330PSO (Open)
Engine	Perkins 1506A-E88TAG5
Alternator	Stamford S4L1D-D4
Control panel	Deepsea
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	240	300
Standby Power (ERP)	264	330

Voltage	400V
Rated current	477 Amps
Fuel consumption	65 @100% load L/h

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	3800 x 1410 x 2200	3510	390

Datasheets

Generator:	Engine:	Alternator:
300kVA GFE330PSC	Perkins 1506A-E88TAG5	Stamford S4L1D-D4
