Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.
| Model reference |
D300
|
| Engine |
DOOSAN P126TI
|
| Alternator |
KOHLER KH01720TO4D |
| Control panel |
APM303 |
| Frequency |
50Hz |
| Engine speed |
1500rpm |
| Phase / Poles |
3-Phase / 4-Pole |
Ratings
|
kWe |
kVA |
| Prime Power (PRP) |
218 |
273 |
Standby Power (ERP)
|
240 |
300 |
Voltage
|
400/230V
|
| Rated current |
433 Amps |
| Fuel consumption |
@100% load ESP L/h 64 |
Overall dimensions
| Frame type |
Dimensions |
Weight |
Base tank
@100% load |
|
(L x W x H) mm |
kg |
Litres |

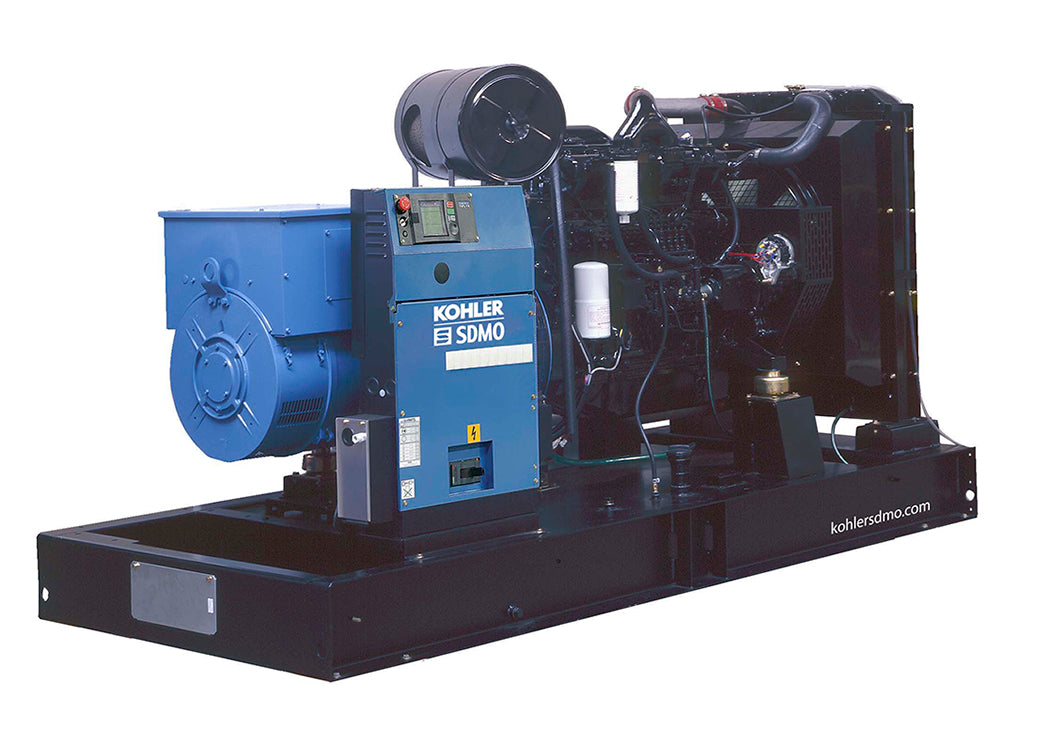

| Open |
2900 x 1300 x 1670 |
2400 |
390 |

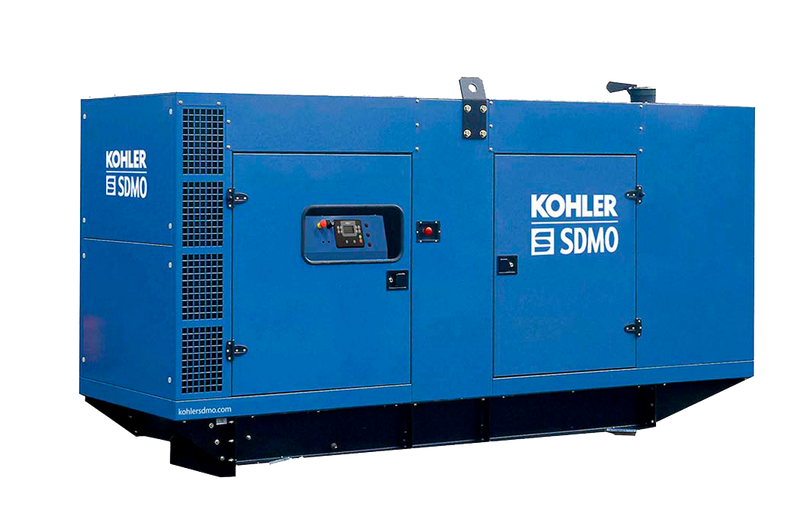

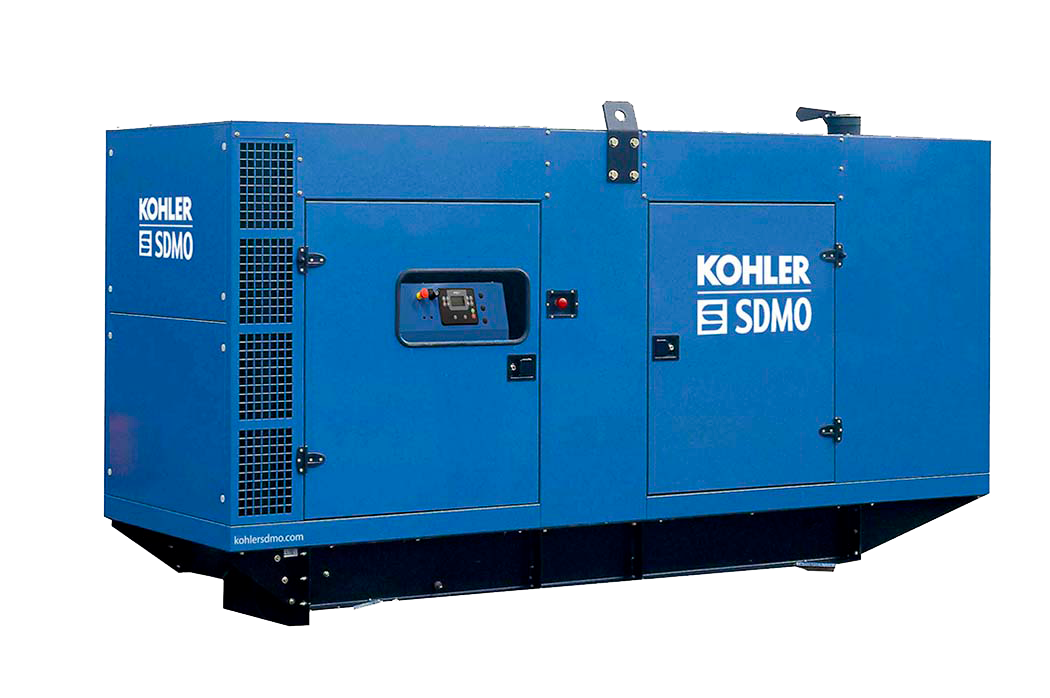

| Canopied |
4004 x 1380 x 2145 |
3250 |
390 |
Datasheets
| D300 |
|
|
|
 |
|
|
|
