Kohler SDMO 630kVA Diesel Generator - D630

Call Now

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference	D630
Engine	DOOSAN DP180LA
Alternator	KOHLER KH02712TO4D
Control panel	APM403
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	458	573
Standby Power (ERP)	504	630

Voltage	400/230V
Rated current	909 Amps
Fuel consumption	@100% load ESP L/h 134

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres

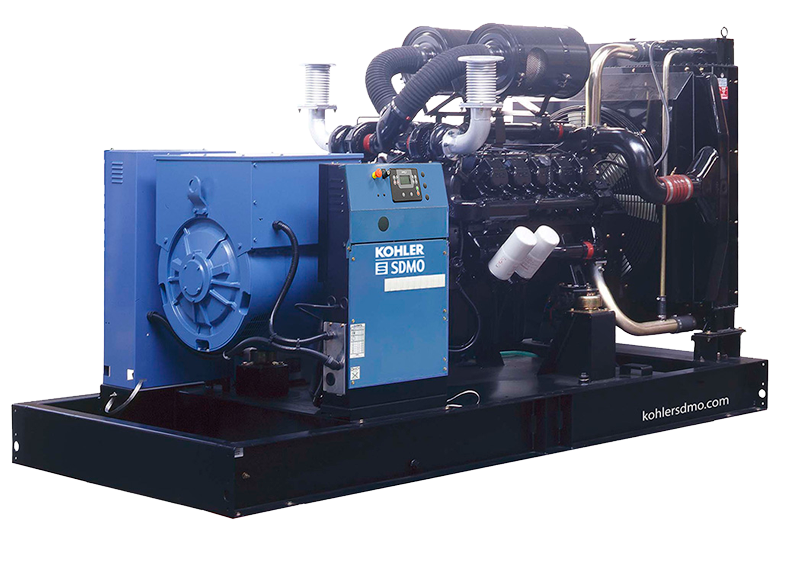

Open	3470 x 1630 x 1719	3623	610

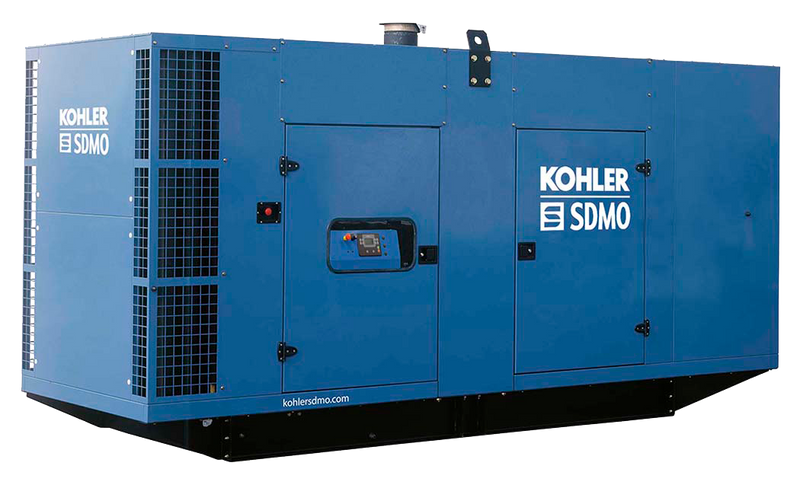

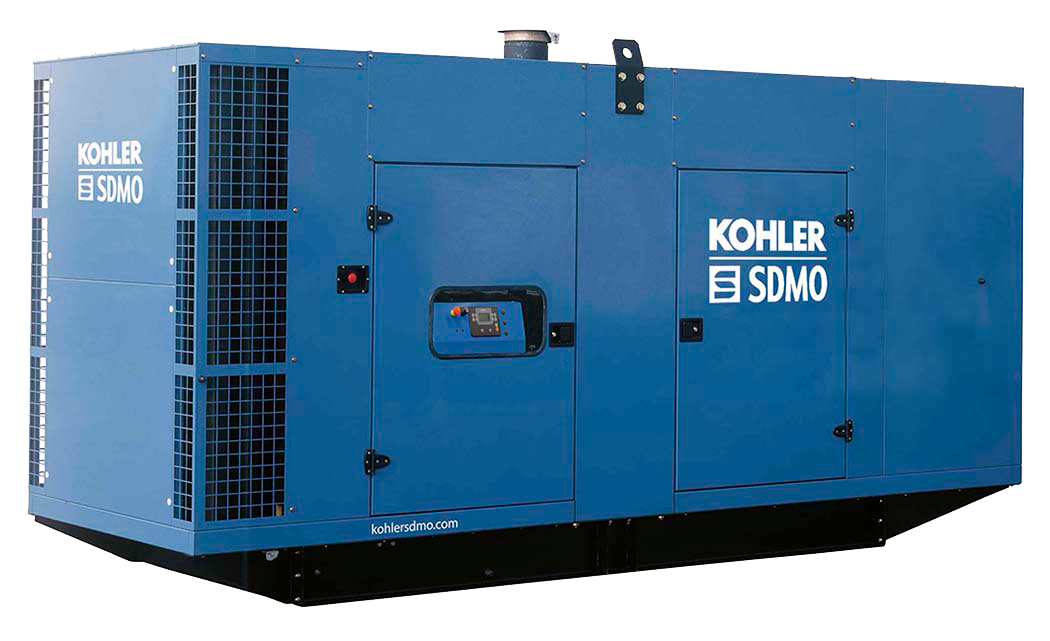

Canopied	5031 x 1690 x 2672	5146	610

Datasheets

D630
