KOHLER-SDMO J130K 130kVA

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference J130K
Engine JOHN DEERE 4045HSG21
Alternator KOHLER KH01051TO4N
Control panel APM303
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 94 118
Standby Power (ERP)
104
130

Voltage
400/230V
Rated current 188 Amps
Fuel consumption @100% load ESP L/h 29



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres

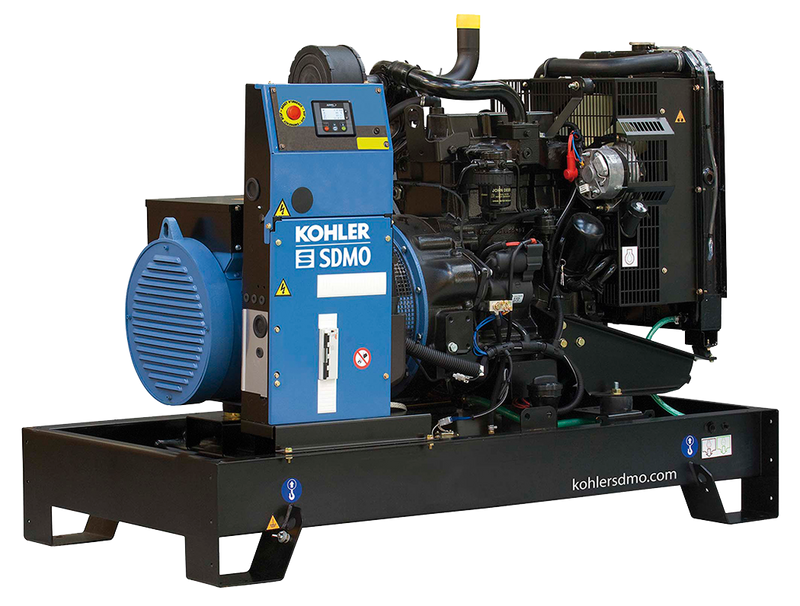

Open 1950 x 1084 x 1455 1083 190

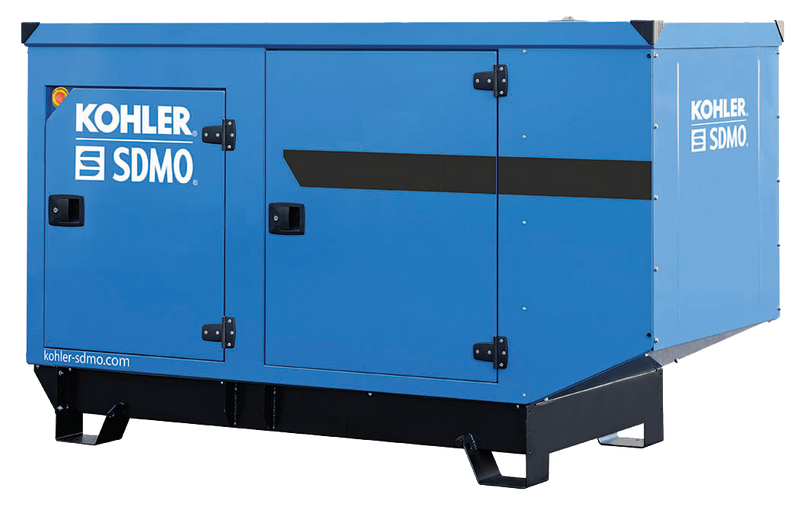

Canopied 2572 x 1126 x 1571 1405 190


Datasheets

J130
