KOHLER-SDMO J165 165kVA

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference J165
Engine JOHN DEERE 6068HFG20-153 *
Alternator KOHLER KH01191TO4N
Control panel APM303
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 120 150
Standby Power (ERP)
132 165

Voltage
400/230V
Rated current 238 Amps
Fuel consumption @100% load L/h 33,80



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres

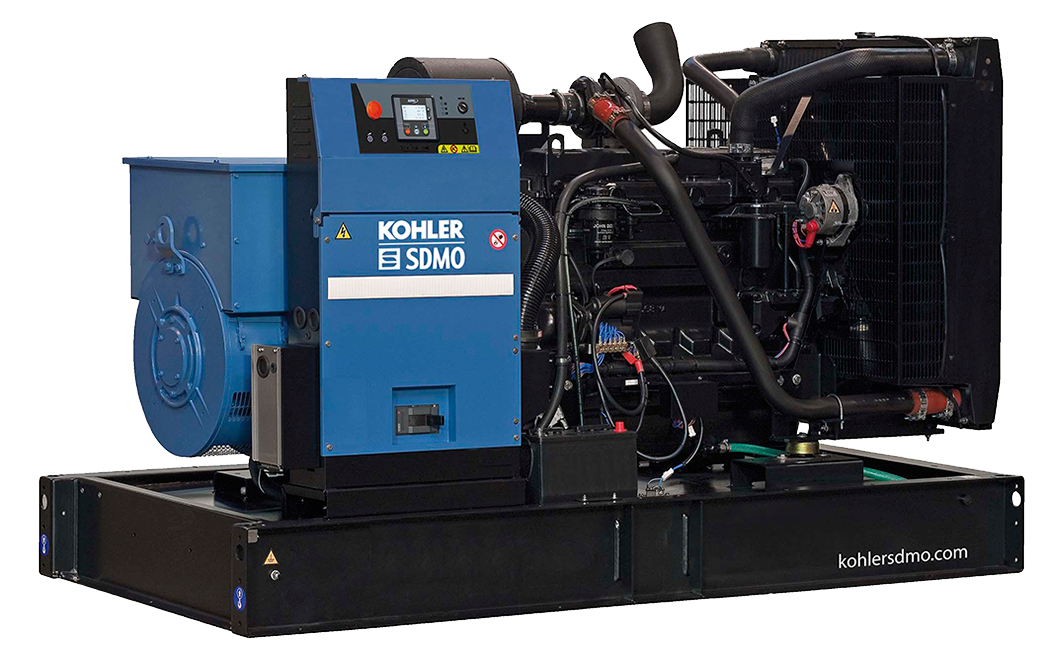

Open 2497 x 1103 x 1524 1375 334

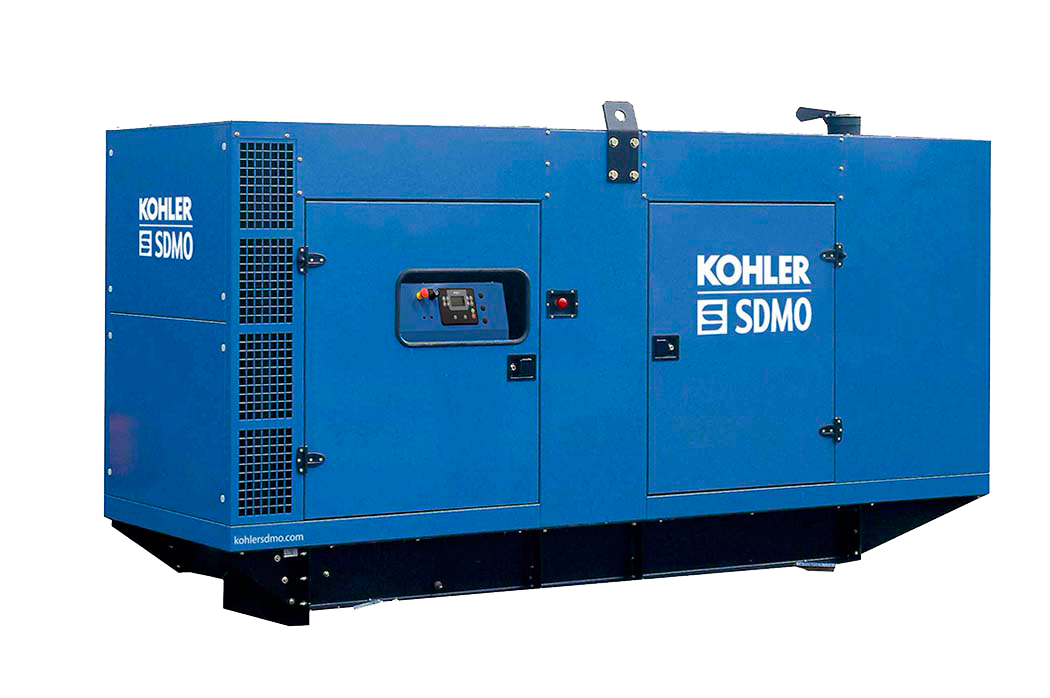

Canopied 3590 x 1145 x 1775 2065 334


Datasheets

J165
