Kohler SDMO 200kVA Diesel Generator - J220K

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference	J220K
Engine	JOHN DEERE 6068HFG20-202
Alternator	KOHLER KH01221TO4N
Control panel	APM303
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	160	200
Standby Power (ERP)	176	220

Voltage	400/230V
Rated current	318 Amps
Fuel consumption	@100% load ESP L/h 48

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres

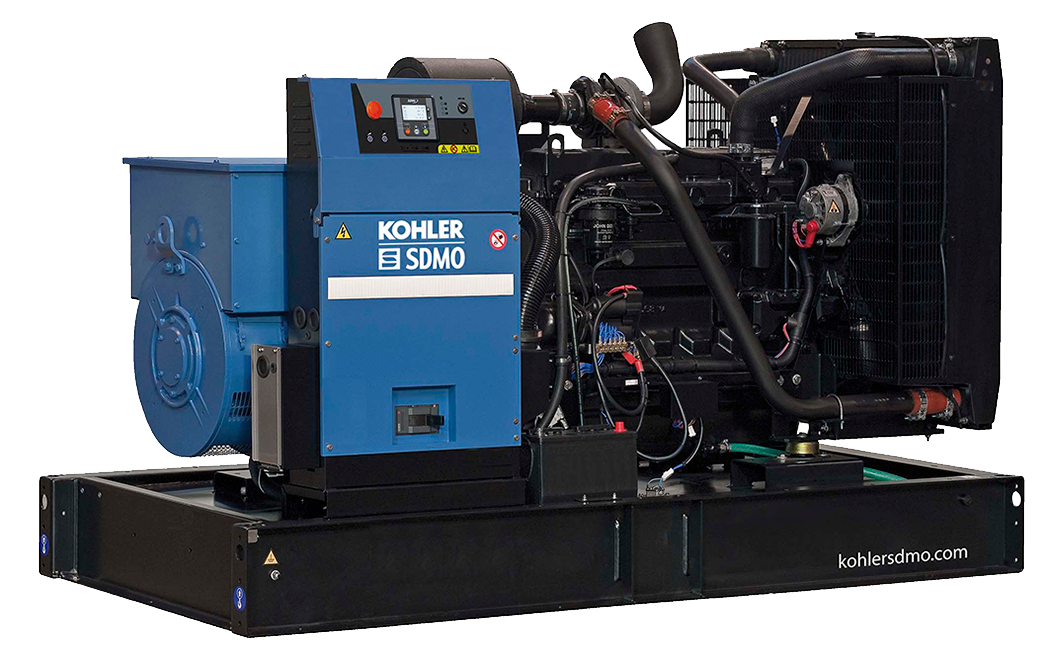

Open	2497 x 1103 x 1592	1825	334

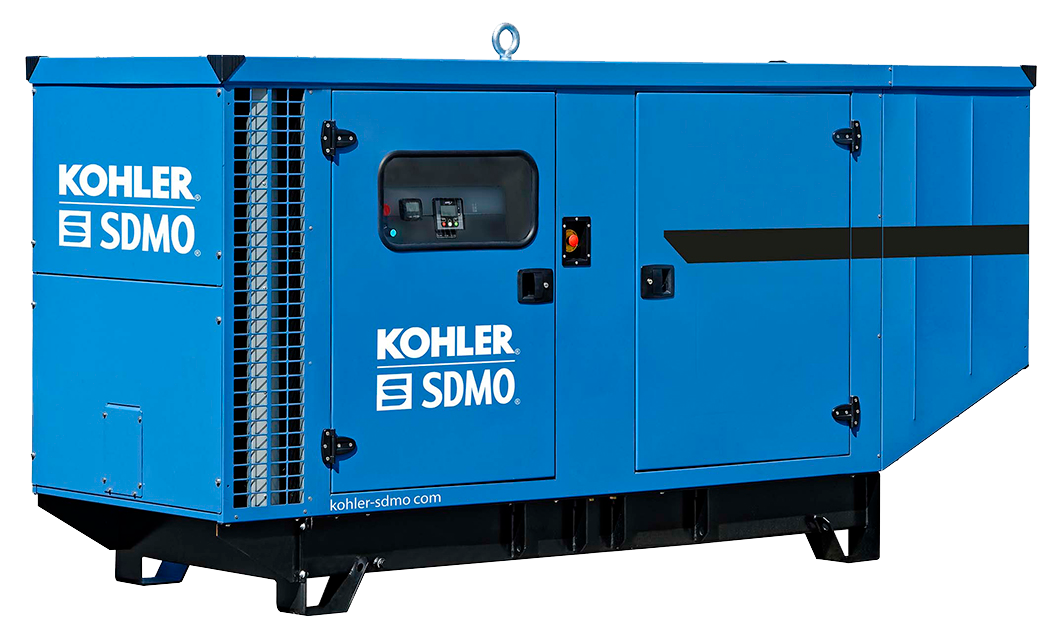

Canopied	3590 x 1145 x 1775	2405	334
