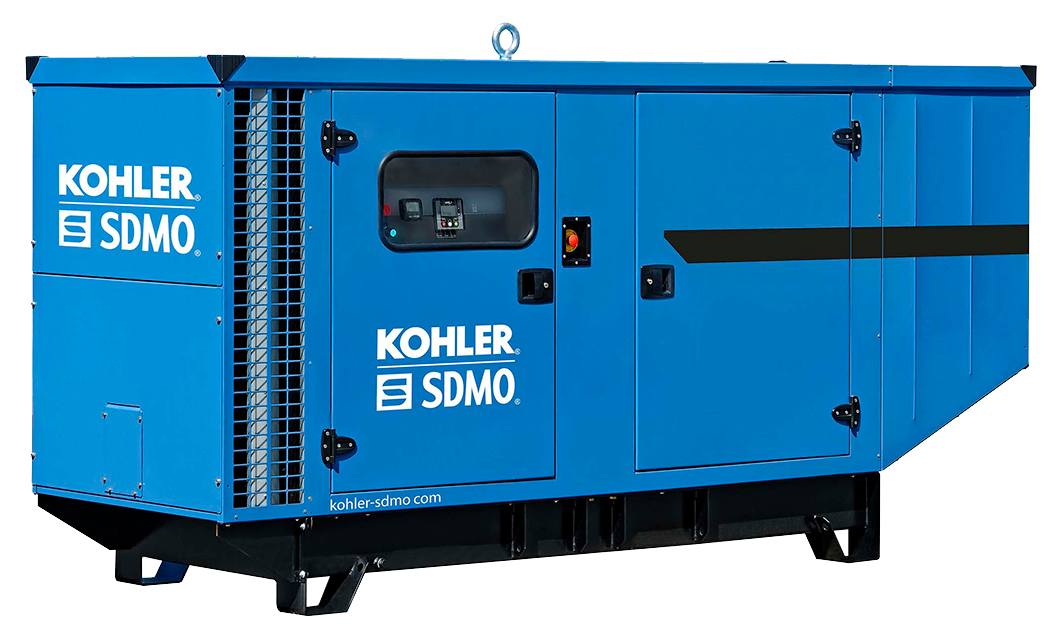

KOHLER-SDMO J250 250kVA
£0
ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET
Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.
| Model reference | J250 |
| Engine | JOHN DEERE 6068HFS55-228 |
| Alternator | KOHLER KH01221TO4N |
| Control panel | APM303 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 182 | 227 |
|
Standby Power (ERP) |
200 | 250 |
|
Voltage |
400/230V |
| Rated current | 361 Amps |
| Fuel consumption | @100% load ESP L/h 50 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |

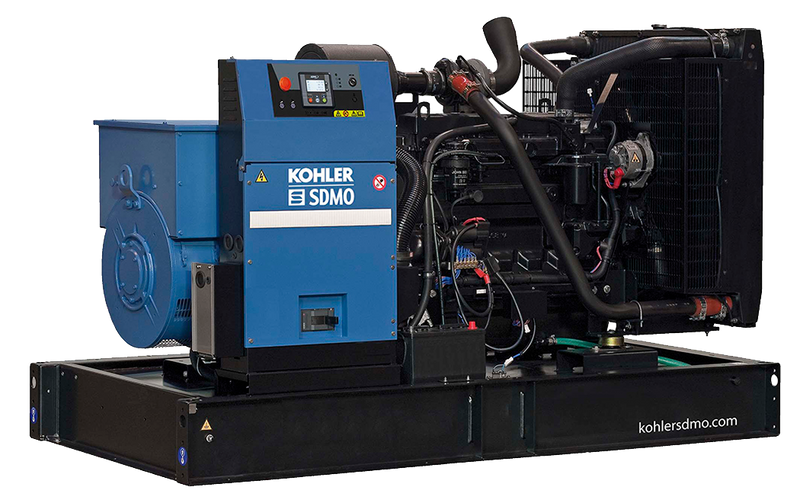

| Open | 2497 x 1103 x 1593 | 1940 | 334 |

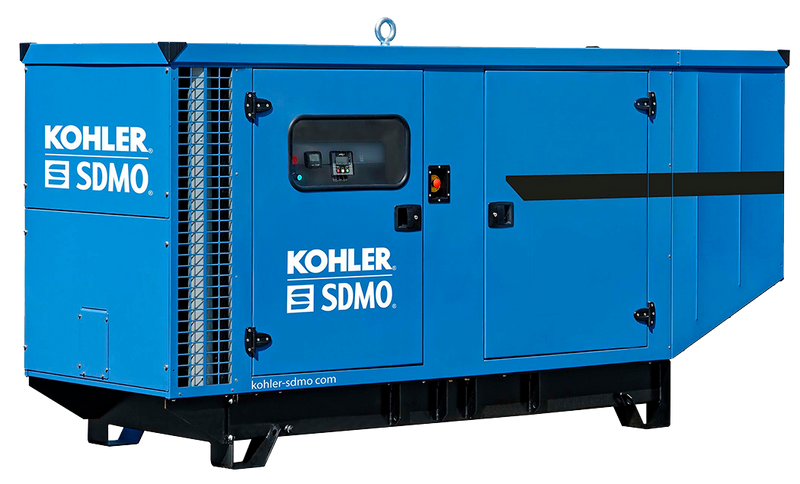

| Canopied | 3590 x 1145 x 1775 | 2515 | 334 |
Datasheets
| J250 | |||
 |
