KOHLER-SDMO J44 44kVA

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference J44
Engine JOHN DEERE 3029TSG20 *
Alternator KOHLER KH00602TO4N
Control panel APM303
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 32 40
Standby Power (ERP)
35,20 44

Voltage
400/230V
Rated current 64 Amps
Fuel consumption @100% load L/h 10



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres

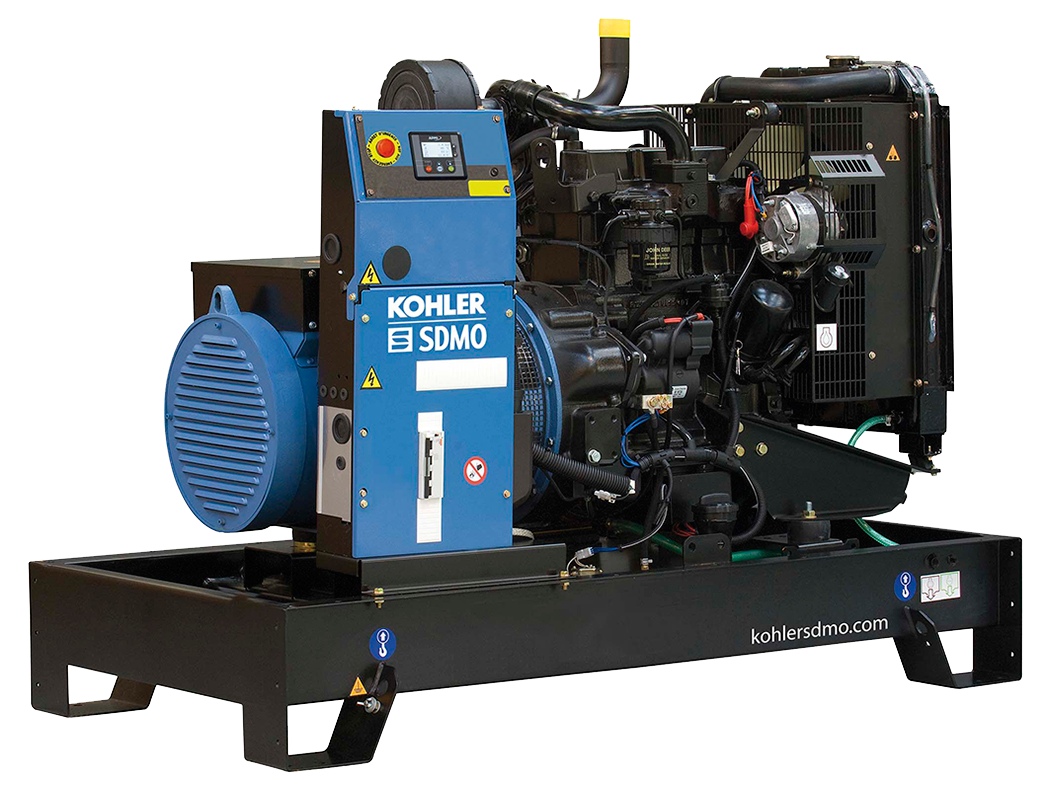

Open 1700 x 896 x 1243 680 100

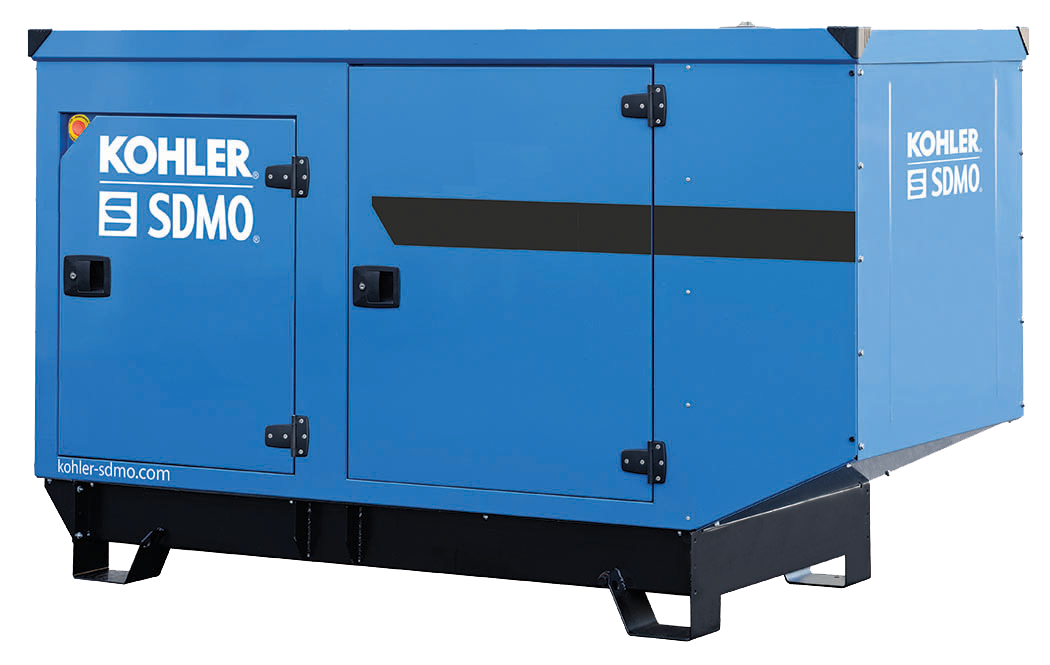

Canopied 2100 x 938 x 1285 868
100


Datasheets

J44
