KOHLER-SDMO J66 66kVA
£0
ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET
Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.
| Model reference | J66 |
| Engine | JOHN DEERE 4045TSG20 * |
| Alternator | KOHLER KH00811TO4N |
| Control panel | APM303 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 48 | 60 |
|
Standby Power (ERP) |
53 | 66 |
|
Voltage |
400/230V |
| Rated current | 95 Amps |
| Fuel consumption | @100% load L/h 14 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |

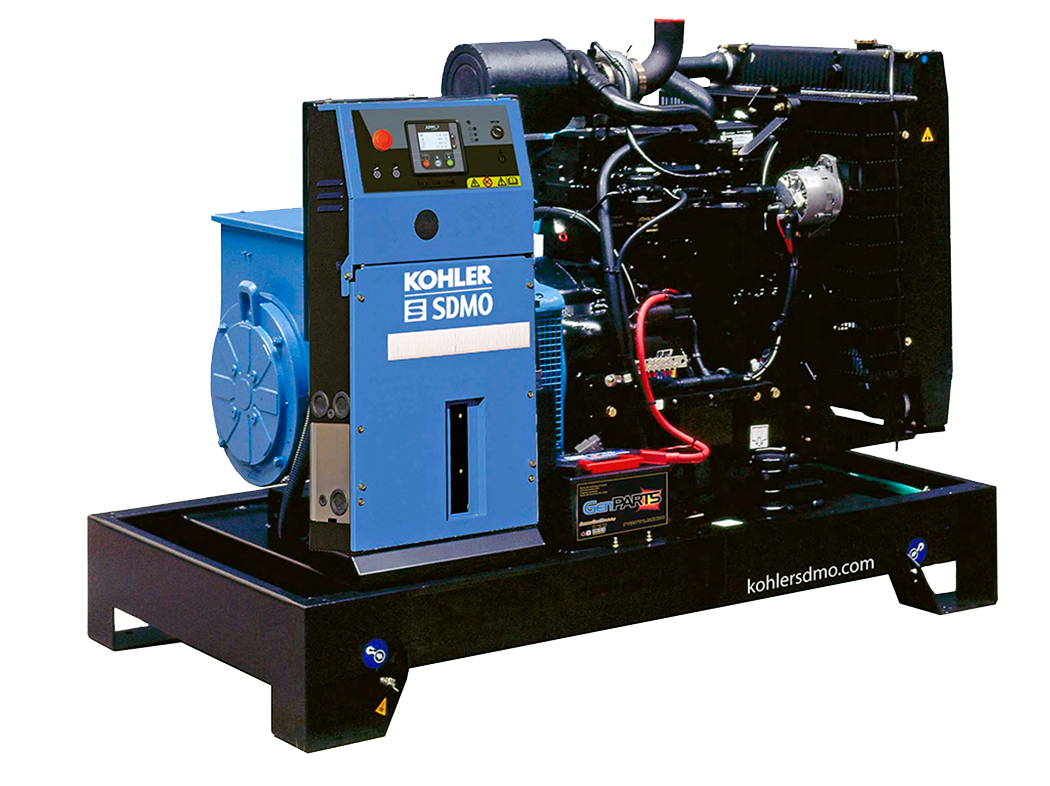

| Open | 1950 x 1084 x 1455 | 908 | 190 |

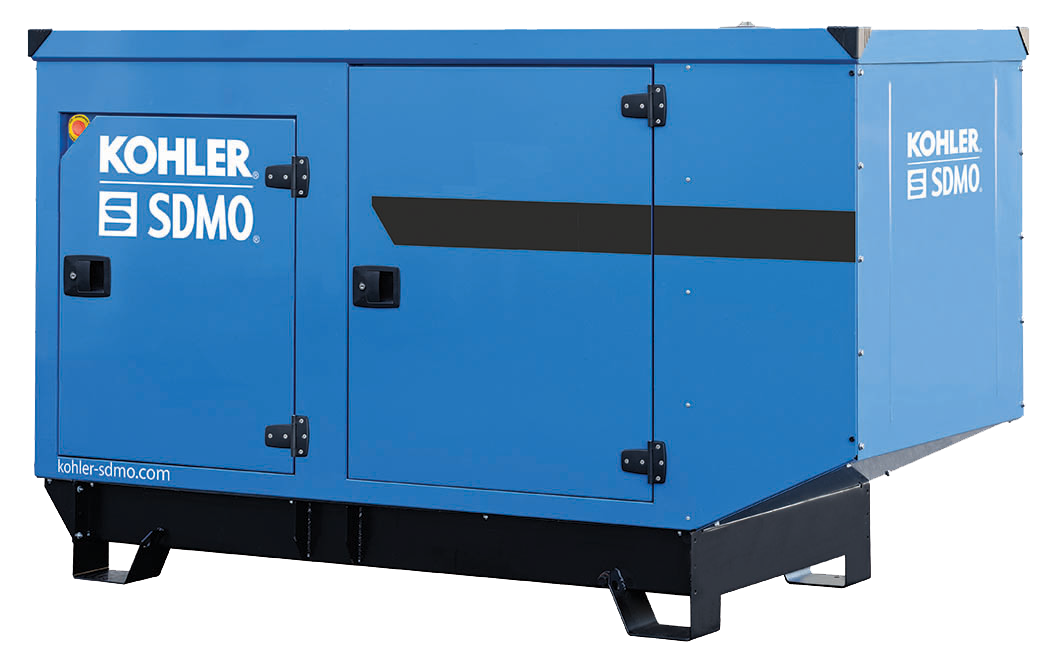

| Canopied | 2572 x 1126 x 1571 | 1246 | 190 |
Datasheets
| J66 | |||
 |
