KOHLER-SDMO J88 88kVA

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference J88
Engine JOHN DEERE 4045TSG20 *
Alternator KOHLER KH00590TO4N
Control panel APM303
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 64 80
Standby Power (ERP)
70 88

Voltage
400/230V
Rated current 127 Amps
Fuel consumption @100% load L/h 19



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres

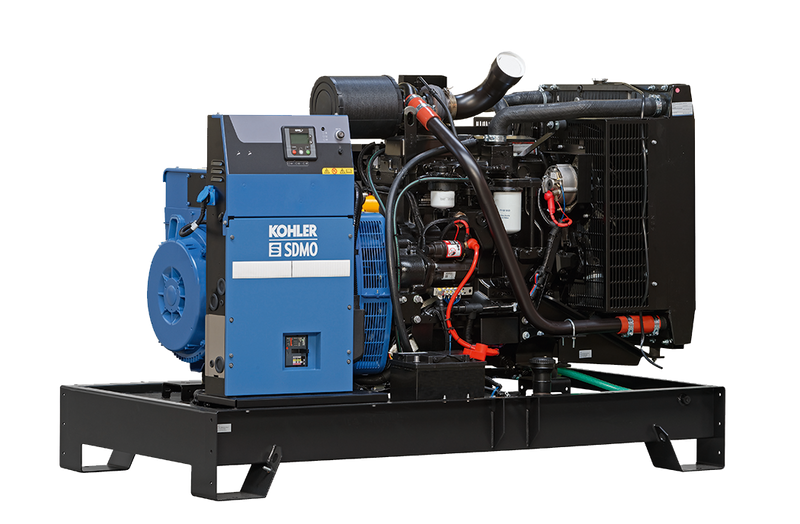

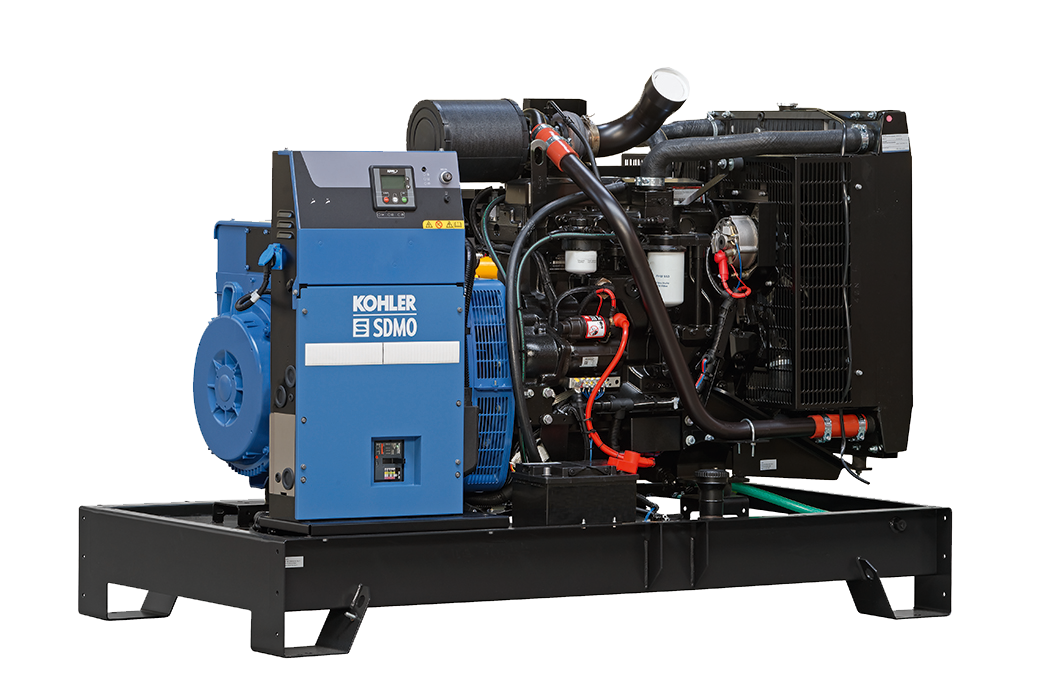

Open 1950 x 1084 x 1455 980 190

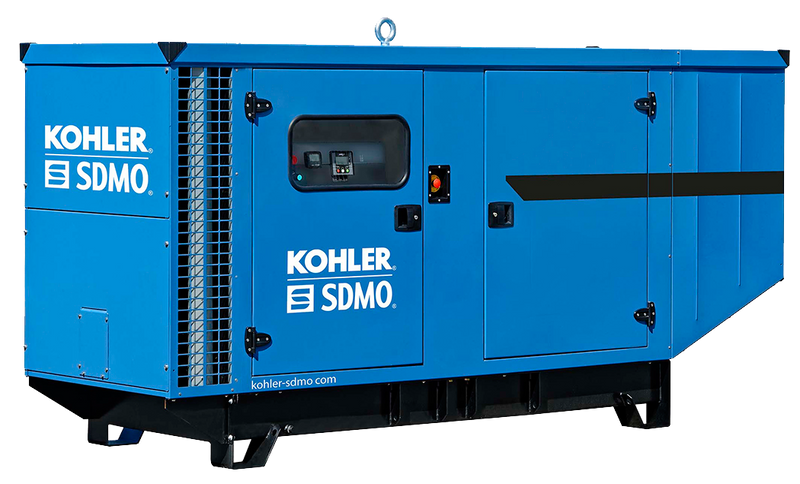

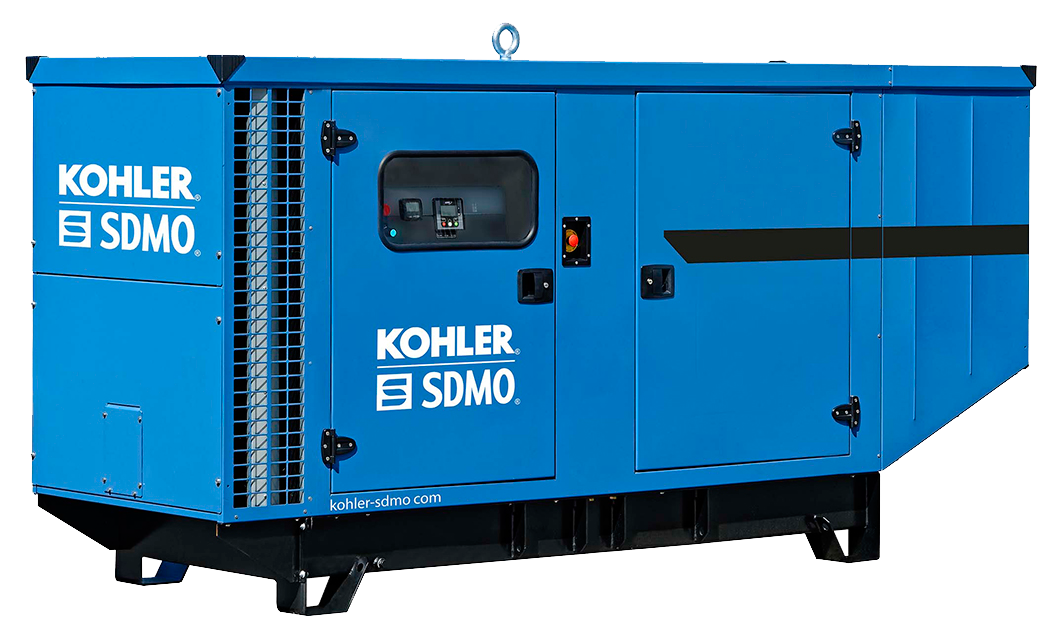

Canopied 2572 x 1126 x 1571 1325 190


Datasheets

J88
