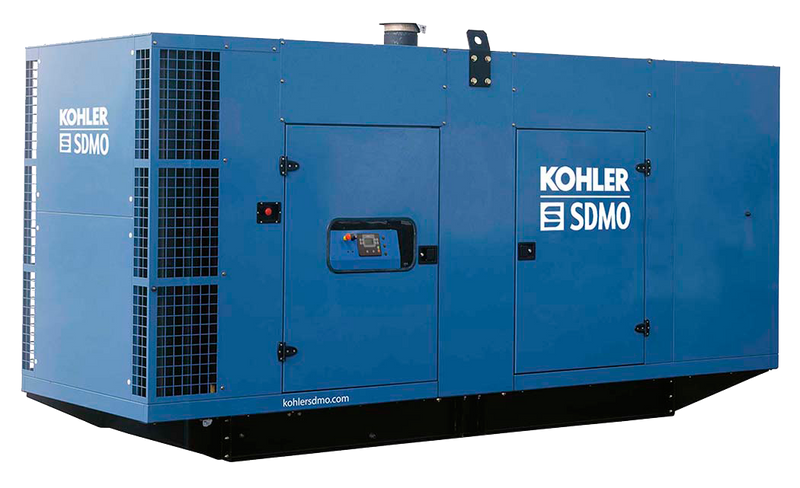

Kohler SDMO 350kVA Diesel Generator - V350C2
Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.
Model reference | V350C2 |
Engine | VOLVO TAD1341GE-B * |
Alternator | KOHLER KH02100TN4N |
Control panel | APM403 |
Frequency | 50Hz |
Engine speed | 1500rpm |
Phase / Poles | 3-Phase / 4-Pole |
Ratings
kWe | kVA | |
Prime Power (PRP) | 254 | 318 |
Standby Power (ERP) |
280 | 350 |
Voltage |
400/230V |
Rated current | 505 Amps |
Fuel consumption | @100% load L/h 63 |
Overall dimensions
Frame type | Dimensions | Weight | Base tank @100% load |
(L x W x H) mm | kg | Litres | |

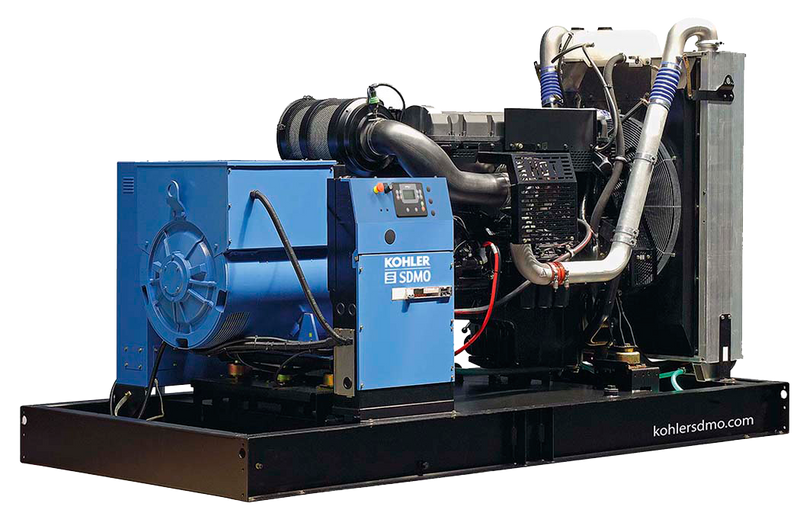

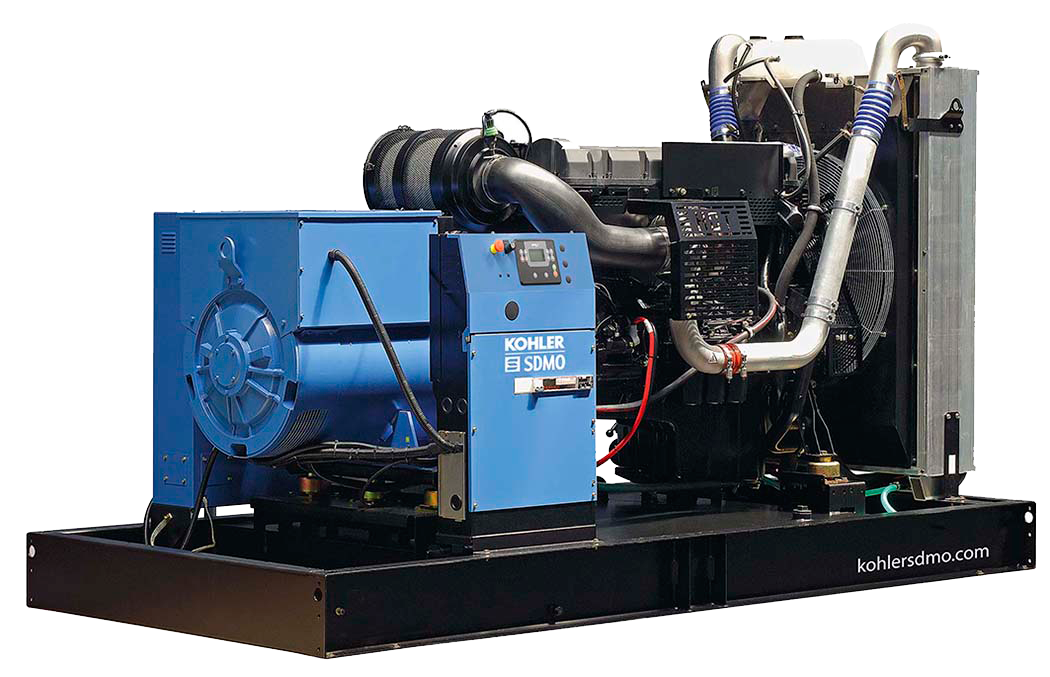

Open | 3160 x 1340 x 1805 | 3103 | 470 |

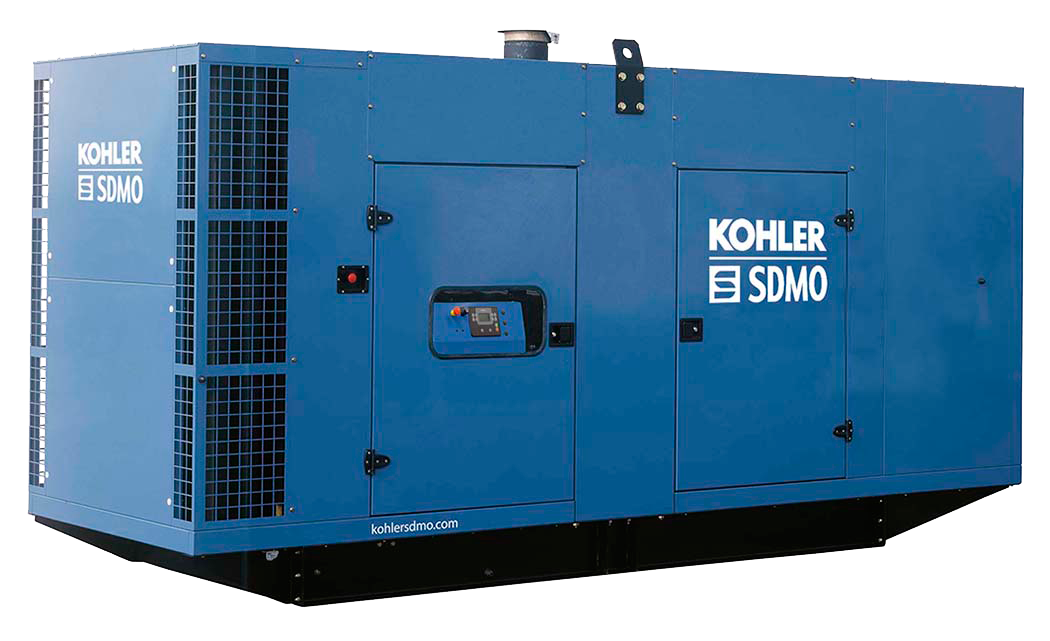

Canopied | 4475 x 1410 x 2430 | 4035 | 470 |
Datasheets
V350C2 | |||
