Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.
| Model reference |
V500C2
|
| Engine |
VOLVO TAD1345GE-B |
| Alternator |
KOHLER KH02070TN4N |
| Control panel |
APM403 |
| Frequency |
50Hz |
| Engine speed |
1500rpm |
| Phase / Poles |
3-Phase / 4-Pole |
Ratings
|
kWe |
kVA |
| Prime Power (PRP) |
364 |
455 |
Standby Power (ERP)
|
400 |
500 |
Voltage
|
400/230V
|
| Rated current |
722 Amps |
| Fuel consumption |
@100% load ESP L/h 101 |
Overall dimensions
| Frame type |
Dimensions |
Weight |
Base tank
@100% load |
|
(L x W x H) mm |
kg |
Litres |

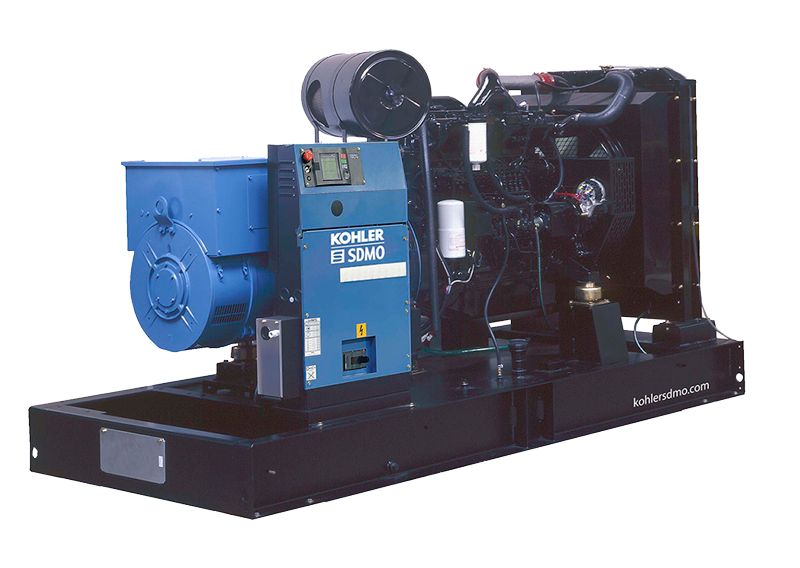

| Open |
3160 x 1340 x 1805 |
3250 |
470 |

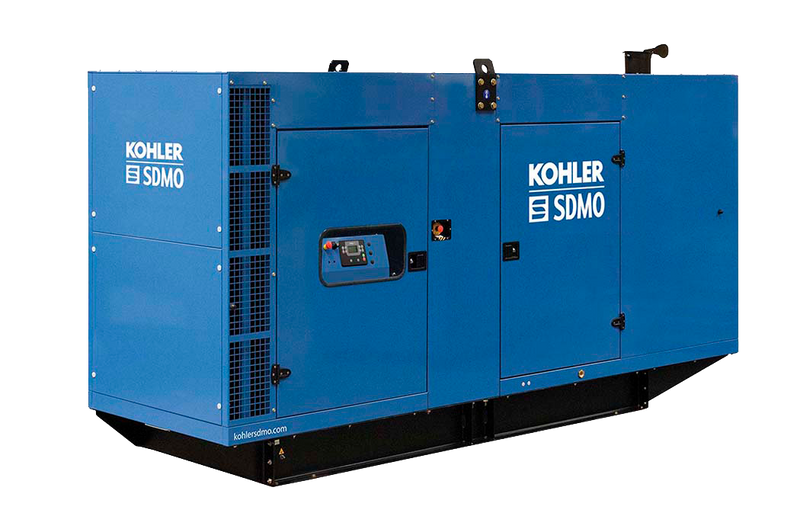

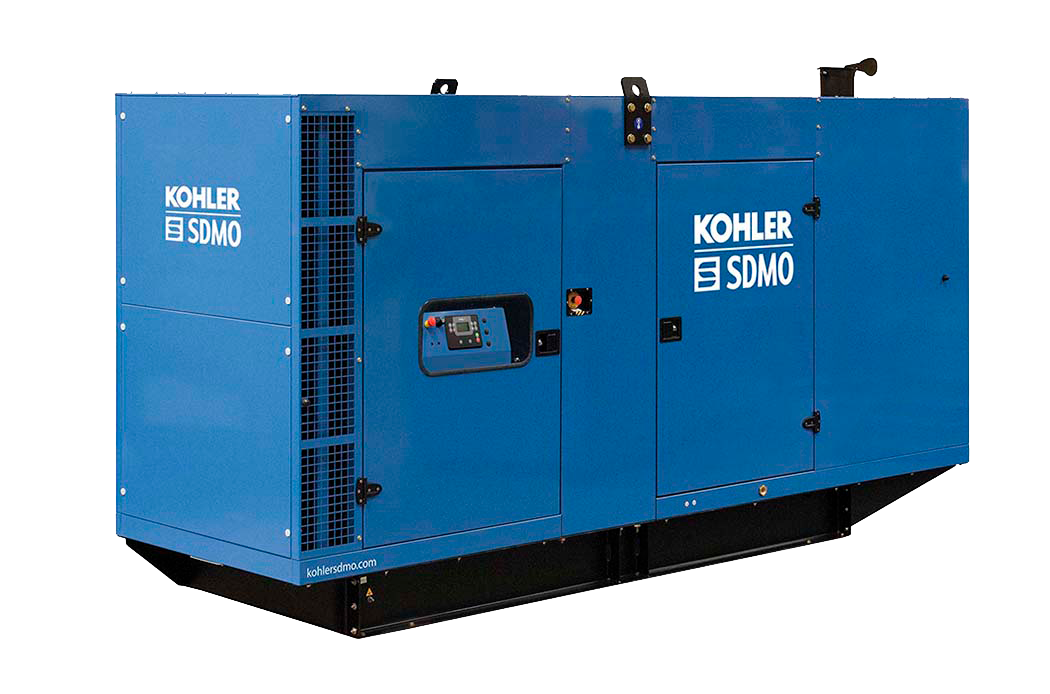

| Canopied |
4475 x 1410 x 2430
|
4360 |
470 |
Datasheets
| V500C2 |
|
|
|
 |
|
|
|
