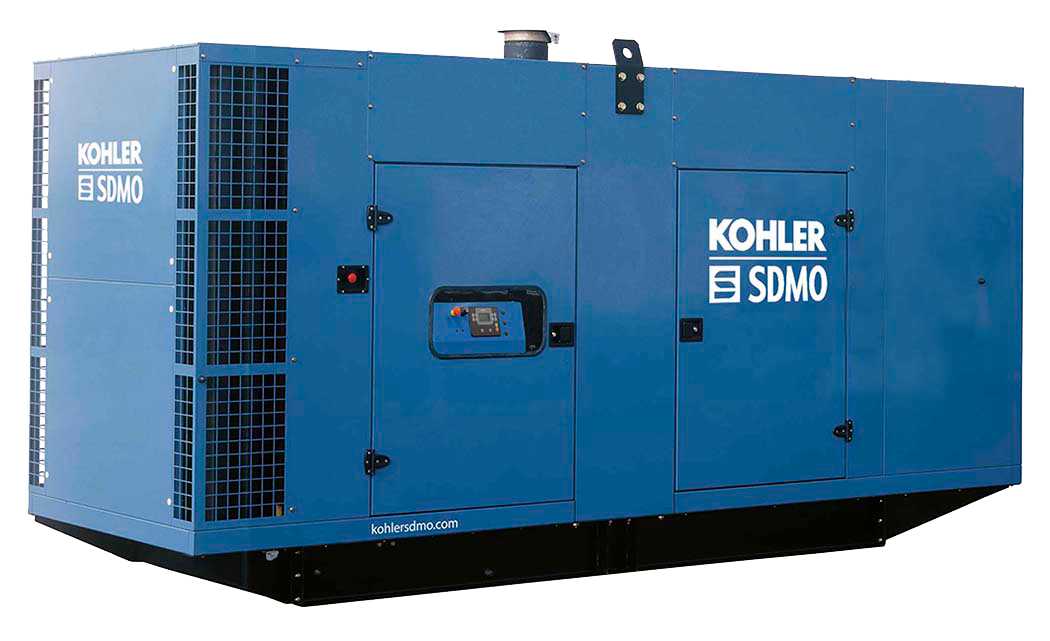

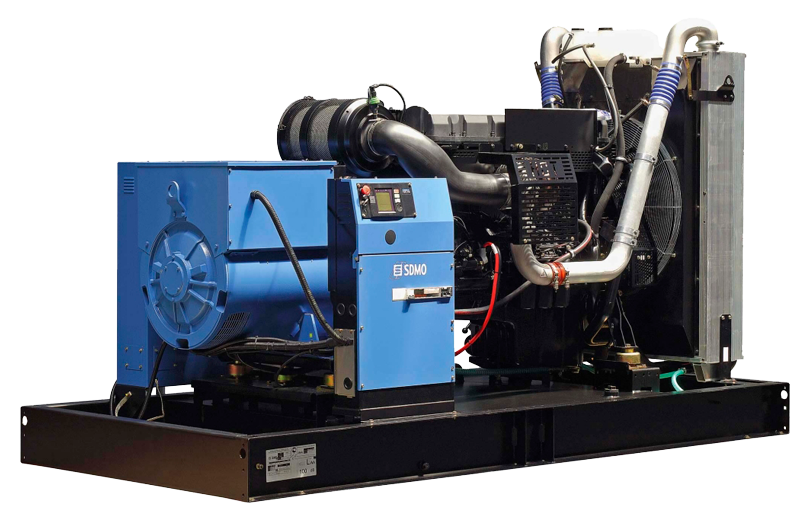

KOHLER-SDMO V650C2 650kVA
£0
ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET
Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.
| Model reference | V650C2 |
| Engine | VOLVO TAD1642GE-B |
| Alternator | KOHLER KH02880TN4N |
| Control panel | APM403 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 473 | 591 |
|
Standby Power (ERP) |
520 | 650 |
|
Voltage |
400/230V |
| Rated current | 938 Amps |
| Fuel consumption | @100% load ESP L/h 129 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |
| Open | 3470 x 1630 x 2095 | 3780 | 610 |
| Canopied | 5031 x 1690 x 2672 |
5300 | 610 |
Datasheets
| V650C2 | |||
 |
