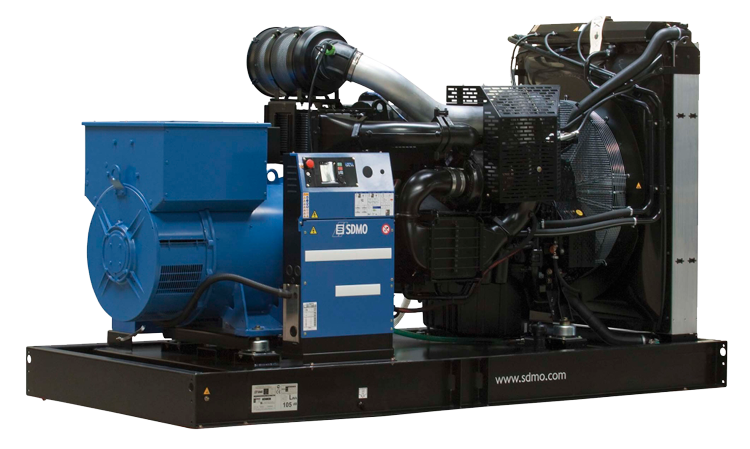

Kohler SDMO 715kVA Diesel Generator - V715C2

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference V715C2
Engine VOLVO TWD1644GE
Alternator KOHLER KH02401TO4N
Control panel APM403
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 520 650
Standby Power (ERP)
572 715

Voltage
400/230V
Rated current 1032 Amps
Fuel consumption @100% load ESP L/h 143



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Open 3470 x 1630 x 2048 4060 610

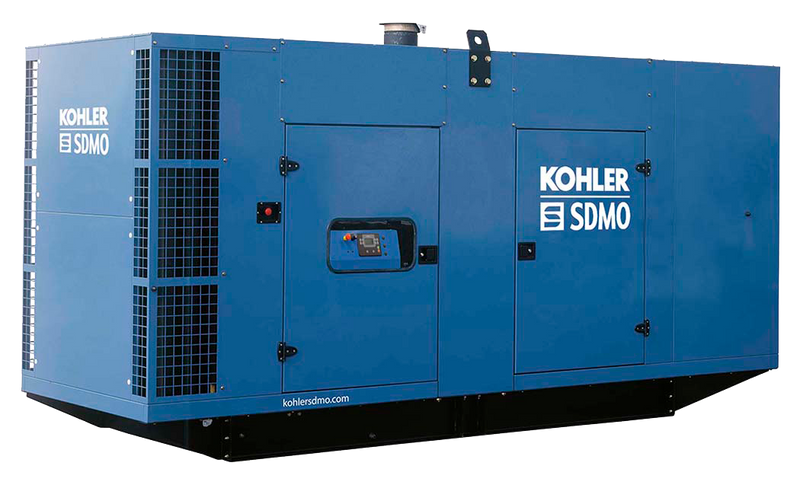

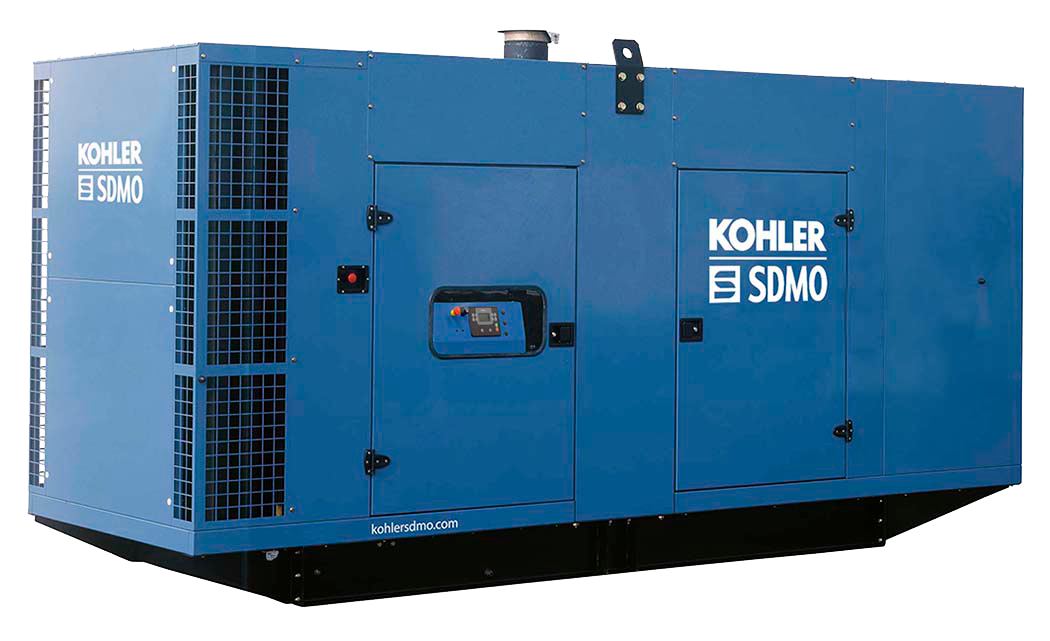

Canopied 5023 x 1630 x 2672
5590 610


Datasheets

V715C2
