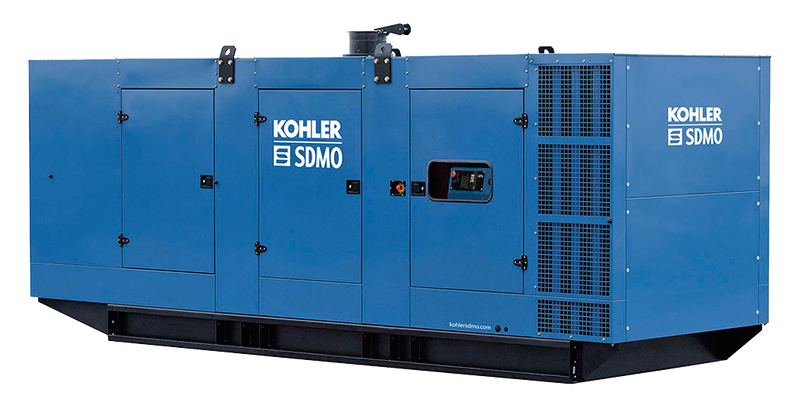

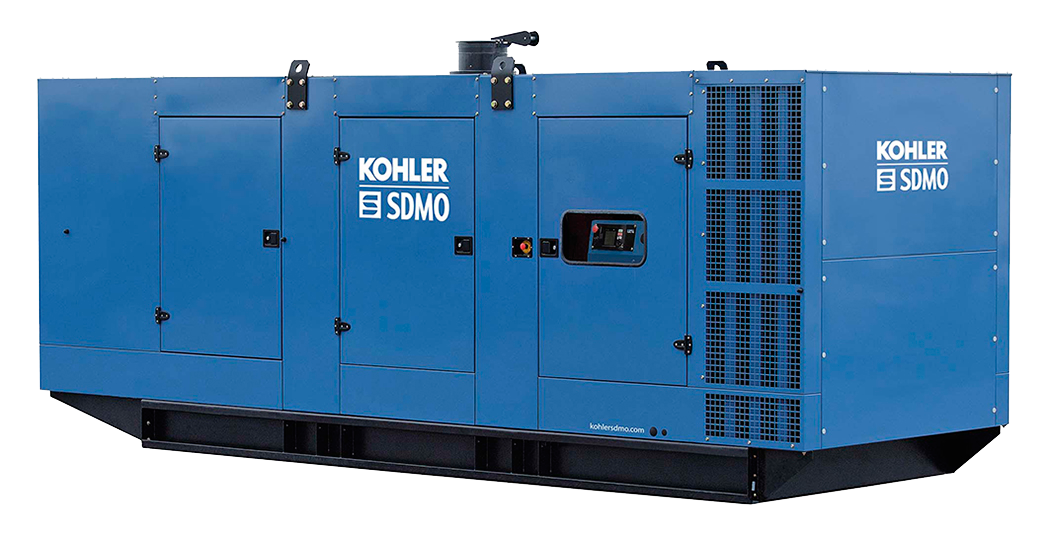

Kohler SDMO 770kVA Diesel Generator - V770C2

Call Now

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference	V770C2
Engine	VOLVO TWD1645GE *
Alternator	KOHLER KH02850TO4N
Control panel	APM403
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	560	700
Standby Power (ERP)	616	770

Voltage	400/230V
Rated current	1111 Amps
Fuel consumption	@100% load L/h 138

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres

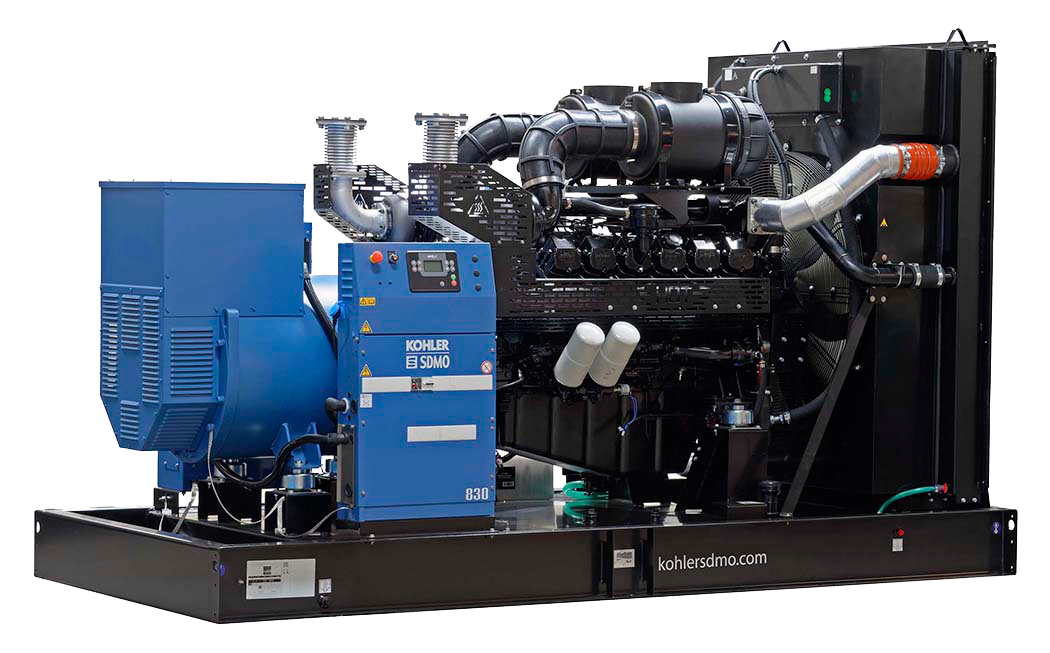

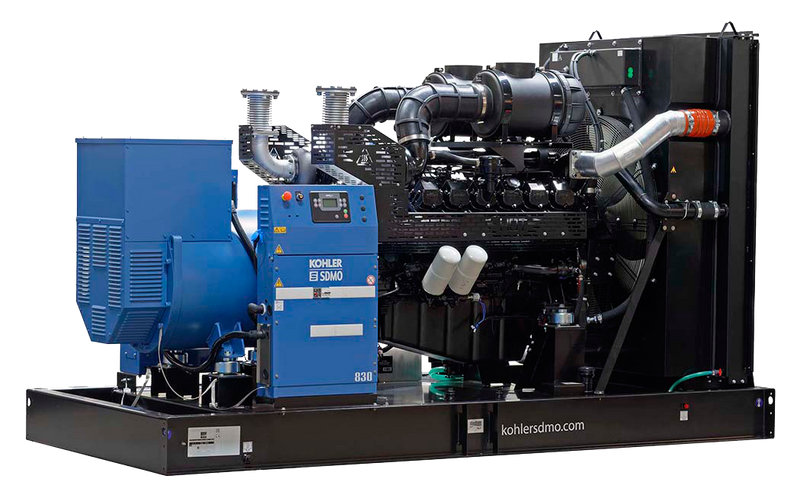

Open	3470 x 1630 x 2048	4270	610
Canopied	5023 x 1630 x 2672	5790	610

Datasheets

V770C2
