Kohler SDMO 22kVA Diesel Generator - J22

Call Now kVA Calc

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference	J22
Engine	JOHN DEERE 3029DSG20
Alternator	KOHLER KH00404TO4N
Control panel	APM303
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	16	20
Standby Power (ERP)	18	22

Voltage	400/230V
Rated current	32 Amps
Fuel consumption	@100% load ESP L/h 6

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres

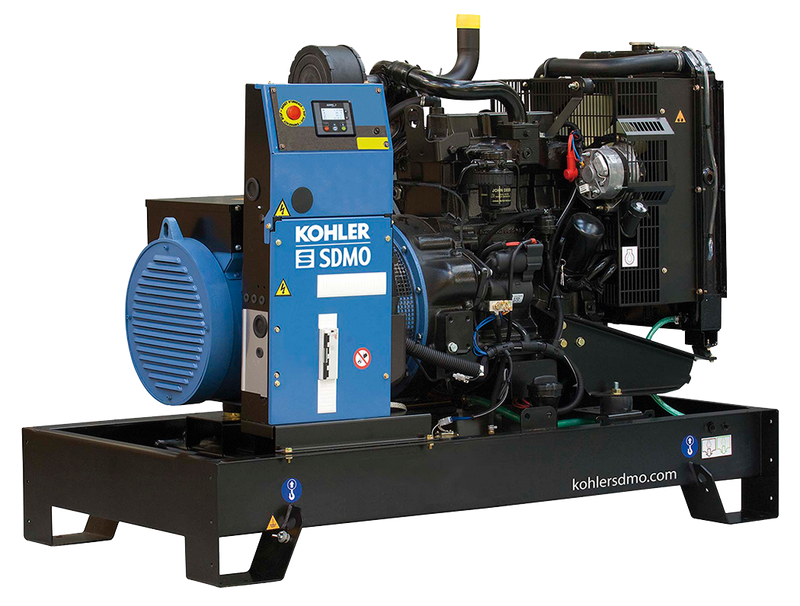

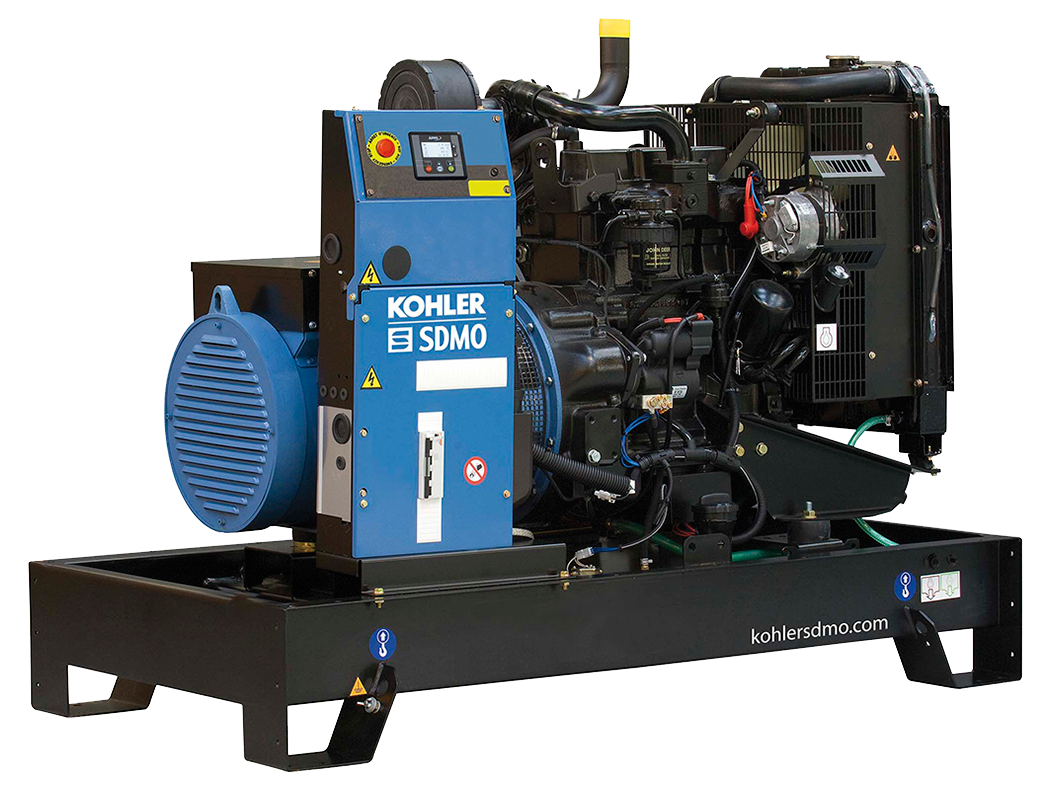

Open	1700 x 896 x 1181	624	100

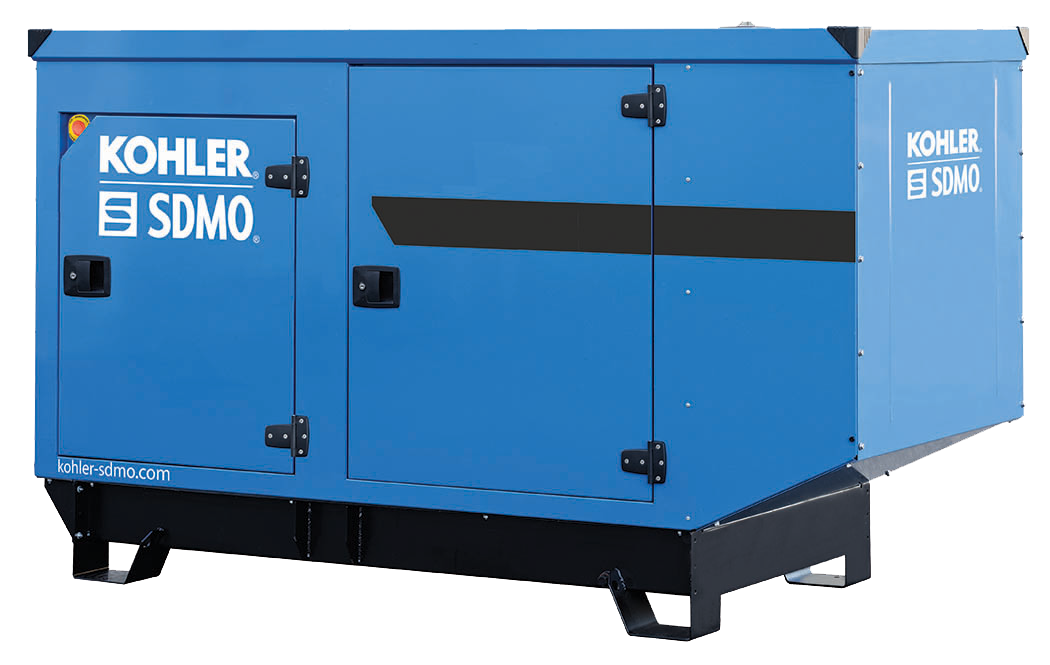

Canopied	2100 x 938 x 1285	812	100

Datasheets

J22
