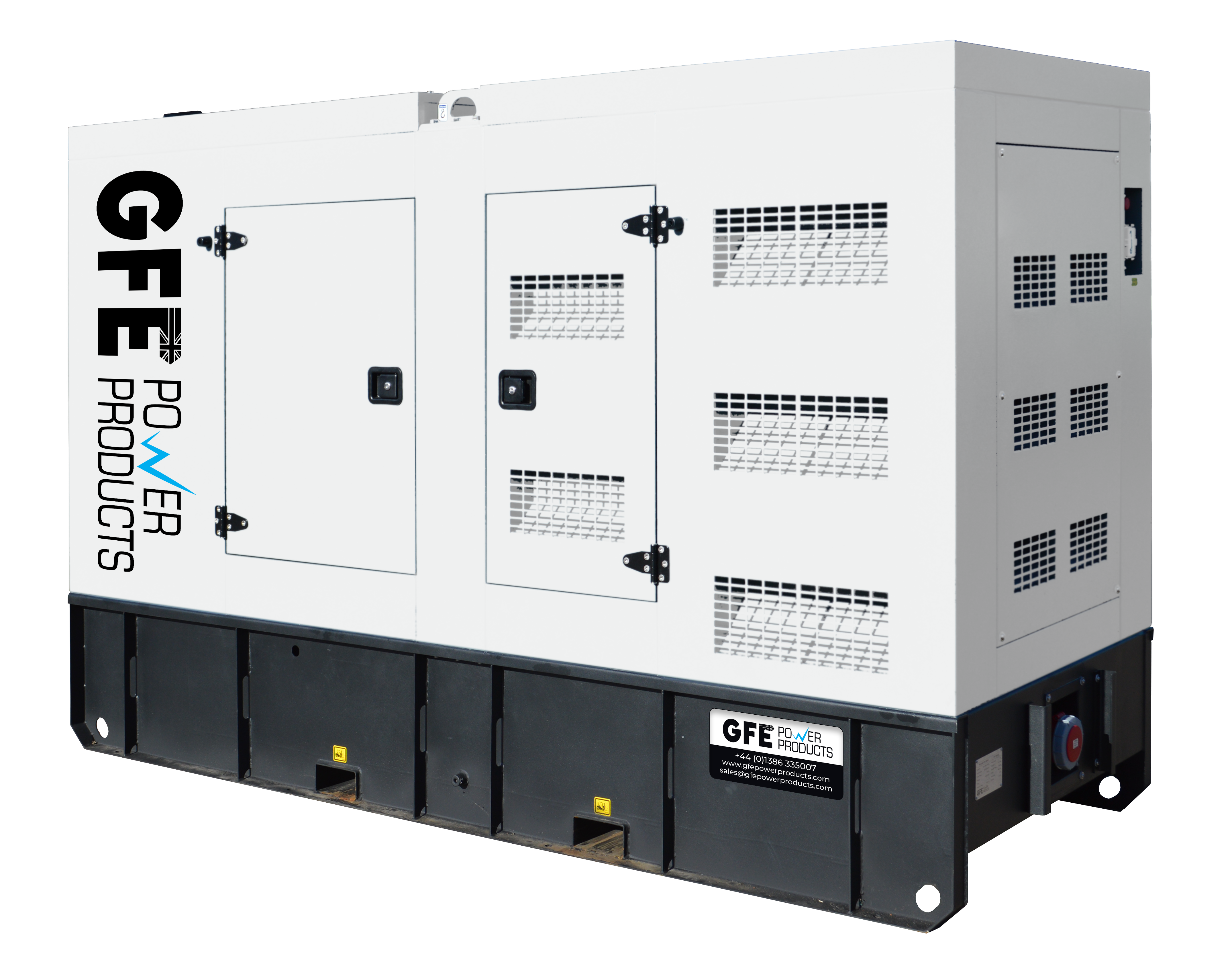

Baudouin 250kVA Diesel Generator - GFE275BSC

Baudouin 250kVA Diesel Generator - GFE275BSC

Call Now kVA Calc

With 250kVA of reliable three-phase power, the GFE275BSC is a powerhouse built for larger-scale commercial, agricultural, or industrial operations. The generator uses a high-efficiency Baudouin engine and a Stamford alternator to ensure reliable power delivery under variable load conditions.

The Deepsea control panel allows intuitive management, fault detection, and automatic shutdown in case of emergencies. Perfect for continuous or standby use, this unit offers strong performance while maintaining low operational costs and simplified servicing.

Model reference GFE275BSC (Canopied)
Engine Baudouin 6M16G275/5
Alternator Stamford UCDI274K
Control panel Deepsea DSE6120
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 200 250
Standby Power (ERP)
 220 275



Voltage
 400/230V
Rated current 361
Fuel consumption @100% load L/h 57


Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(W x L x H) mm kg Litres
Canopied 3800 x 1318 x 2025
 3691 320





Datasheets

 GFE275BSC Engine Alternator
