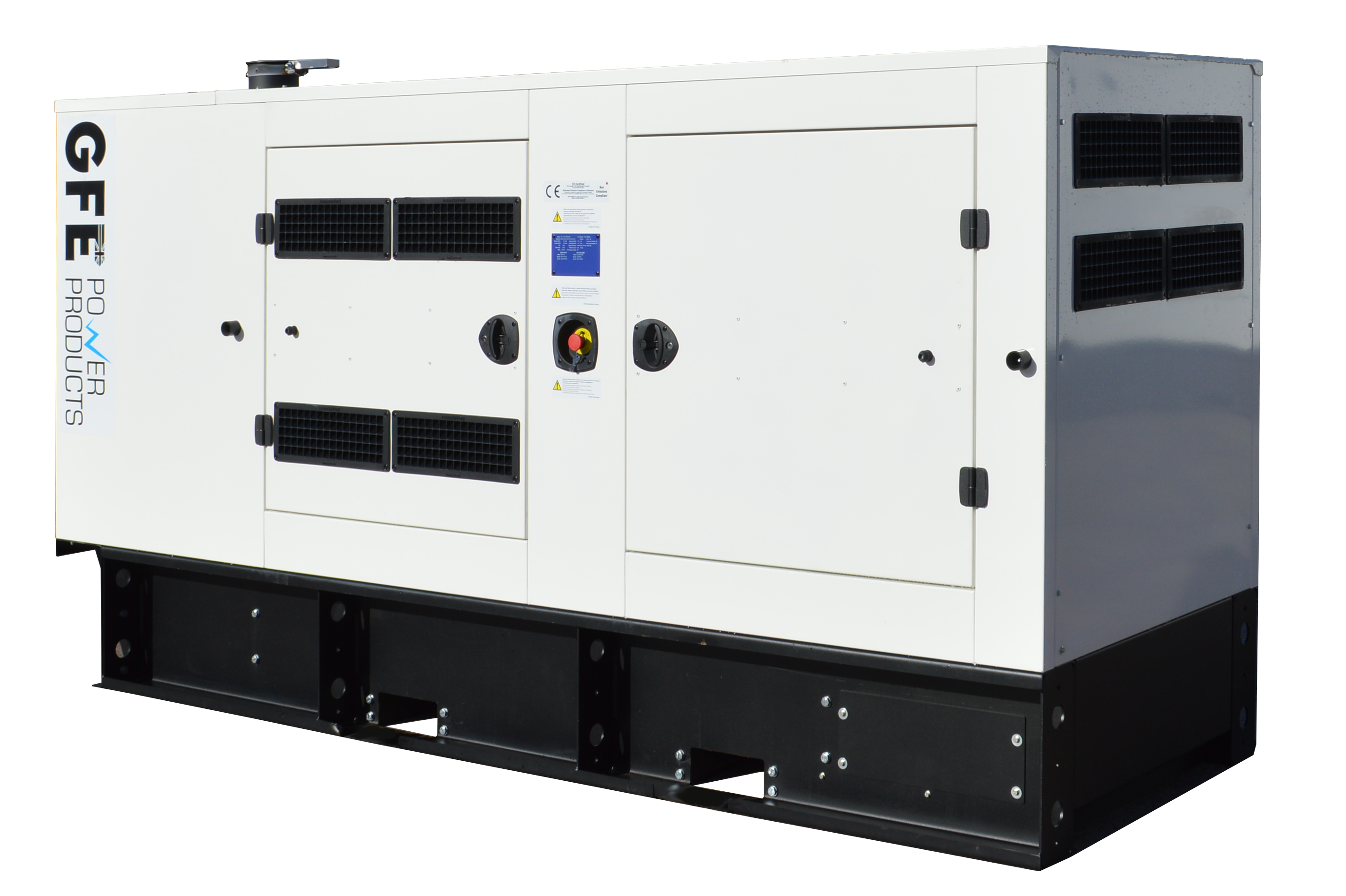

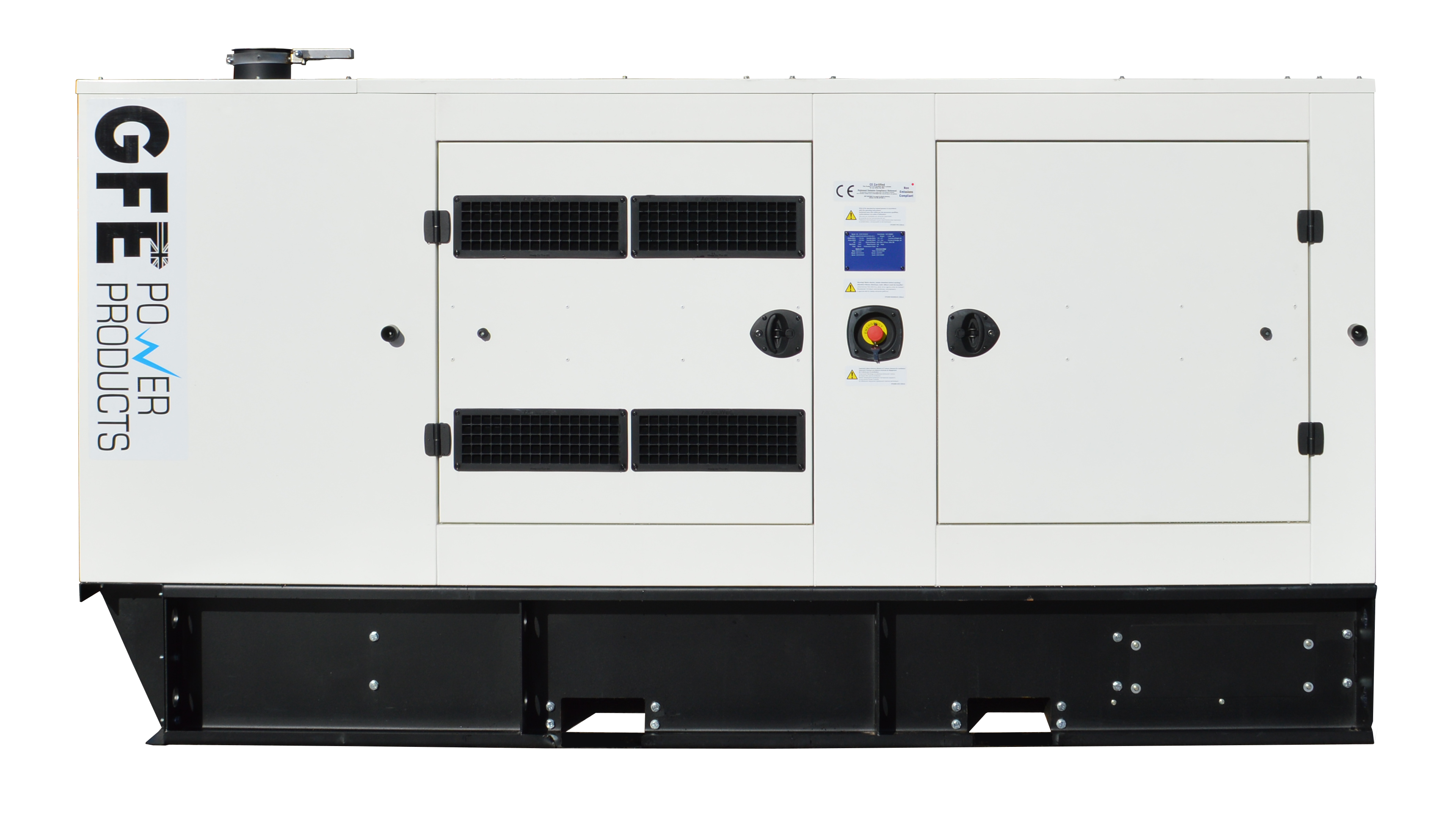

Baudouin 98kVA Diesel Generator - GFE110BSC

GFE Baudouin Powered diesel generators: our most cost effective GFE Powered diesel range perfect for standby application or export customers. Baudouin Diesel Engines are fitted with well-known alternator brands and Deepsea control panels are fitted as standard. This range is ideal when price is a key factor without compromising on quality. Our breadth of stock means that whether your focus is on economy, emissions and/or speed of delivery we have the right power solution for you.

Model reference	GFE110BLC (Canopied)
Engine	Baudouin 4M10G6D0/S
Alternator	Leroy Somer
Control panel	Deepsea DSE7320
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	78	98
Standby Power (ERP)	87	109

Voltage	400/230V
Rated current
Fuel consumption	@100% load L/h 21.3

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(W x L x H) mm	kg	Litres
Canopied	2425.5 x 1104 x 1620	1537	210

Datasheets

GFE110BSC	Engine	Alternator
