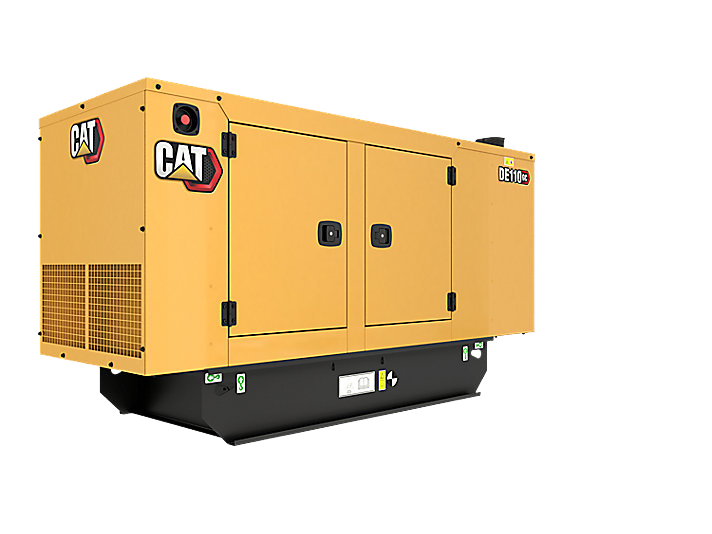

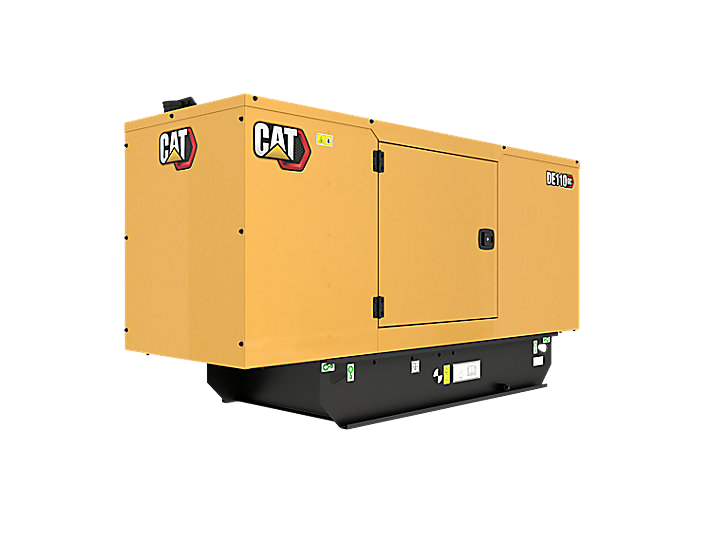

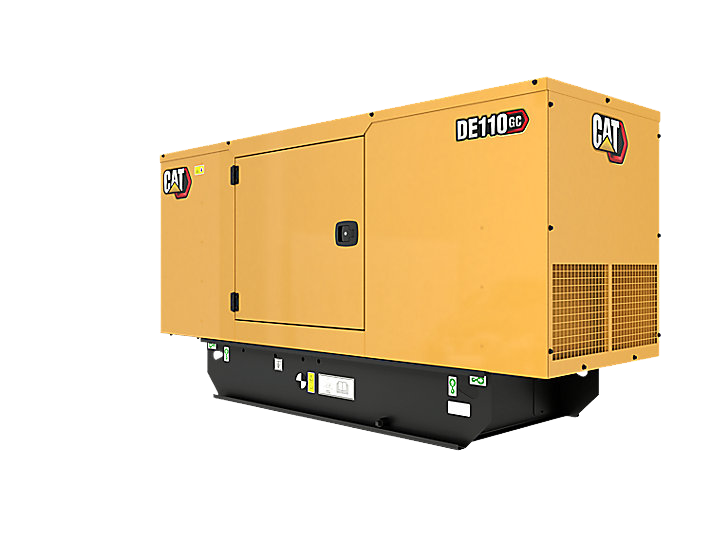

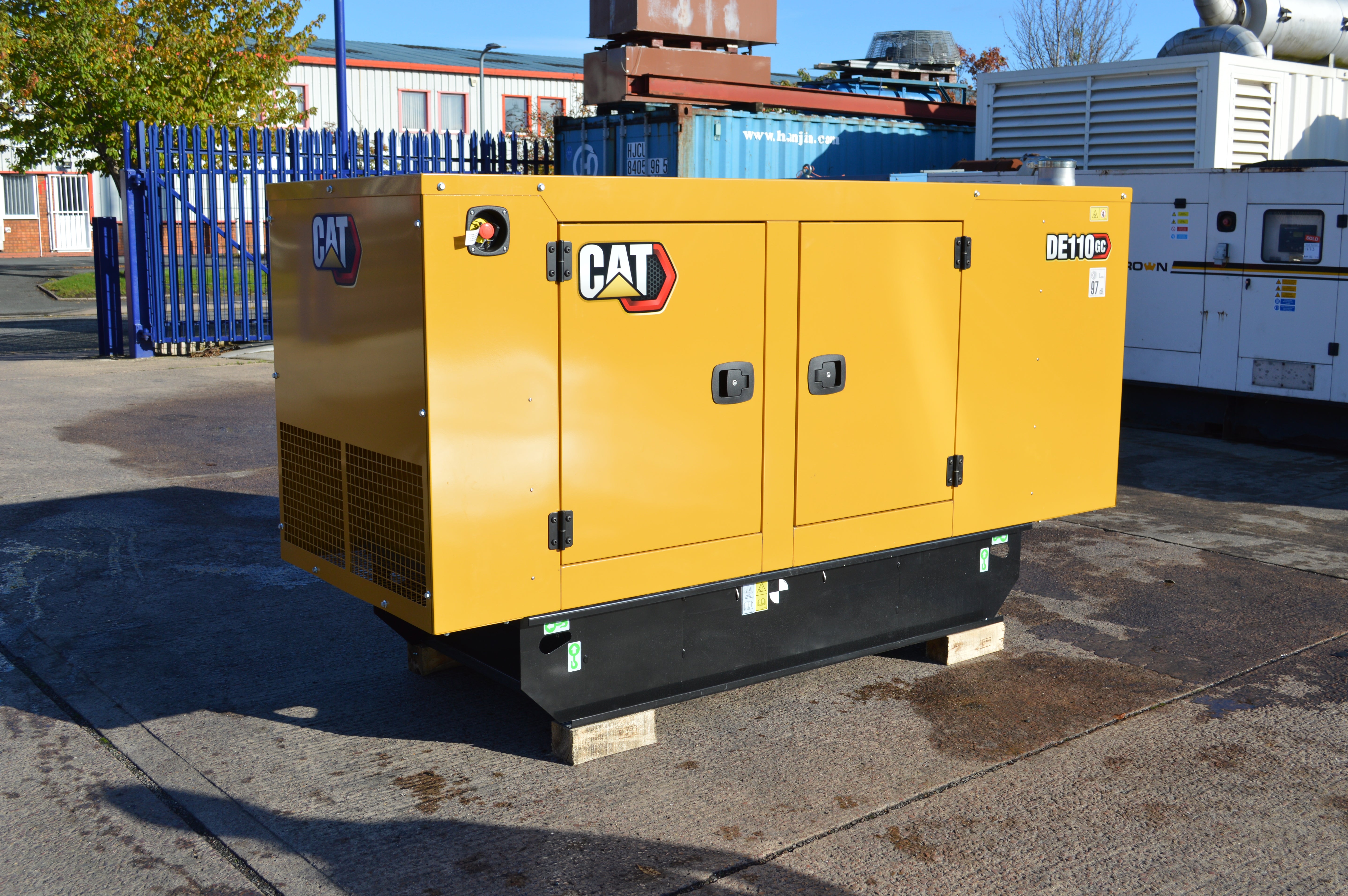

Cat® 110kVA Diesel Generator - DE110GC

Producing 110 kVA of reliable power at 50 Hz, the CAT DE110GC diesel generator set is designed to ISO 8528-5 transient response requirements.

Model reference DE110GC
Engine Cat® C4.4 Inline 4-stroke Diesel
Frequency 50Hz


Standby (50Hz)
Genset power rating 110 kVA
Genset power rating with fan @ 0.8 power factor 88 kW

Rated current 158.8 Amps


Overall dimensions

Frame type Dimensions Weight

(L x W x H) mm kg
Canopied 2745 x 999 x 1476 1330


 DE110GC Sound Attenuated Enclosures


The Caterpillar DE110GC diesel generator is a reliable power solution designed for backup electrical power applications. It is housed within a sound attenuated enclosed canopy, which means it is equipped with a specialised casing that helps reduce noise levels during operation. This feature is particularly beneficial in noise-sensitive environments or areas where noise pollution needs to be minimized.


The CAT DE110GC gen set is powered by a diesel engine, which offers several advantages over other types of fuel. Diesel engines are known for their durability, efficiency, and long service life. They are also capable of providing high torque and reliable performance under heavy loads, making them suitable for demanding power requirements. The DE110GC also meets ISO 8528-5 transient response requirements, ensuring stable and responsive power supply even under changing load conditions.
