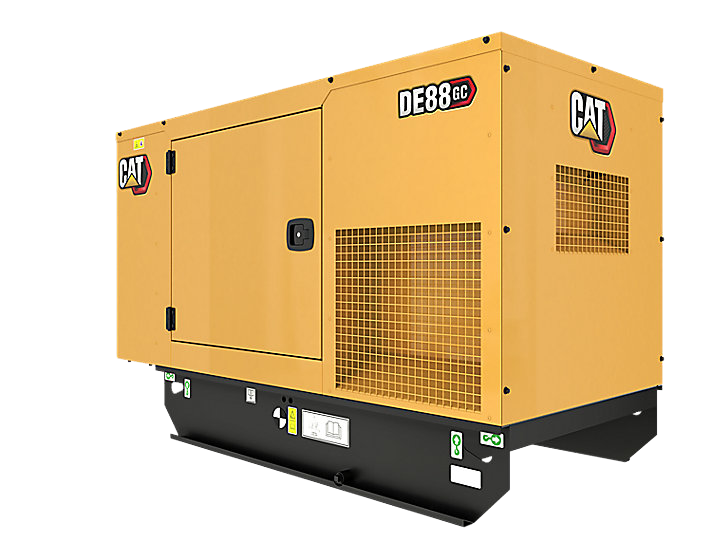

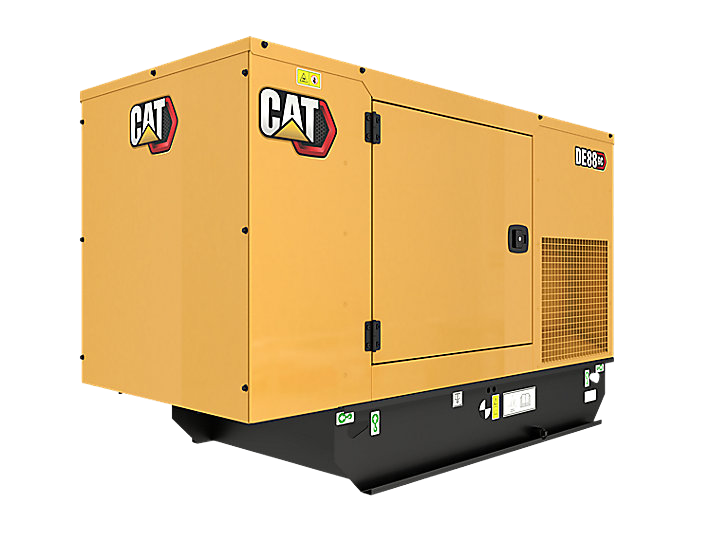

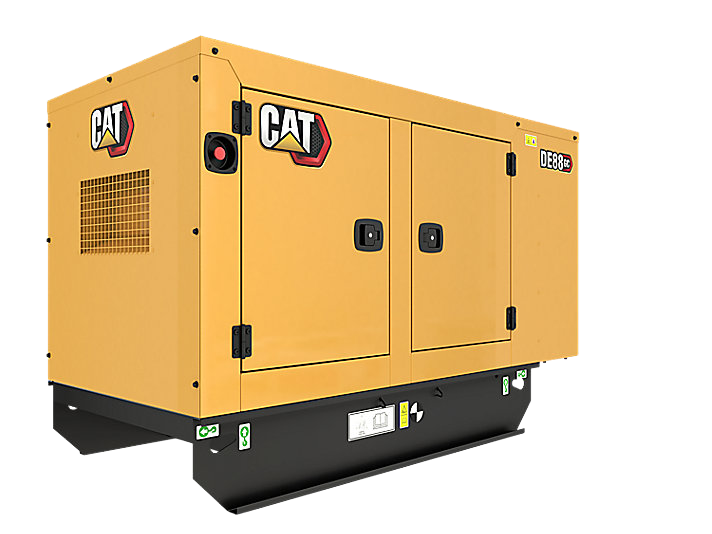

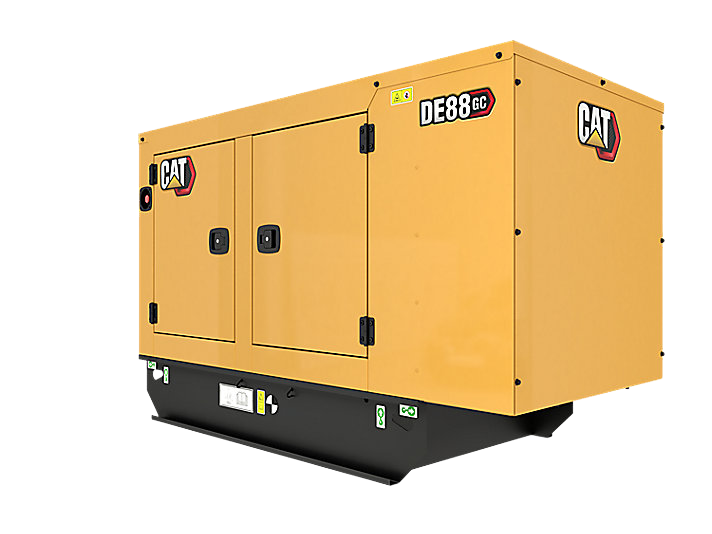

Cat® 88kVA Diesel Generator - DE88GC

The CAT DE88GC produces 88 kVA of reliable power at 50 Hz. The DE88GC diesel generator sets are designed to ISO 8528-5 transient response requirements and are housed within a purpose built canopy.

Model reference	DE88GC
Engine	Cat® C4.4 Inline 4-stroke Diesel
Frequency	50Hz

Ratings

	Standby (50Hz)
Genset power rating	88 kVA
Genset power rating with fan @ 0.8 power factor	70.4 kW

Voltage	400V
Rated current	127 Amps

Overall dimensions

Frame type	Dimensions	Weight
	(L x W x H) mm	kg
Canopied	2275 x 1099 x 1465	1245

Datasheets

DE88GC	Sound Attenuated Enclosures

The Caterpillar DE88GC generator's sound attenuated enclosed canopy further enhances the overall performance and usability of the generator. By reducing noise levels, it helps maintain a quieter environment, which can be important in residential areas, hospitals, or other locations where noise pollution needs to be controlled. The canopy also provides protection against external elements, such as weather conditions or physical damage, extending the lifespan of the generator.
