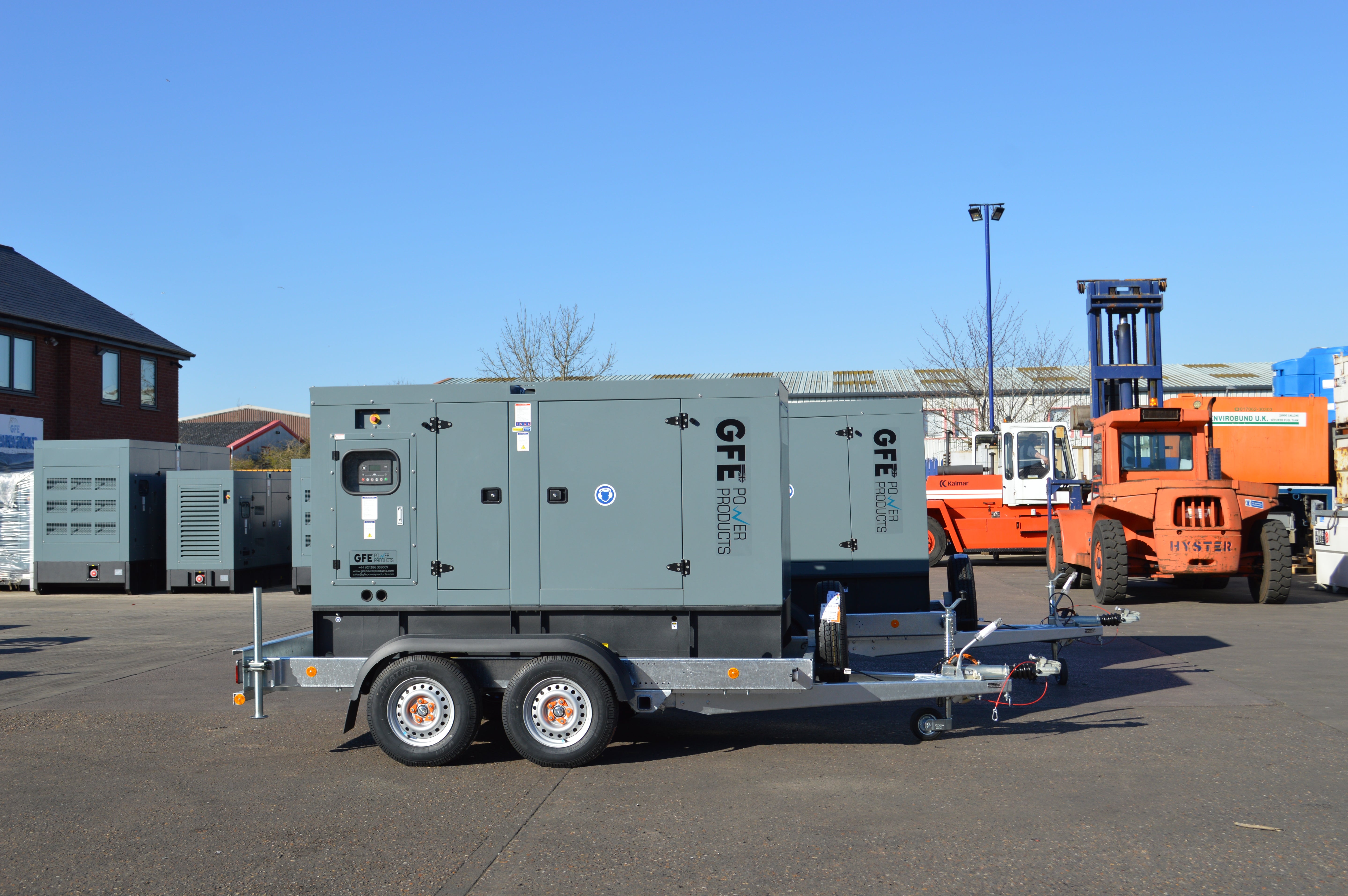

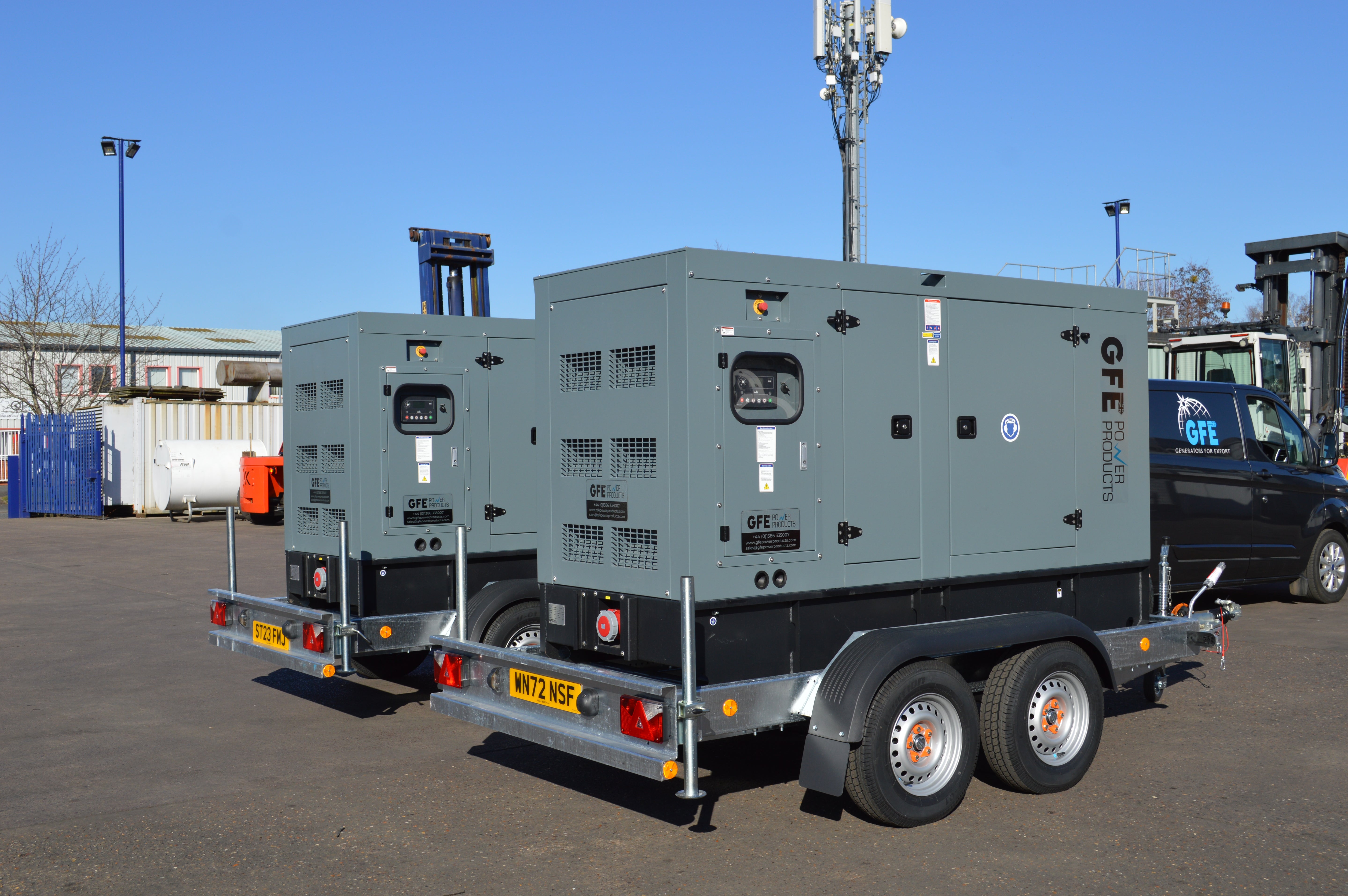

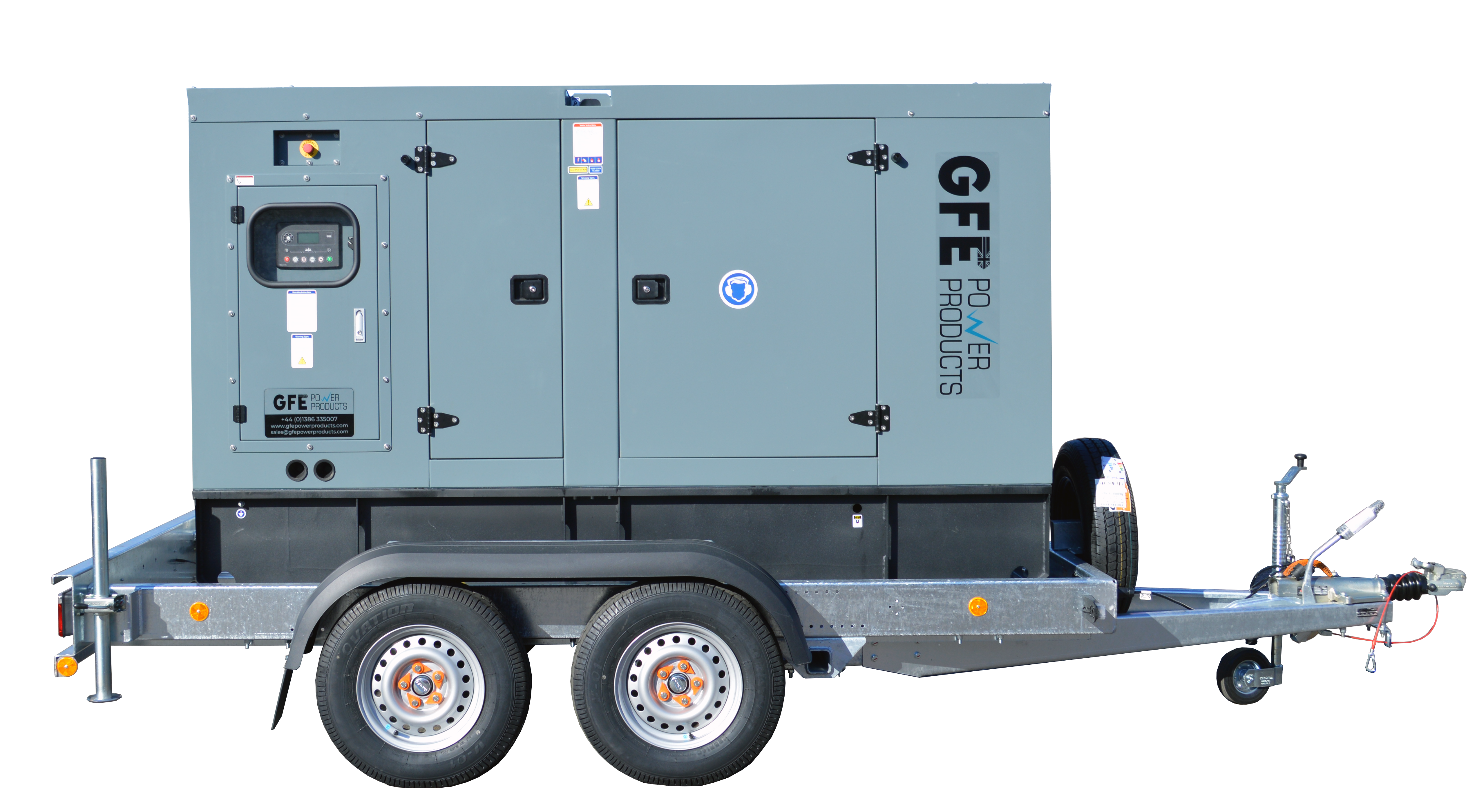

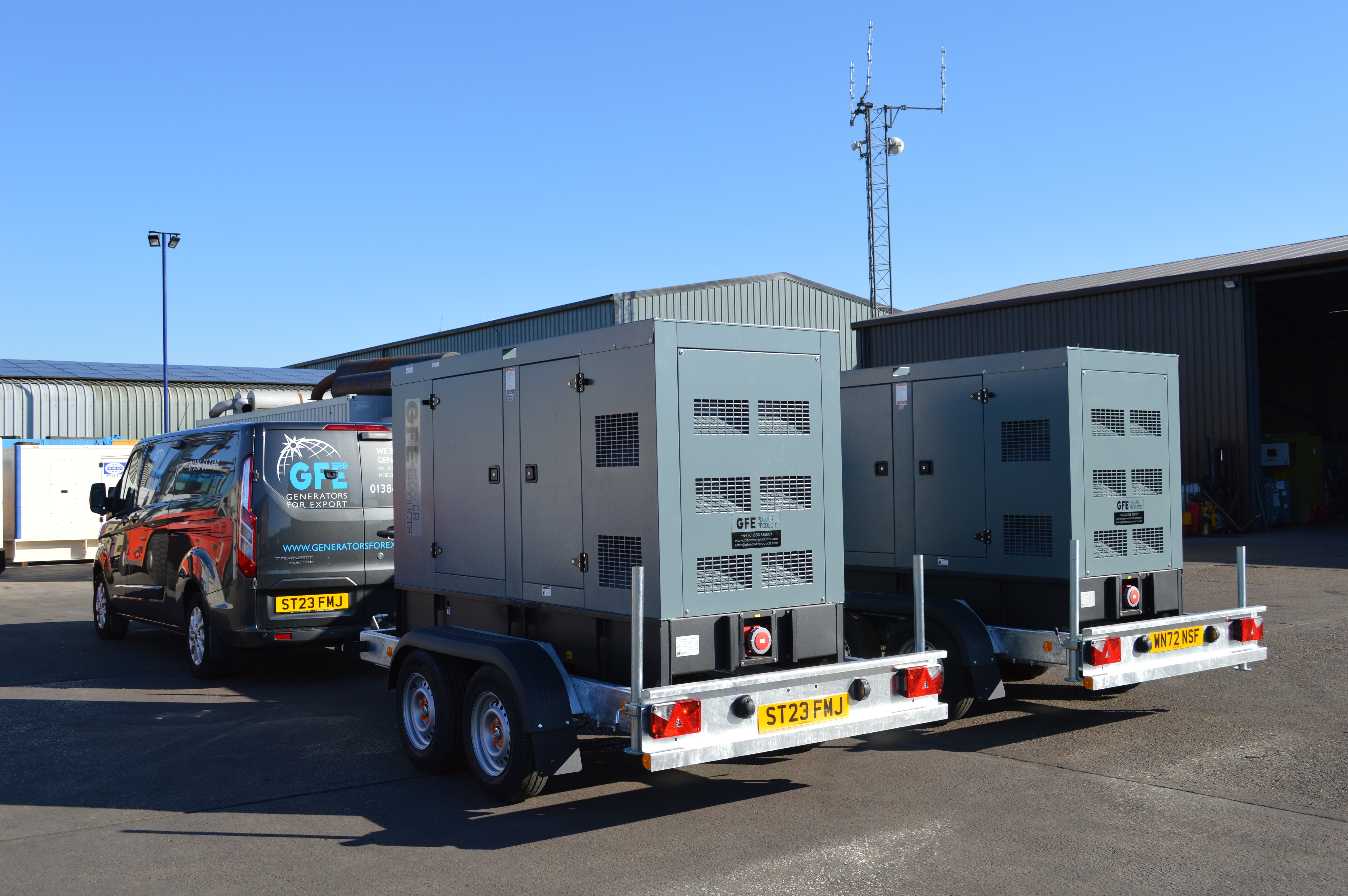

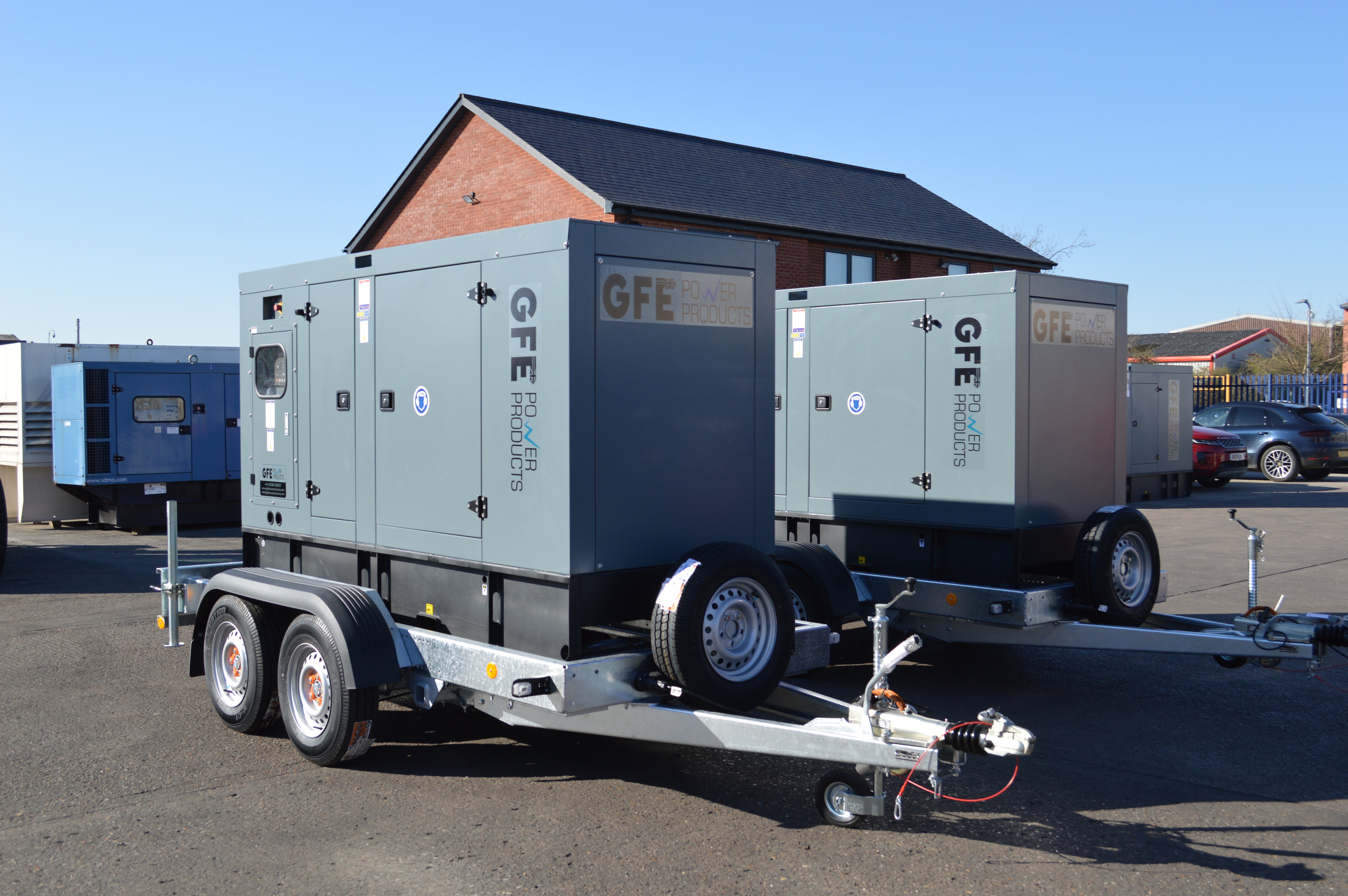

Cummins 100kVA Diesel Generator - GFE110CSC Trailerised
The GFE110CSC is a high-performance 100kVA Cummins Powered diesel generator, professionally mounted on a robust road-tow trailer for maximum mobility and convenience. Housed in a durable acoustic canopy, this generator is built to perform in demanding conditions while keeping noise levels to a minimum.
Designed for customers who need reliable power on the move, the trailer mounted GFE110CSC offers the same dependable performance as its static counterpart, now with the added benefit of rapid deployment and easy relocation. Whether it’s for construction sites, events, temporary facilities, or emergency backup, this trailerised unit makes getting power where you need it simple.
Important Note:
If you plan to tow your new generator on public highways, make sure to comply with your local government regulations. For example, UK law requires all trailerised generators used on public roads to meet Stage V (Tier 5) emissions standards. Please check with your local authority or ask our team for guidance.
| Model reference | GFE110CSC (Canopied/Trailered) |
| Engine | Cummins 6BT5.9-G1 |
| Alternator | Stamford |
| Control panel | Deepsea DSE6120 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 80 | 100 |
|
Standby Power (ERP) |
88 | 110 |
|
Voltage |
400V |
| Rated current | 144 Amps |
| Fuel consumption | @100% load L/h 21.7 |
| Noise Level | 76 dB(A) at 7m |
Overall dimensions of generator without trailer
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |
| Canopied | 2800 x 1100 x 1700 | 1745 | 200 |
Datasheets
| Generator: | Engine: | Alternator: |
| 100kVA GFE110CSC | Cummins 6BT5.9-G1 | Stamford UCI274C |
 |
|
|
